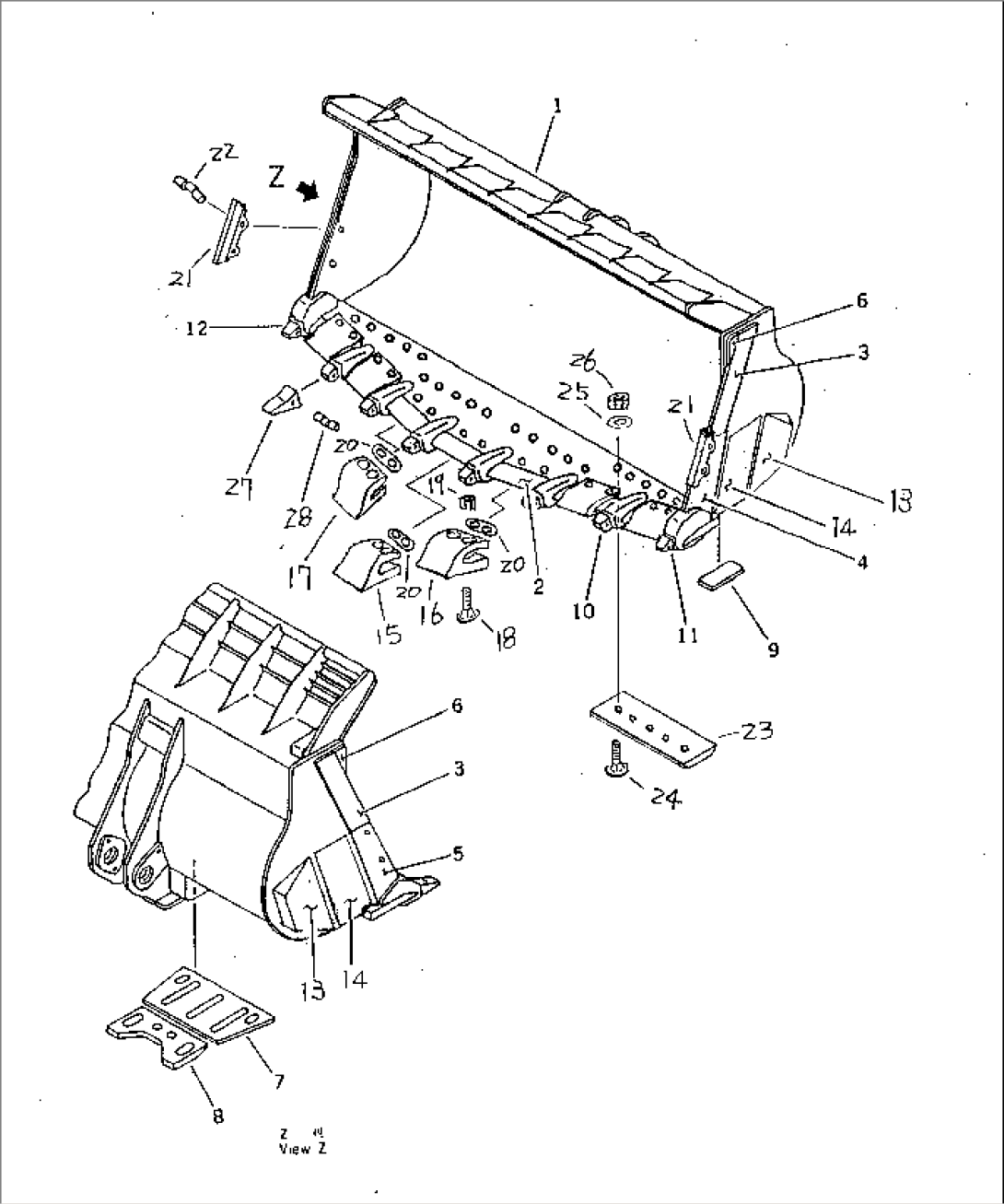

| Item | Part No. | Part Name | Qty | Serial No. |
| 428-V65-1101 | BUCKET ASS'Y | 10001- | ||
| 1 | 428-V65-1111 | BUCKET | 10001- | |
| 2 | 428-V65-1121 | EDGE (WELDED) | 10001- | |
| 3 | 428-V65-1130 | PLATE (WELDED) | 10001- | |
| 4 | 428-V65-1361 | PLATE,L.H. (WELDED) | 10001- | |
| 5 | 428-V65-1371 | PLATE,R.H. (WELDED) | 10001- | |
| 6 | 427-70-12232 | PLATE (WELDED) | 10001- | |
| 7 | 428-70-12243 | PLATE (WELDED) | 10001- | |
| 8 | 428-70-12250 | PLATE (WELDED) | 10001- | |
| 9 | 428-70-12262 | PLATE (WELDED) | 10001- | |
| 10 | 427-70-13743 | ADAPTER (WELDED) | 10001- | |
| 11 | 427-70-13754 | ADAPTER,L.H. (WELDED) | 10001- | |
| 12 | 427-70-13764 | ADAPTER,R.H. (WELDED) | 10001- | |
| 13 | 428-70-12211 | GUARD (WELDED) | 10001- | |
| 14 | 428-V65-1180 | PLATE (WELDED) | 10001- | |
| 15 | 428-70-13621 | GUARD | 10001- | |
| 16 | 428-70-13681 | GUARD,L.H. | 10001-. | |
| 17 | 428-70-13691 | GUARD,R.H. | 10001- | |
| 18 | 02091-12050 | BOLT | 10001- | |
| 19 | 02099-12031 | TOOTH | 10001- | |
| 20 | 427-70-13650 | PLATE, 1.0MM | 10001- | |
| 21 | 427-70-13610 | GUARD | 10001- | |
| 22 | 09244-12496 | PIN | 10001- | |
| 23 | 428-70-13630 | PLATE | 10001- | |
| 24 | 02091-12040 | BOLT | 10001- | |
| 25 | 01643-33380 | WASHER | 10001- | |
| 26 | 02290-12031 | NUT | 10001- | |
| 27 | 427-70-13731 | TOOTH | 10001- | |
| 28 | 427-70-13770 | PIN | 10001- |
