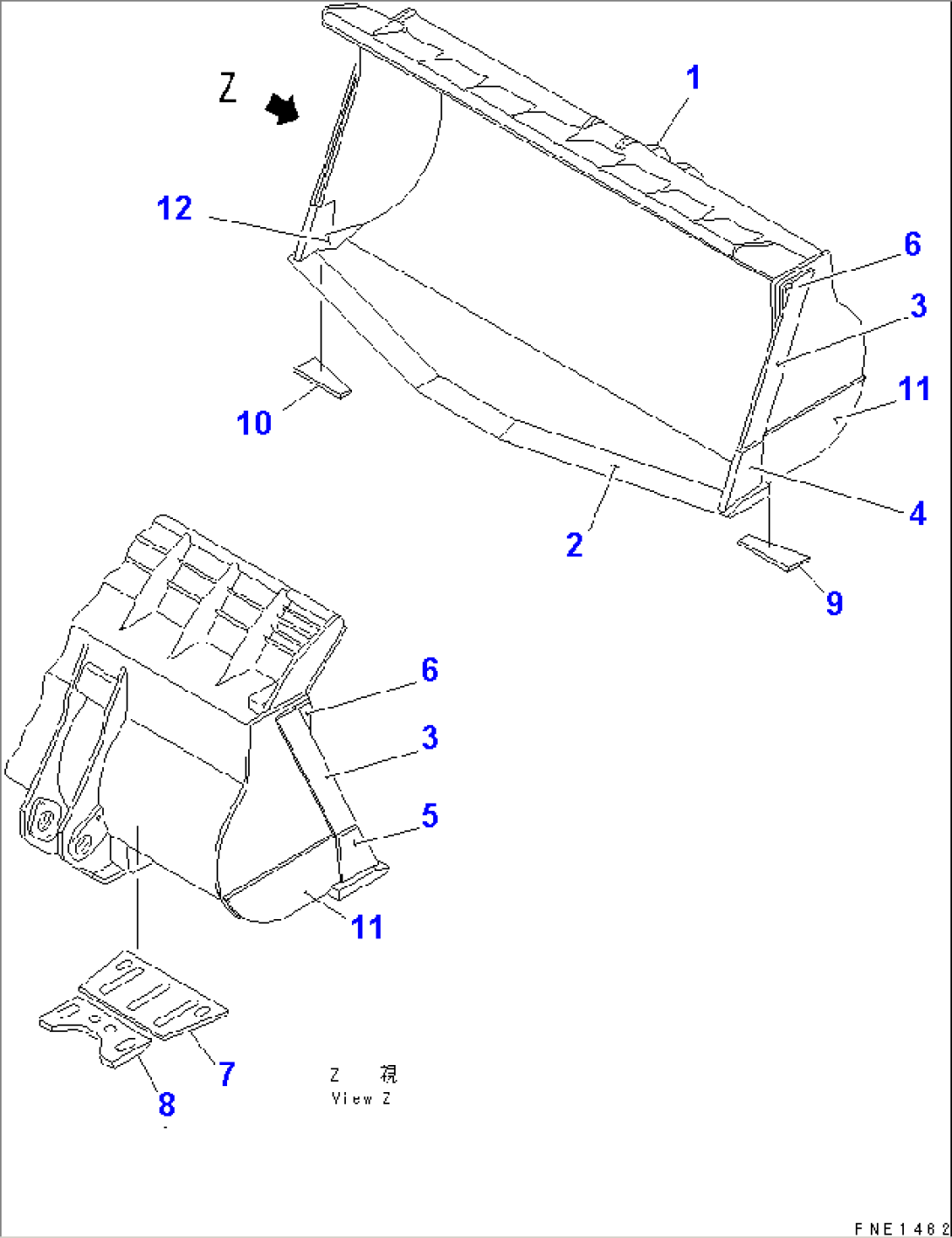

| Item | Part No. | Part Name | Qty | Serial No. |
| 428-809-1201 | BUCKET ASS'Y | 10001- | ||
| (\2\428-809-1200) | BUCKET ASS'Y | (10001-.) | ||
| 1 | 428-70-12113 | BUCKET | 10001- | |
| 1 | (\2\428-70-12112) | BUCKET | (10001-.) | |
| 2 | 428-70-12121 | EDGE (WELDED) | .- | |
| 2 | 428-70-12120 | EDGE (WELDED) | 10001-. | |
| 3 | 428-70-12132 | PLATE (WELDED) | 10001- | |
| 4 | 428-70-12151 | PLATE,L.H. (WELDED) | .- | |
| 4 | 428-70-12150 | PLATE,L.H. (WELDED) | 10001-. | |
| 5 | 428-70-12161 | PLATE,R.H. (WELDED) | .- | |
| 5 | 428-70-12160 | PLATE,R.H. (WELDED) | 10001-. | |
| 6 | 427-70-12232 | PLATE (WELDED) | 10001- | |
| 7 | 428-70-12243 | PLATE (WELDED) | 10001- | |
| 7 | (\2\428-70-12242) | PLATE (WELDED) | (10001-.) | |
| 8 | 428-70-12250 | PLATE (WELDED) | 10001- | |
| 9 | 428-70-12D70 | PLATE,L.H. (WELDED) | .- | |
| 9 | 428-70-12262 | PLATE,L.H. (WELDED) | 10001-. | |
| 10 | 428-70-12D80 | PLATE,R.H. (WELDED) | .- | |
| 10 | 428-70-12262 | PLATE,R.H. (WELDED) | 10001-. | |
| 11 | 428-819-1330 | PLATE (WELDED) | 10001- | |
| 12 | 426-809-1320 | GUSSET (WELDED) | 10001- |
