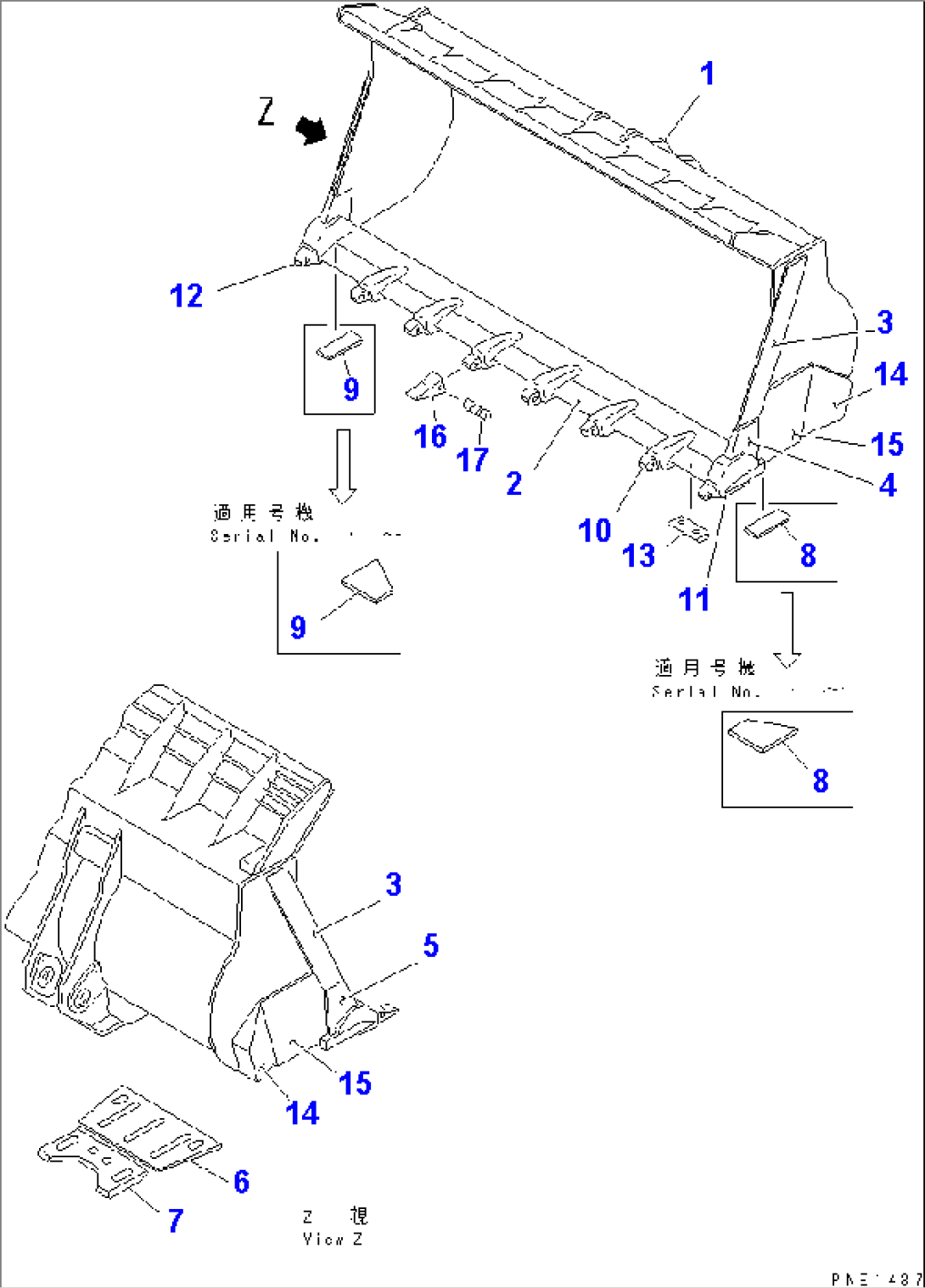

| Item | Part No. | Part Name | Qty | Serial No. |
| 428-816-1101 | BUCKET ASS'Y,(WITH TOOTH) | 10001- | ||
| (\2\428-816-1100) | BUCKET ASS'Y,(WITH TOOTH) | (10001-.) | ||
| 428-816-1311 | BUCKET ASS'Y | 10001- | ||
| (\2\428-816-1310) | BUCKET ASS'Y | (10001-.) | ||
| 1 | 428-806-1111 | BUCKET | .- | |
| 428-806-1110 | BUCKET | 10001-. | ||
| 2 | 428-806-1121 | EDGE (WELDED) | .- | |
| 428-806-1120 | EDGE (WELDED) | 10001-. | ||
| 3 | 428-70-12132 | PLATE (WELDED) | 10001- | |
| 4 | 428-70-12151 | PLATE,L.H. (WELDED) | .- | |
| 428-70-12150 | PLATE,L.H. (WELDED) | 10001-. | ||
| 5 | 428-70-12161 | PLATE,R.H. (WELDED) | .- | |
| 428-70-12160 | PLATE,R.H. (WELDED) | 10001-. | ||
| 6 | 428-70-12243 | PLATE (WELDED) | .- | |
| 428-70-12242 | PLATE (WELDED) | 10001-. | ||
| 7 | 428-70-12250 | PLATE (WELDED) | 10001- | |
| 8 | 428-70-12D70 | PLATE,L.H. (WELDED) | .- | |
| 428-70-12262 | PLATE (WELDED) | 10001-. | ||
| 9 | 428-70-12D80 | PLATE,R.H. (WELDED) | .- | |
| 428-70-12262 | PLATE (WELDED) | 10001-. | ||
| 10 | 427-70-13743 | ADAPTER (WELDED) | .- | |
| 427-70-13742 | ADAPTER (WELDED) | 10001-. | ||
| 11 | 427-70-13754 | ADAPTER,L.H. (WELDED) | .- | |
| 427-70-13753 | ADAPTER,L.H. (WELDED) | 10001-. | ||
| 12 | 427-70-13764 | ADAPTER,R.H. (WELDED) | .- | |
| 427-70-13763 | ADAPTER,R.H. (WELDED) | 10001-. | ||
| 13 | 428-70-12411 | PLATE (WELDED) | 10001- | |
| 14 | 428-70-12211 | GUARD (WELDED) | 10001- | |
| 15 | 428-806-1180 | PLATE (WELDED) | 10001- | |
| 16 | 427-70-13731 | TOOTH | 10001- | |
| 17 | 427-70-13770 | PIN | 10001- |
