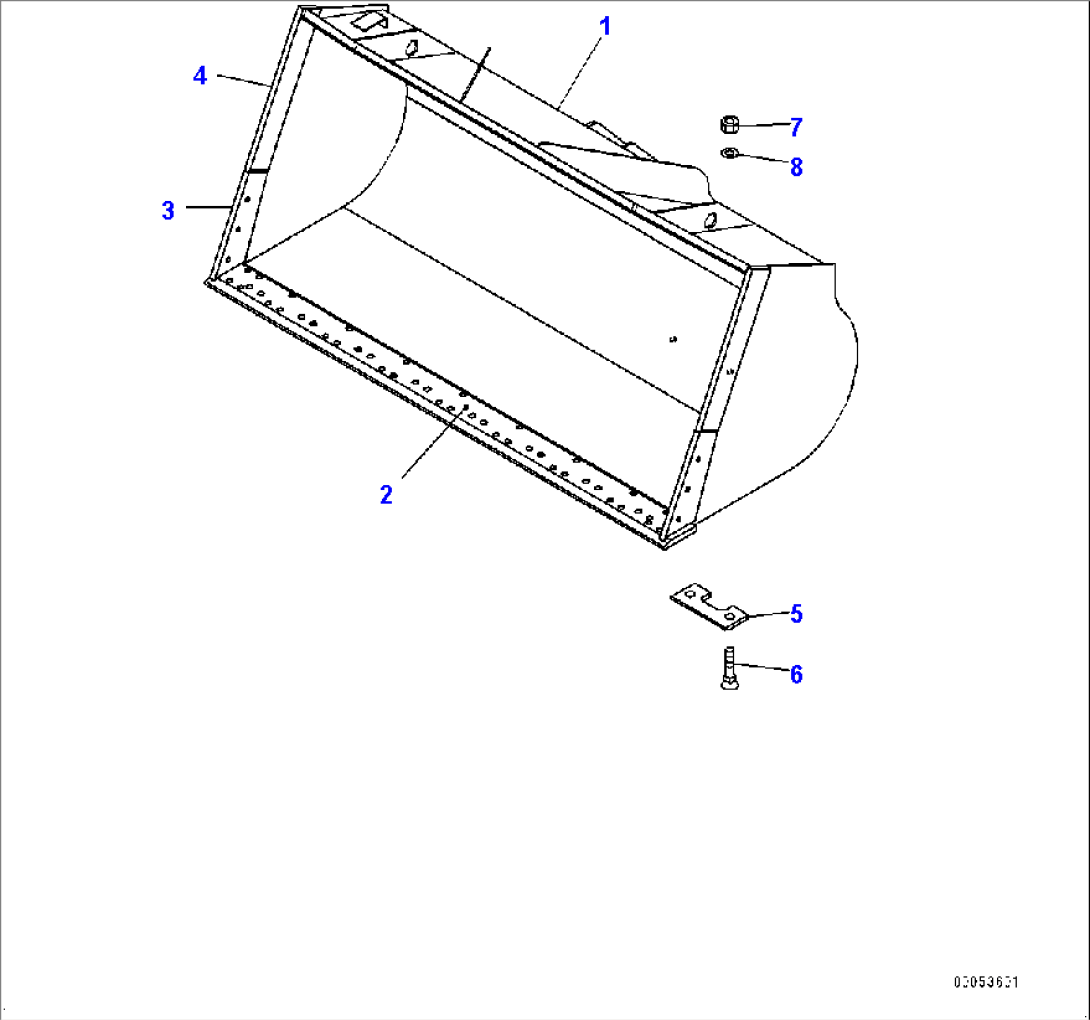

| Item | Part No. | Part Name | Qty | Serial No. |
| 421-70-42900 | Bucket Assembly | 90216- | ||
| 1 | Bucket | 90216- | ||
| 2 | 421-70-32920 | Edge, Welded | 90216- | |
| 3 | 421-70-32931 | Plate, Welded | 90216- | |
| 4 | 421-70-32940 | Plate, Welded | 90216- | |
| 5 | 421-70-22140 | Plate | 90216- | |
| 6 | 02090-11685 | Bolt | 90216- | |
| 7 | 02290-11625 | Nut | 90216- | |
| 8 | 01643-22460 | Washer | 90216- |
