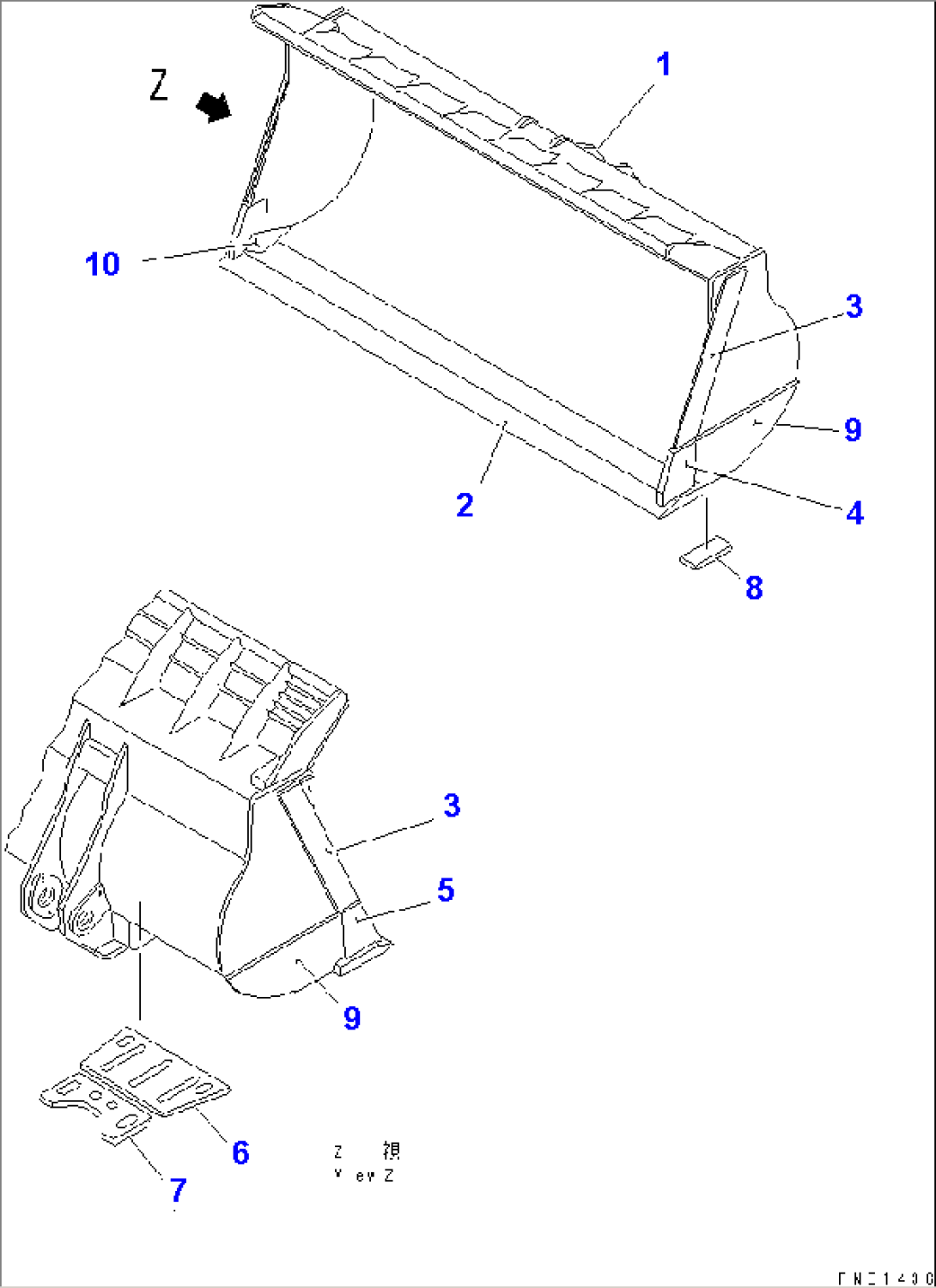

| Item | Part No. | Part Name | Qty | Serial No. |
| 428-800-1101 | BUCKET ASS'Y | 10001- | ||
| (\2\428-800-1100) | BUCKET ASS'Y | (10001-.) | ||
| 1 | 428-800-1111 | BUCKET | 10001- | |
| (\2\428-800-1110) | BUCKET | (10001-.) | ||
| 2 | 428-806-1121 | EDGE (WELDED) | .- | |
| 428-806-1120 | EDGE (WELDED) | 10001-. | ||
| 3 | 428-70-12132 | PLATE (WELDED) | 10001- | |
| 4 | 428-70-12151 | PLATE,L.H. (WELDED) | .- | |
| 428-70-12150 | PLATE,L.H. (WELDED) | 10001-. | ||
| 5 | 428-70-12161 | PLATE,R.H. (WELDED) | .- | |
| 428-70-12160 | PLATE,R.H. (WELDED) | 10001-. | ||
| 6 | 428-70-12243 | PLATE (WELDED) | .- | |
| 428-70-12242 | PLATE (WELDED) | 10001-. | ||
| 7 | 428-70-12250 | PLATE (WELDED) | 10001- | |
| 8 | 428-800-1260 | PLATE (WELDED) | 10001- | |
| 9 | 428-800-1180 | PLATE (WELDED) | 10001- | |
| 10 | 426-809-1320 | GUSSET (WELDED) | 10001- |
