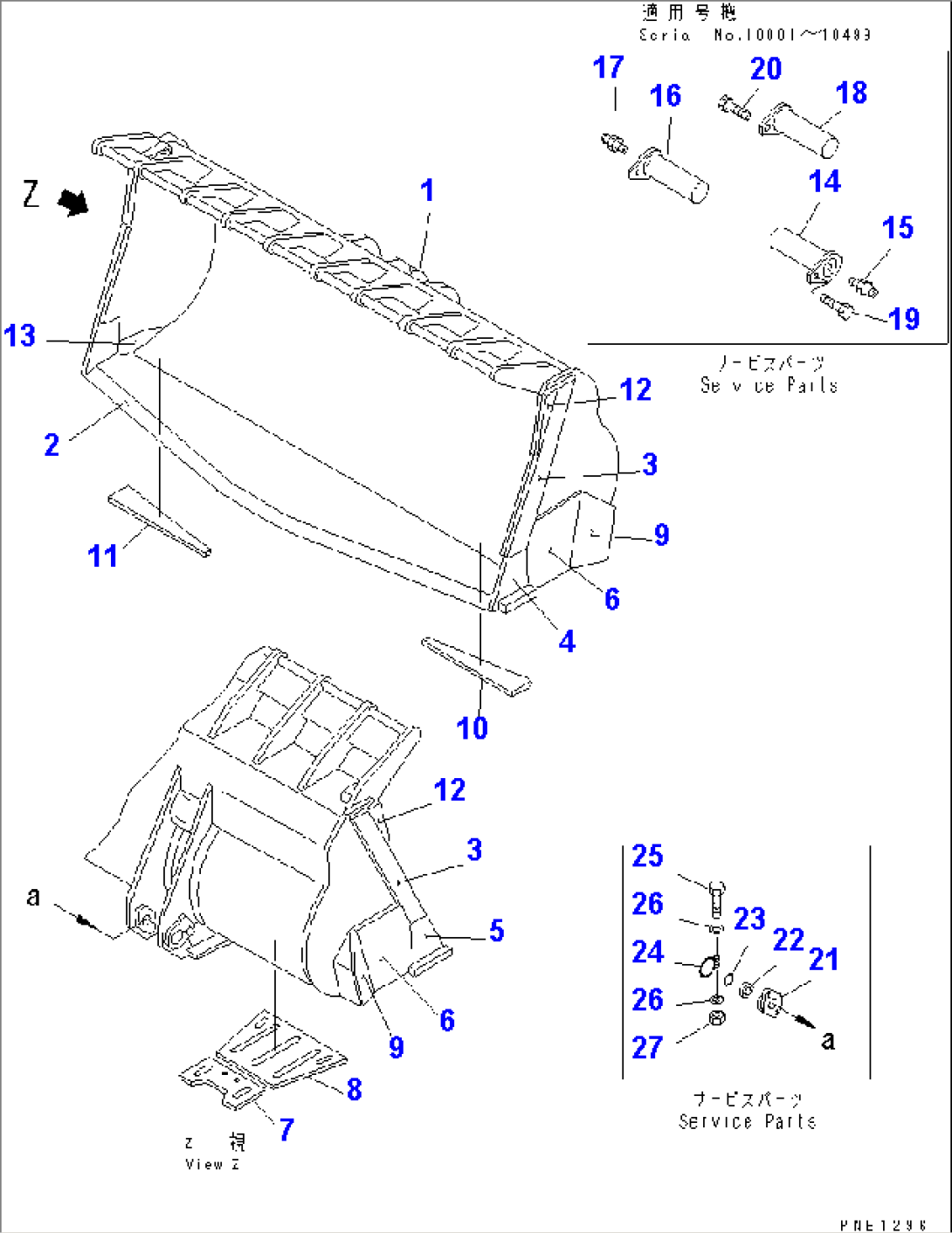

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-V75-1110 | BUCKET ASS'Y | 10001-10499 | ||
| 1 | 427-831-1621 | BUCKET | 10001-10499 | |
| 2 | 427-70-12124 | EDGE (WELDED) | 10001-10499 | |
| 3 | 427-831-1132 | PLATE (WELDED) | 10001-10499 | |
| 4 | 427-70-12151 | PLATE,L.H. (WELDED) | 10001-10499 | |
| 5 | 427-70-12161 | PLATE,R.H. (WELDED) | 10001-10499 | |
| 6 | 427-831-1530 | PLATE (WELDED) | 10001-10499 | |
| 7 | 427-819-1250 | PLATE (WELDED) | 10001-10499 | |
| 8 | 427-831-1540 | PLATE (WELDED) | 10001-10499 | |
| 9 | 427-819-1270 | GUARD (WELDED) | 10001-10499 | |
| 10 | 427-831-1560 | PLATE,L.H. (WELDED) | 10001-10499 | |
| 11 | 427-831-1550 | PLATE,R.H. (WELDED) | 10001-10499 | |
| 12 | 427-831-1510 | PLATE (WELDED) | 10001-10499 | |
| 13 | 426-809-1320 | GUSSET (WELDED) | 10001-10499 | |
| SERVICE PARTS | ||||
| 14 | 427-853-1130 | PIN,GREASE, L.H. (L=529MM) | 10001-10499 | |
| 15 | 07020-00000 | FITTING,GREASE | 10001-10499 | |
| 16 | 427-853-1140 | PIN,GREASE, R.H. (L=529MM) | 10001-10499 | |
| 17 | 07020-00000 | FITTING,GREASE | 10001-10499 | |
| 18 | 427-70-11610 | PIN,GREASE (L=529MM) | 10001-10499 | |
| 19 | 01011-82445 | BOLT | 10001-10499 | |
| 20 | 01011-82455 | BOLT | 10001-10499 | |
| 21 | 427-70-11362 | FLANGE | 10001-10499 | |
| 22 | 427-09-11140 | SEAL,DUST | 10001-10499 | |
| 23 | 07000-05160 | O-RING | 10001-10499 | |
| 24 | 427-70-11250 | O-RING | 10001-10499 | |
| 25 | 426-09-11150 | BOLT | 10001-10499 | |
| 26 | 01641-20608 | WASHER | 10001-10499 | |
| 27 | 426-09-11130 | NUT | 10001-10499 |
