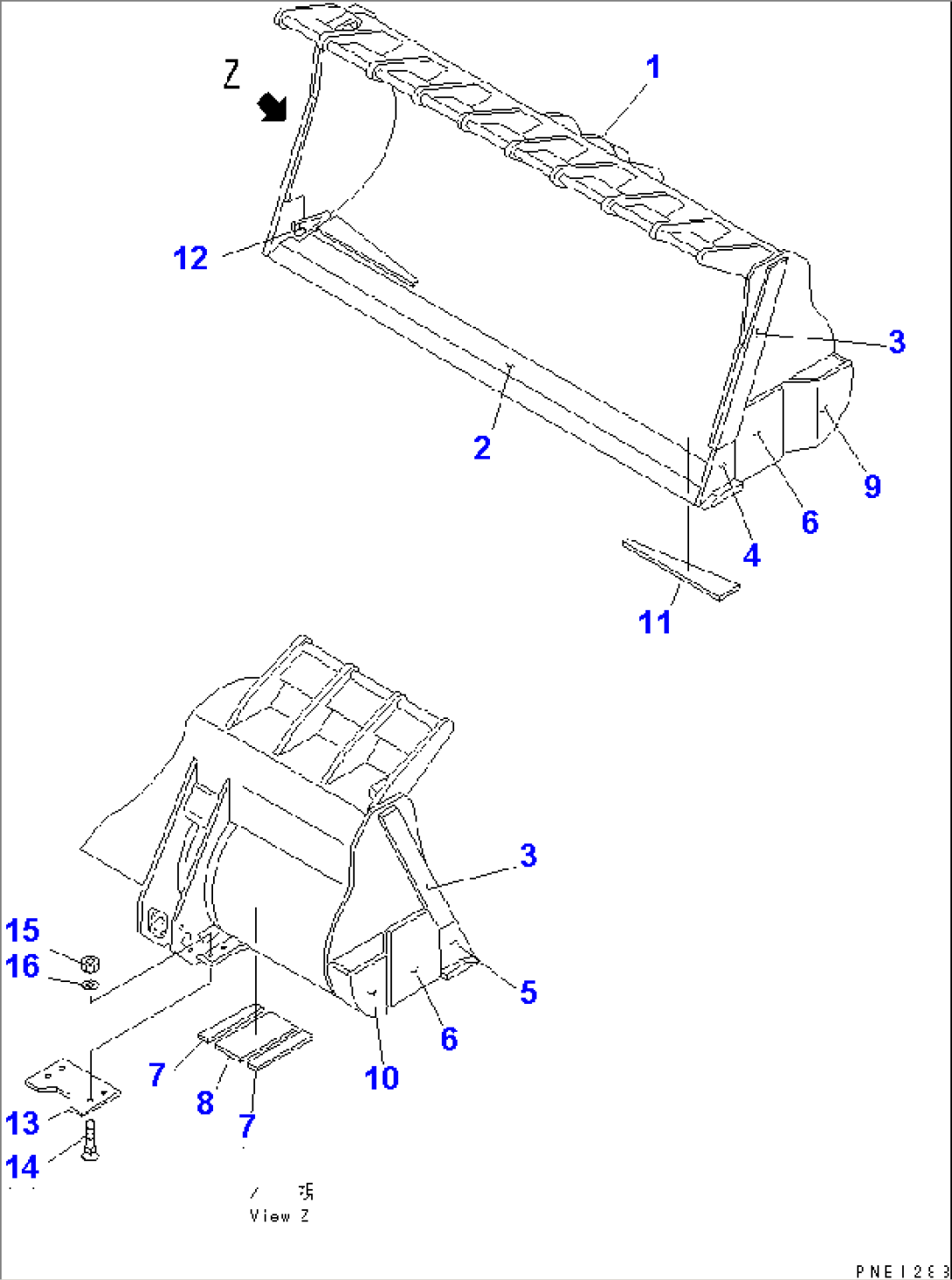

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-V60-1101 | BUCKET ASS'Y | .-10499 | ||
| \0\427-V60-1100 | BUCKET ASS'Y | 10001-. | ||
| 1 | 427-V60-1111 | BUCKET | .-10499 | |
| \0\427-V60-1110 | BUCKET | 10001-. | ||
| 2 | 427-806-1121 | EDGE (WELDED) | 10001-10499 | |
| 3 | 427-831-1131 | PLATE (WELDED) | 10001-10499 | |
| 4 | 427-70-12151 | PLATE,L.H. (WELDED) | 10001-10499 | |
| 5 | 427-70-12161 | PLATE,R.H. (WELDED) | 10001-10499 | |
| 6 | 427-V60-1230 | PLATE (WELDED) | 10001-10499 | |
| 7 | 427-70-12330 | PLATE (WELDED) | 10001-10499 | |
| 8 | 427-70-12350 | PLATE (WELDED) | 10001-10499 | |
| 9 | 427-70-12213 | GUARD,L.H. (WELDED) | 10001-10499 | |
| 10 | 427-70-12223 | GUARD,R.H. (WELDED) | 10001-10499 | |
| 11 | 427-70-12360 | PLATE (WELDED) | 10001-10499 | |
| 12 | 426-809-1320 | GUSSET (WELDED) | 10001-10499 | |
| 13 | 427-70-12142 | PLATE,WEAR | 10001-10499 | |
| 14 | 02090-11695 | BOLT | 10001-10499 | |
| 15 | 09218-12523 | NUT | 10001-10499 | |
| 16 | 01643-22460 | WASHER | 10001-10499 |
