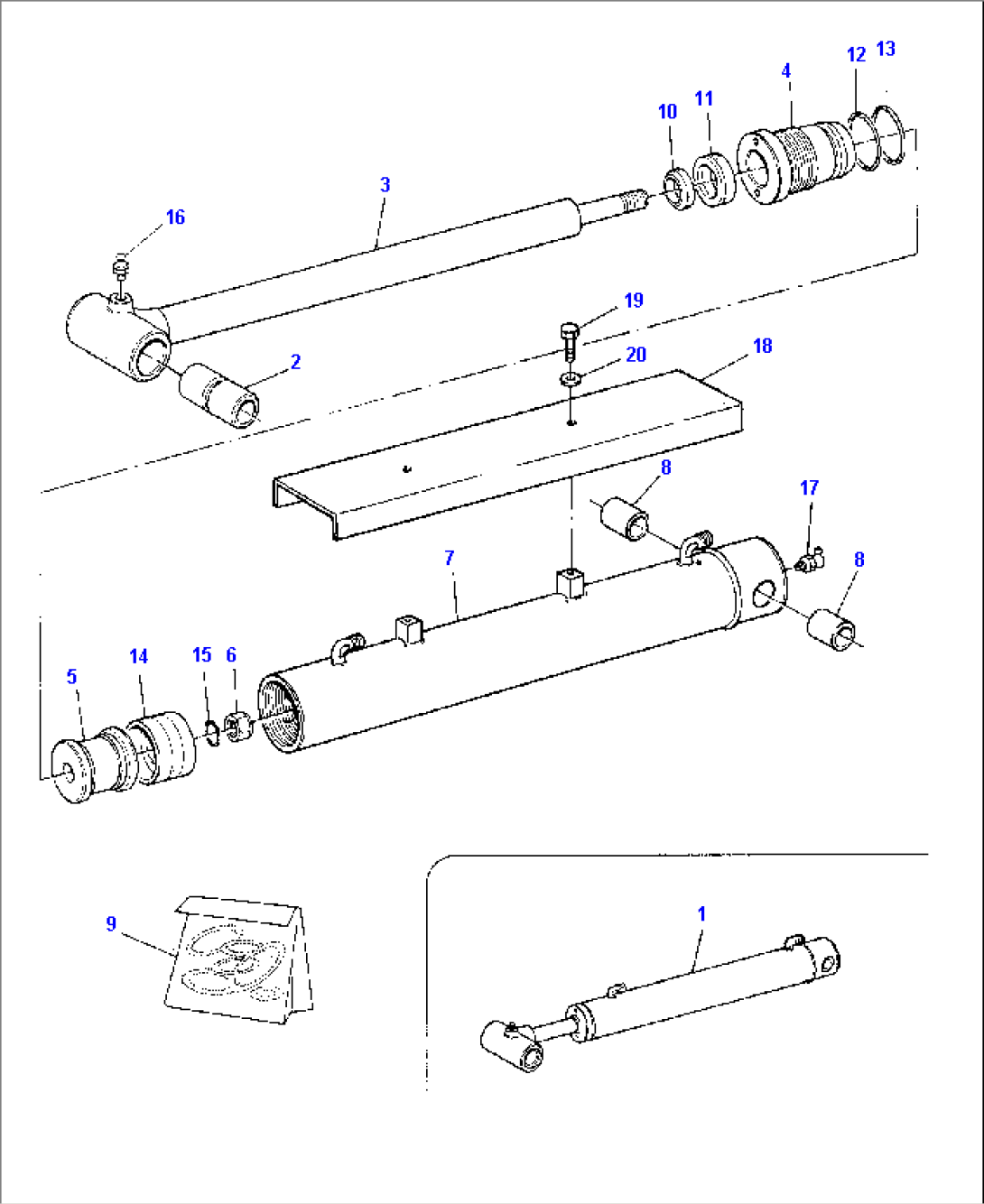

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | UE2511034 | CYLINDER, ASSY. | 6335- | |
| 2 | UE2510808 | BUSHING | 6335- | |
| 3 | UE2511036 | PISTON ROD | 6335- | |
| 4 | UE2511038 | CAP | 6335- | |
| 5 | UE2511037 | PISTON | 6335- | |
| 6 | UE9104122 | NUT | 6335- | |
| 7 | UE2511035 | CYLINDER | 6335- | |
| 8 | UE2300064 | BUSHING | 6335- | |
| 9 | UE2511039 | KIT, GASKET | 6335- | |
| 10 | \6\ | GASKET | 6335- | |
| 11 | \6\ | GASKET | 6335- | |
| 12 | \6\ | O-RING | 6335- | |
| 13 | \6\ | RING, WEAR | 6335- | |
| 14 | \6\ | GASKET | 6335- | |
| 15 | \6\ | O-RING | 6335- | |
| 16 | 860010007 | FITTING | 6335- | |
| 17 | 860030004 | FITTING | 6335- | |
| 18 | UE2700453 | PROTECTION | 6335- | |
| 19 | UE9000138 | SCREW | 6335- | |
| 20 | UE9111068 | WASHER | 6335- |
