| Item | Part No. | Part Name | Qty | Serial No. |

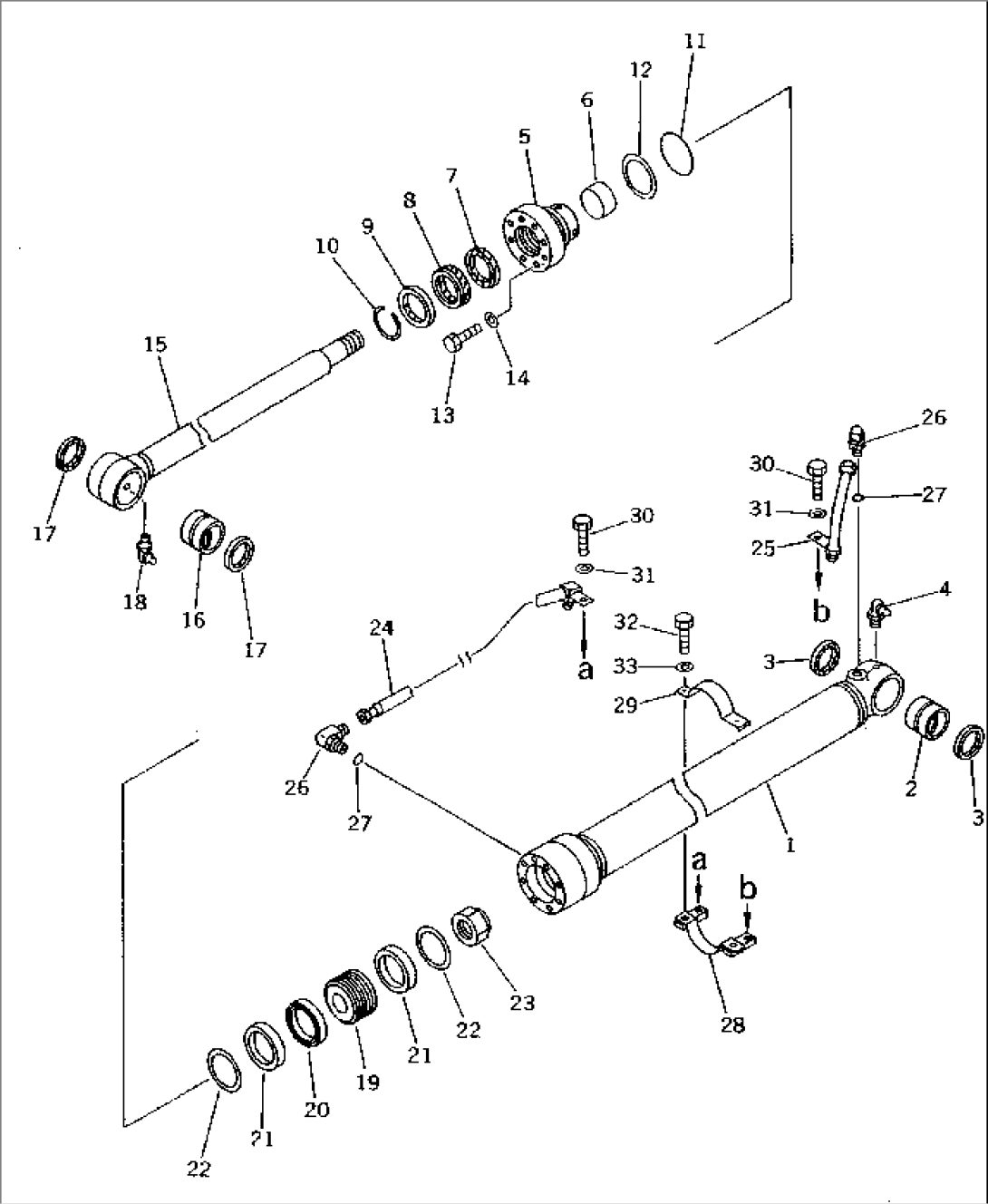

| 20X-63-02220 | CYLINDER ASS'Y \ | 1001- | ||
| 1 | 20X-63-74140 | CYLINDER | 1001- | |
| 2 | 707-76-60080 | BUSHING | 1001- | |
| 3 | 07145-00060 | SEAL,DUST (KIT) | 1001- | |
| 4 | 07020-00675 | FITTING,GREASE | 1001- | |
| 5 | 707-27-90610 | HEAD,CYLINDER | 1001- | |
| 6 | 707-52-90300 | BUSHING | 1001- | |
| 7 | 707-51-55630 | RING,BUFFER (KIT) | 1001- | |
| 8 | 707-51-55030 | PACKING (KIT) | 1001- | |
| 9 | 707-56-55510 | SEAL,DUST (KIT) | 1001- | |
| 10 | 07179-12069 | RING,SNAP | 1001- | |
| 11 | 07000-15085 | O-RING (KIT) | 1001- | |
| 12 | 707-35-90960 | RING,BACK-UP (KIT) | 1001- | |
| 13 | 01010-81465 | BOLT | 1001- | |
| 14 | 705-17-04980 | WASHER | 1001- | |
| 15 | 20X-63-74120 | ROD | 1001- | |
| 16 | 707-76-60080 | BUSHING | 1001- | |
| 17 | 07145-00060 | SEAL,DUST (KIT) | 1001- | |
| 18 | 07020-00675 | FITTING,GREASE | 1001- | |
| 19 | 707-36-90230 | PISTON | 1001- | |
| 20 | 707-44-90180 | RING,PISTON (KIT) | 1001- | |
| 21 | 707-39-90110 | RING,WEAR (KIT) | 1001- | |
| 22 | 707-44-90911 | RING | 1001- | |
| 23 | 07165-13941 | NUT | 1001- | |
| 24 | 20X-63-74170 | TUBE | 1001- | |
| 25 | 20X-63-74180 | TUBE | 1001- | |
| 26 | 07235-10422 | ELBOW | 1001- | |
| 27 | 07002-12034 | O-RING (KIT) | 1001- | |
| 28 | 707-88-95650 | BAND | 1001- | |
| 29 | 707-88-96280 | BAND | 1001- | |
| 30 | 01010-51035 | BOLT | 1001- | |
| 31 | 01643-51032 | WASHER | 1001- | |
| 32 | 01010-51020 | BOLT | 1001- | |
| 33 | 01643-31032 | WASHER | 1001- |
