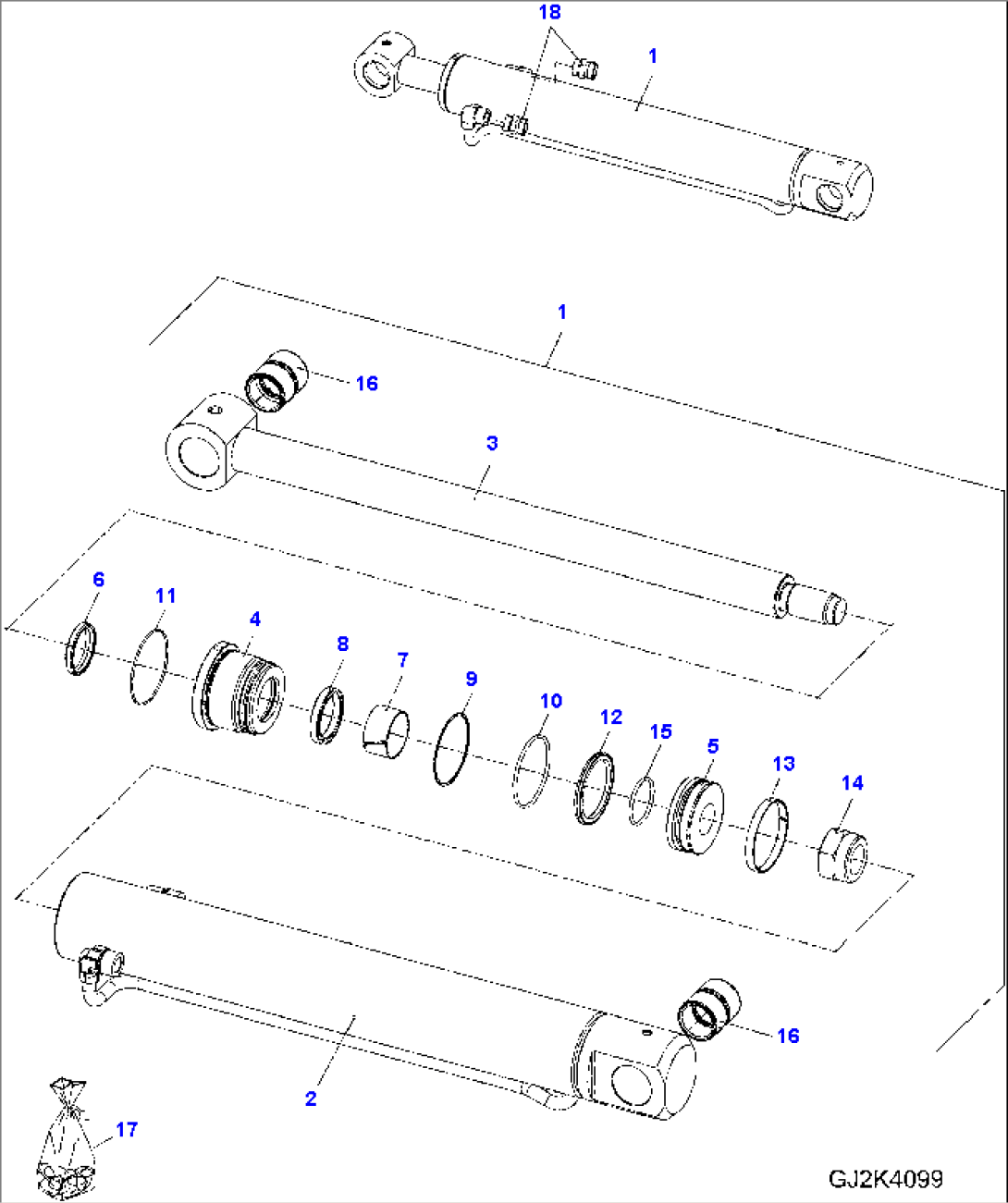

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42T-63-23100 | BUCKET CYLINDER | ||
| 2 | 42U-63-H0P45 | CYLINDER | ||
| 3 | 42U-63-H0P46 | CYLINDER ROD | ||
| 4 | 42U-63-H0P47 | GUIDE BUSH | ||
| 5 | 42U-63-H0P48 | PISTON | ||
| 6 | 42U-63-H0P49 | STRIPPER | ||
| 7 | 42T-63-H0P22 | PILOT | ||
| 8 | 42U-63-H0P17 | SEAL | ||
| 9 | 42U-63-H0P38 | BACK-UP RING | ||
| 10 | 42U-63-H0P44 | O-RING | ||
| 11 | 42U-63-H0P39 | O-RING | ||
| 12 | 42U-63-H0P40 | PISTON SEAL | ||
| 13 | 42U-63-H0P41 | PILOT | ||
| 14 | 42T-63-H0P34 | NUT | ||
| 15 | 42T-63-H0P25 | O-RING | ||
| 16 | 42U-63-H0P42 | LINER ASSEMBLY | ||
| 17 | 42U-63-H0P43 | GASKET KIT | ||
| 18 | 421-00-H0420 | STUD |
