| Item | Part No. | Part Name | Qty | Serial No. |

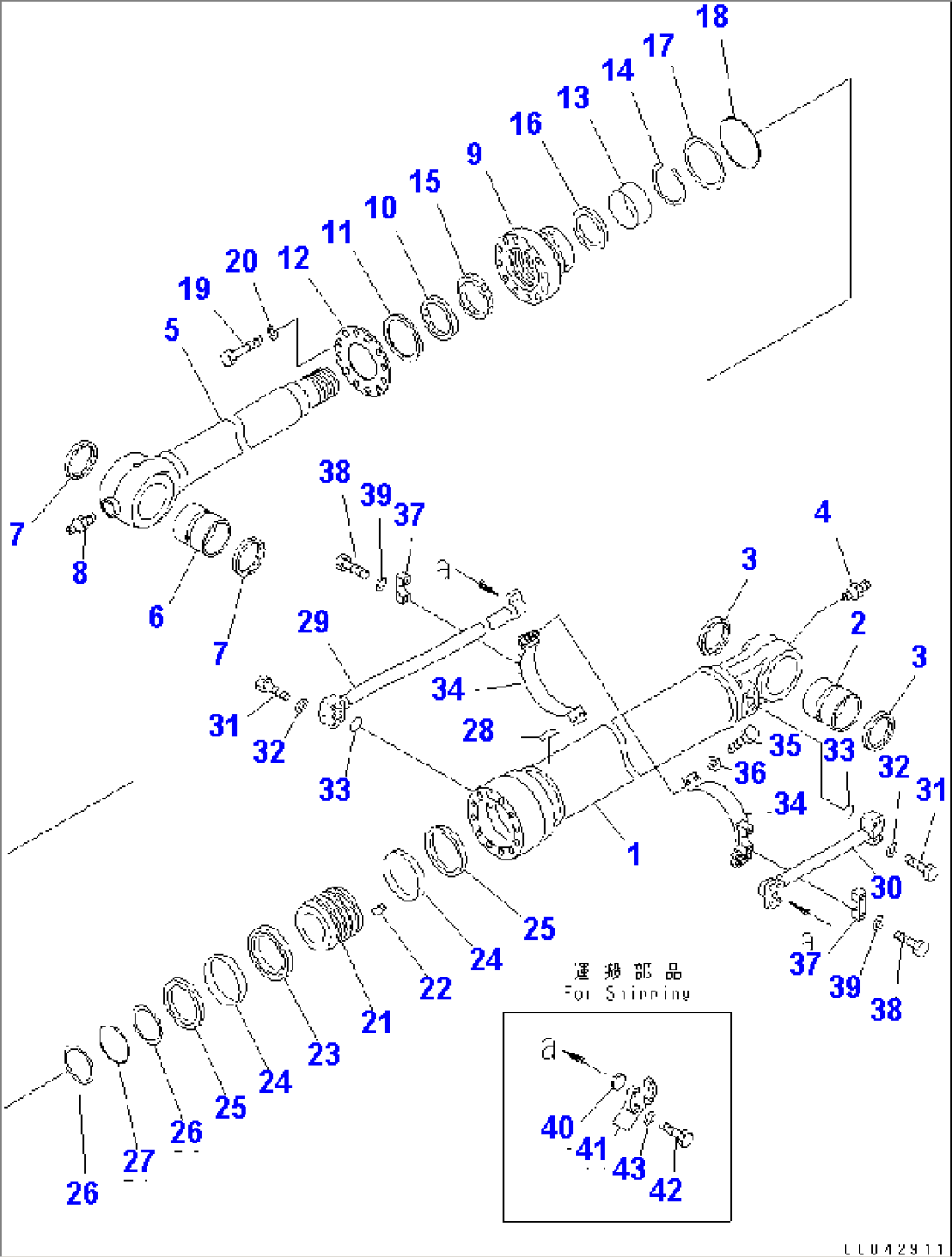

| G-1 | (\8\707-01-XT860) | CYLINDER GROUP,(FINAL COATING) | 50296-50472 | |
| ==================== | ||||
| 707-01-0H090 | CYLINDER ASS'Y | 50296-50472 | ||
| 1 | 707-13-16870 | CYLINDER | 50001-50472 | |
| 2 | 707-76-10130 | BUSHING | 50001-50472 | |
| 3 | 07145-10100 | SEAL,DUST (KIT) | 50001-@ | |
| 4 | 07020-00000 | FITTING,GREASE | 50001-@ | |
| 5 | 707-58-10970 | ROD | 50001-50472 | |
| 6 | 707-76-10140 | BUSHING | 50001-@ | |
| 7 | 208-70-73530 | SEAL,DUST (KIT) | 50001-@ | |
| 8 | 07020-00000 | FITTING,GREASE | 50001-@ | |
| 9 | 707-27-16020 | HEAD | 50296-50472 | |
| 10 | 176-63-56170 | SEAL,DUST (KIT) | 50001-50472 | |
| 11 | 707-88-04180 | RING,RING | 50296-50472 | |
| 12 | 707-88-04190 | PLATE | 50296-50472 | |
| 13 | 707-52-90780 | BUSHING | 50001-50472 | |
| 14 | 707-75-10160 | RING,SNAP | 50001-50472 | |
| 15 | 707-51-10730 | PACKING,ROD (KIT) | 50001-50472 | |
| 16 | 707-51-10640 | RING,BUFFER (KIT) | 50001-50472 | |
| 17 | 707-35-91640 | RING,BACK-UP (KIT) | 50001-@ | |
| 18 | 07000-55150 | O-RING (KIT) | 50001-@ | |
| 19 | 01010-82095 | BOLT | 50296-50472 | |
| 20 | 707-88-75310 | WASHER | 50001-@ | |
| 21 | 707-36-16580 | PISTON | 50001-@ | |
| 22 | 01310-01216 | SCREW | 50001-@ | |
| 23 | 707-44-16180 | RING,PISTON (KIT) | 50001-@ | |
| 24 | 707-39-16120 | RING,WEAR (KIT) | 50001-@ | |
| 25 | 707-44-16910 | RING | 50001-@ | |
| 26 | 07001-05100 | RING,BACK-UP (KIT) | 50001-@ | |
| 27 | 07000-55100 | O-RING (KIT) | 50001-@ | |
| 28 | 707-11-31980 | PLATE | 50001-@ | |
| 29 | 707-86-12580 | TUBE | 50001-50472 | |
| 30 | 707-86-12570 | TUBE | 50001-@ | |
| 31 | 07372-21060 | BOLT | 50001-@ | |
| 32 | 01643-51032 | WASHER | 50001-@ | |
| 33 | 07000-53035 | O-RING (KIT) | 50001-@ | |
| 34 | 707-88-25390 | BRACKET | 50001-@ | |
| 35 | 07372-21240 | BOLT | 50001-@ | |
| 36 | 01643-51232 | WASHER | 50001-@ | |
| 37 | 707-88-10150 | CLAMP | 50001-@ | |
| 38 | 01010-81245 | BOLT | 50001-@ | |
| 39 | 01643-31232 | WASHER | 50001-@ | |
| 40 | 707-88-33040 | CAP | 50001-@ | |
| 41 | 07371-31049 | FLANGE,SPLIT | 50001-@ | |
| 42 | 07372-21035 | BOLT | 50001-@ | |
| 43 | 01643-51032 | WASHER | 50001-@ | |
| ==================== | ||||
| 707-99-66260 | SERVICE KIT | 50001-50472 |
