| Item | Part No. | Part Name | Qty | Serial No. |

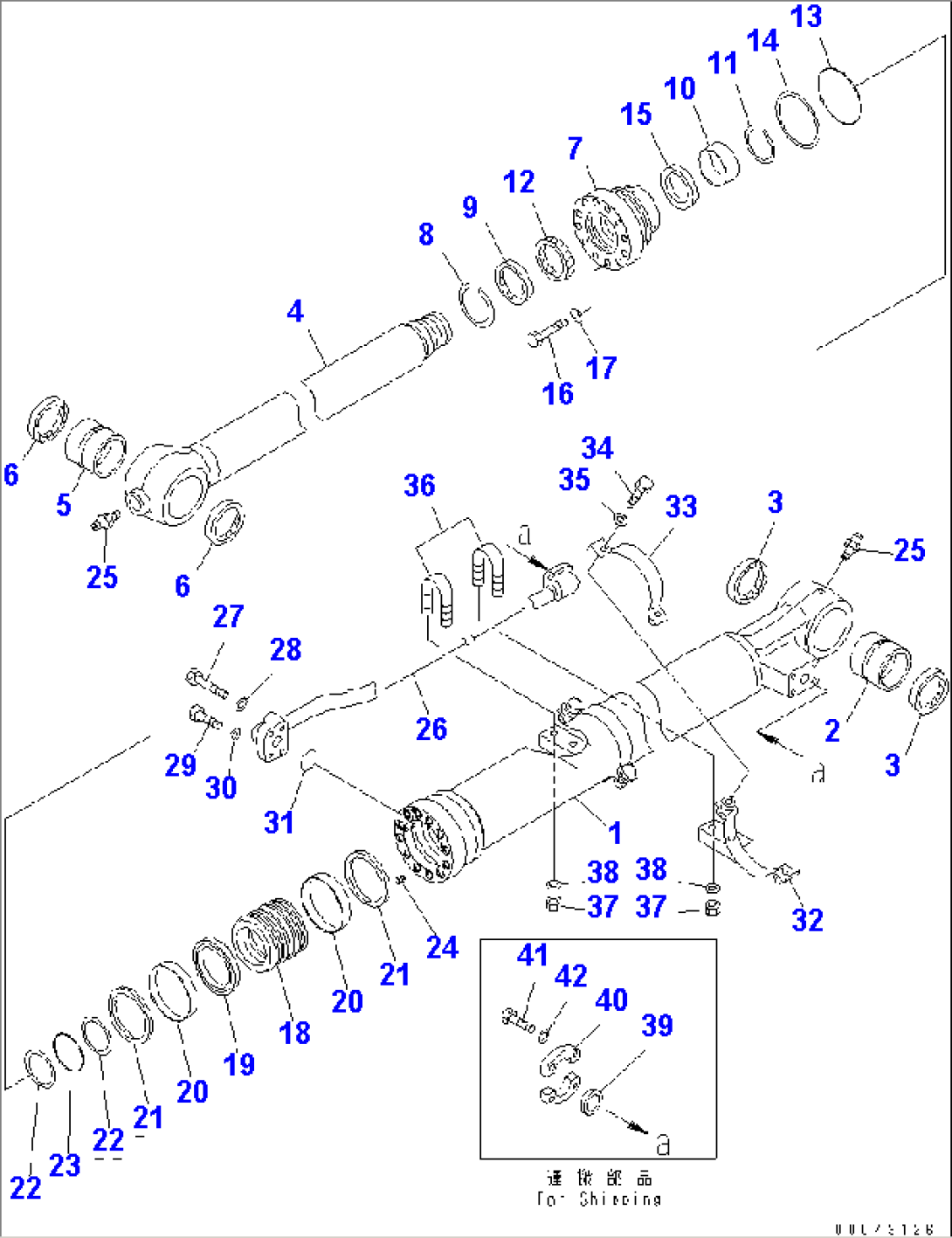

| G-1 | (\8\707-01-XS880) | CYLINDER GROUP,(FINAL COATING) | 70001- | |
| ==================== | ||||
| 707-01-0H920 | CYLINDER ASS'Y | 70001- | ||
| 1 | 707-13-13880 | CYLINDER | 70001- | |
| 2 | 707-76-80431 | BUSHING | 70001- | |
| 3 | 07145-00080 | SEAL,DUST (KIT) | 70001- | |
| 4 | 707-58-90E60 | ROD,PISTON | 70001- | |
| 5 | 707-76-80020 | BUSHING | 70001- | |
| 6 | 20Y-70-23230 | SEAL,DUST (KIT) | 70001- | |
| 7 | 707-27-13750 | HEAD,CYLINDER | 70001- | |
| 8 | 07179-13104 | RING,SNAP | 70001- | |
| 9 | 195-63-94170 | SEAL,DUST (KIT) | 70001- | |
| 10 | 707-52-90680 | BUSHING | 70001- | |
| 11 | 707-75-90110 | RING,SNAP | 70001- | |
| 12 | 707-51-90030 | PACKING,ROD (KIT) | 70001- | |
| 13 | 07000-15120 | O-RING (KIT) | 70001- | |
| 14 | 707-35-91320 | RING,BACK-UP (KIT) | 70001- | |
| 15 | 707-51-90650 | RING,BUFFER (KIT) | 70001- | |
| 16 | 01010-81875 | BOLT | 70001- | |
| 17 | 707-41-11840 | WASHER | 70001- | |
| 18 | 707-36-13780 | PISTON | 70001- | |
| 19 | 707-44-13150 | RING,PISTON (KIT) | 70001- | |
| 20 | 707-39-13150 | RING,WEAR (KIT) | 70001- | |
| 21 | 707-44-13911 | RING | 70001- | |
| 22 | 707-35-90940 | RING,BACK-UP (KIT) | 70001- | |
| 23 | 07000-15080 | O-RING (KIT) | 70001- | |
| 24 | 01310-01216 | SCREW | 70001- | |
| 25 | 07020-00000 | FITTING,GREASE | 70001- | |
| 26 | 707-86-67820 | TUBE | 70001- | |
| 27 | 07372-21060 | BOLT | 70001- | |
| 28 | 01643-51032 | WASHER | 70001- | |
| 29 | 07372-21045 | BOLT | 70001- | |
| 30 | 01643-51032 | WASHER | 70001- | |
| 31 | 07000-13030 | O-RING (KIT) | 70001- | |
| 32 | 707-88-22640 | BRACKET | 70001- | |
| 33 | 707-88-21331 | BAND | 70001- | |
| 34 | 07372-21035 | BOLT | 70001- | |
| 35 | 01643-51032 | WASHER | 70001- | |
| 36 | 07283-32738 | CLIP | 70001- | |
| 37 | 01597-01009 | NUT | 70001- | |
| 38 | 01643-31032 | WASHER | 70001- | |
| 39 | 707-88-33030 | CAP | 70001- | |
| 40 | 07371-30640 | FLANGE,SPLIT | 70001- | |
| 41 | 07372-21035 | BOLT | 70001- | |
| 42 | 01643-51032 | WASHER | 70001- | |
| ==================== | ||||
| 707-98-47720 | SERVICE KIT | 70001- |
