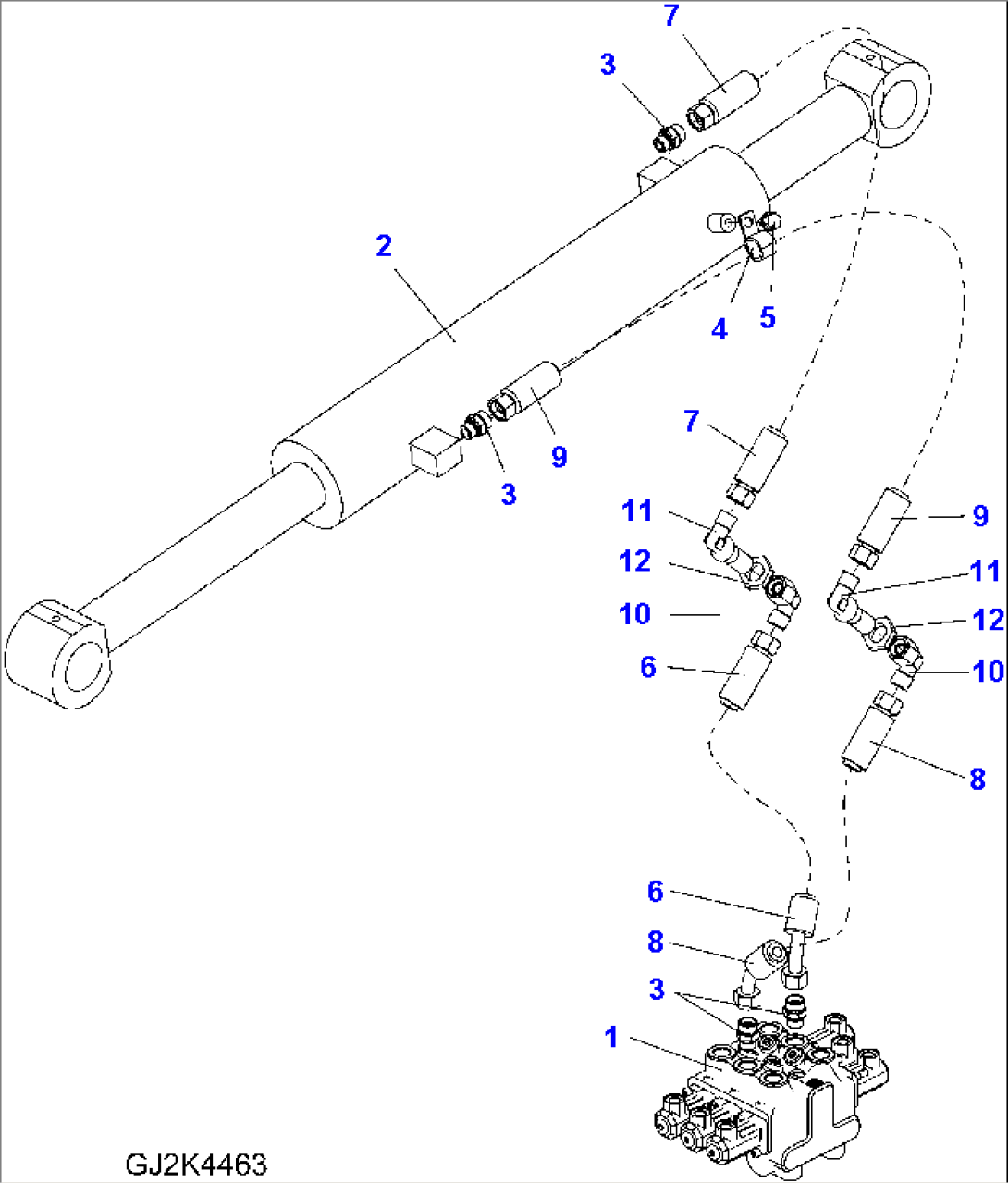

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42W-64-23130 | ACTUATER | H50130- | |
| 42W-64-23120 | ACTUATER | H50051-H50129 | ||
| 2 | 42W-63-23141 | BUCKET CYLINDER | ||
| 3 | 421-00-H0420 | STUD | ||
| 4 | 04434-52210 | CLIP | ||
| 5 | 01024-81016 | SCREW | ||
| 6 | 42U-09-H3360 | HOSE ASSEMBLY | ||
| 7 | 42W-09-H2640 | HOSE ASSEMBLY | ||
| 8 | 42U-09-H3380 | HOSE ASSEMBLY | ||
| 9 | 42T-09-H3120 | HOSE ASSEMBLY | ||
| 10 | 424-00-H0420 | ELBOW | ||
| 11 | 42U-09-H1040 | ELBOW NIPPLE | ||
| 12 | 42U-09-H1050 | NUT |
