| Item | Part No. | Part Name | Qty | Serial No. |

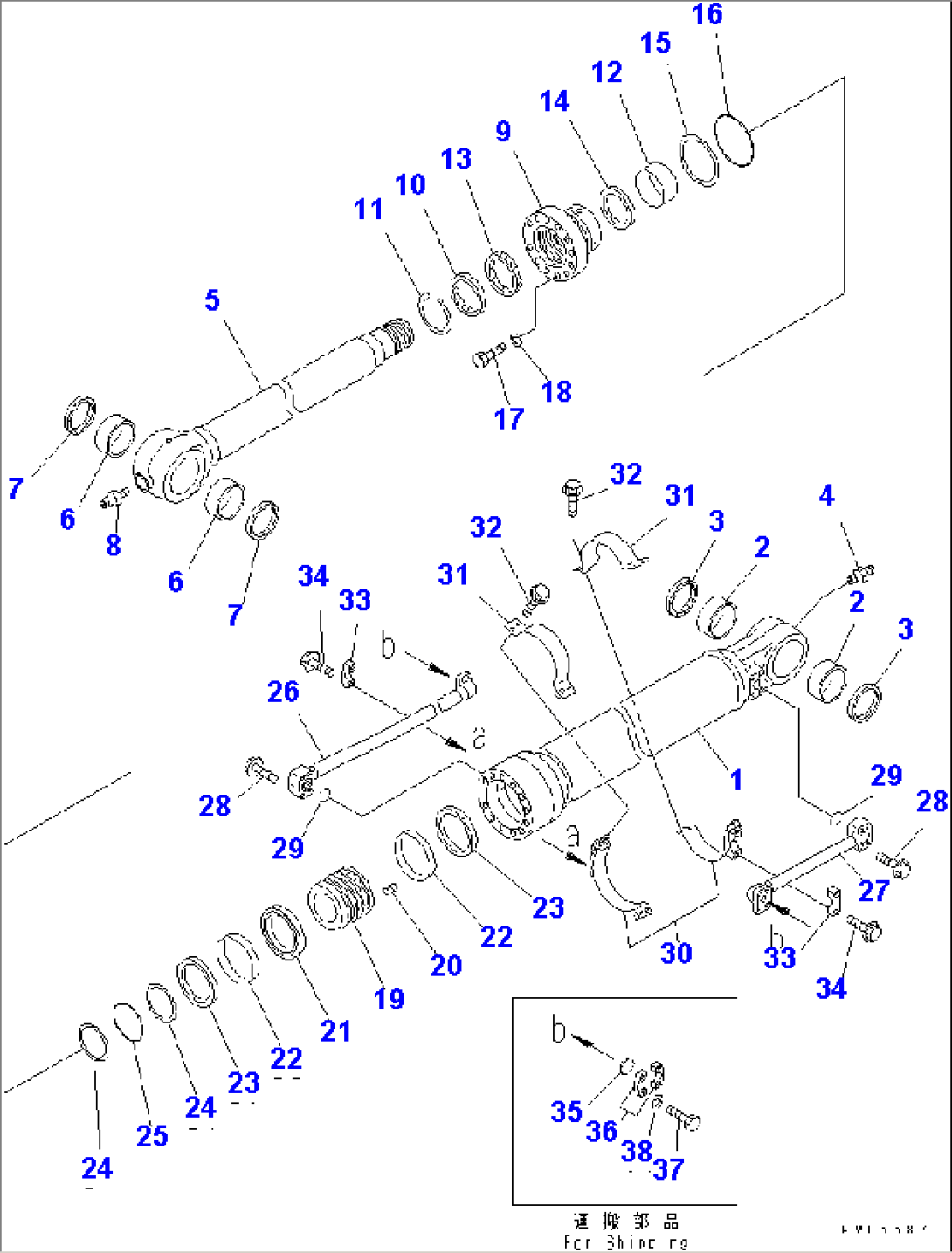

| G-1 | (\8\707-01-XY011) | CYLINDER GROUP,(FINAL COATING) | K45001- | |
| ==================== | ||||
| 707-01-0A470 | BUCKET CYLINDER A. | K45001- | ||
| 1 | 707-13-15261 | CYLINDER | K45001- | |
| 2 | 207-70-73240 | BUSHING | K45001- | |
| 3 | 07145-00090 | SEAL,DUST (KIT) | K45001- | |
| 4 | 07020-00000 | FITTING,GREASE | K45001- | |
| 5 | 707-58-11370 | ROD | K45001- | |
| 6 | 207-70-73240 | BUSHING | K45001- | |
| 7 | 207-70-72120 | SEAL,DUST (KIT) | K45001- | |
| 8 | 07020-00000 | FITTING,GREASE | K45001- | |
| 9 | 707-27-15611 | HEAD | K45001- | |
| 10 | 198-63-94170 | SEAL,DUST (KIT) | K45001- | |
| 11 | 07179-13126 | RING,SNAP | K45001- | |
| 12 | 707-52-90850 | BUSHING | K45001- | |
| 13 | 707-51-11030 | PACKING,ROD (KIT) | K45001- | |
| 14 | 707-51-11640 | RING,BUFFER (KIT) | K45001- | |
| 15 | 707-35-91660 | RING,BACK-UP (KIT) | K45001- | |
| 16 | 07000-15140 | O-RING (KIT) | K45001- | |
| 17 | 01010-82085 | BOLT | K45001- | |
| 18 | 707-88-75310 | WASHER | K45001- | |
| 19 | 707-36-15260 | PISTON | K45001- | |
| 20 | 01310-01216 | SCREW | K45001- | |
| 21 | 707-44-15180 | RING,PISTON (KIT) | K45001- | |
| 22 | 707-39-15110 | RING,WEAR (KIT) | K45001- | |
| 23 | 707-44-15911 | RING | K45001- | |
| 24 | 07001-05100 | RING,BACK-UP (KIT) | K45001- | |
| 25 | 07000-15100 | O-RING (KIT) | K45001- | |
| 26 | 707-86-11631 | TUBE | K45001- | |
| 27 | 207-63-73180 | TUBE | K45001- | |
| 28 | 01435-01055 | BOLT | K45001- | |
| 29 | 07000-13035 | O-RING (KIT) | K45001- | |
| 30 | 707-88-22690 | BRACKET | K45001- | |
| 31 | 707-88-21420 | BAND | K45001- | |
| 32 | 01435-01235 | BOLT | K45001- | |
| 33 | 707-88-10150 | CLAMP | K45001- | |
| 34 | 01435-01240 | BOLT | K45001- | |
| 35 | 707-88-33040 | CAP,(FOR SHIPPING) | K45001- | |
| 36 | 07371-31049 | FLANGE,SPLIT | K45001- | |
| 37 | 07372-21035 | BOLT,(FOR SHIPPING) | K45001- | |
| 38 | 01643-51032 | WASHER,(FOR SHIPPING) | K45001- | |
| ==================== | ||||
| 707-99-59610 | SERVICE KIT | K45001- |
