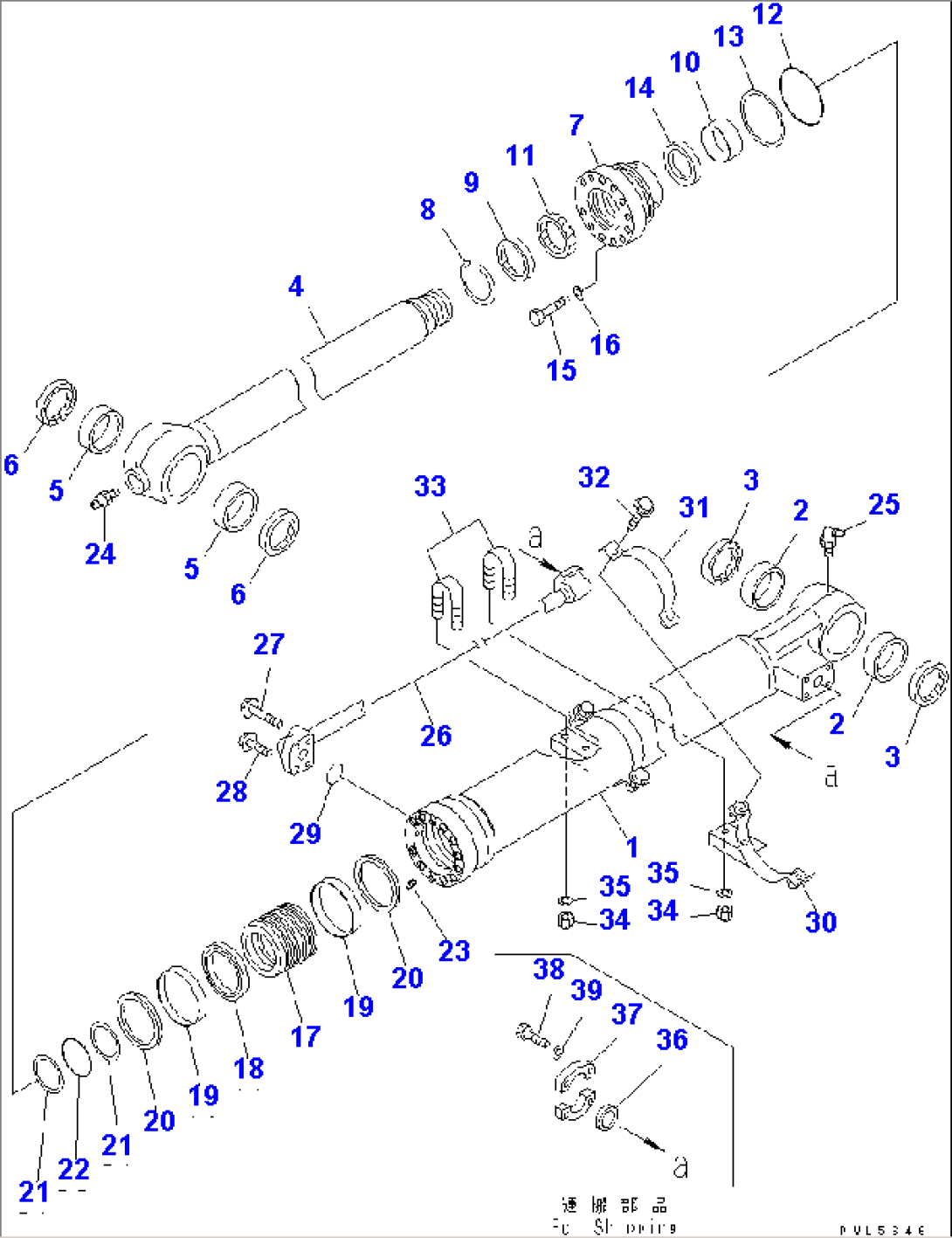

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\707-01-XU580) | CYLINDER GROUP | K40652- | |
| G-1 | (\8\707-01-XY590) | CYLINDER GROUP | K40001-K40651 | |
| ==================== | ||||
| 707-01-XF200 | CYLINDER ASS'Y | K40652- | ||
| 707-01-XC130 | CYLINDER ASS'Y | K40001-K40651 | ||
| 1 | 707-13-13611 | CYLINDER | K40652- | |
| 707-13-13480 | CYLINDER | K40001-K40651 | ||
| 2 | 707-76-80470 | BUSHING | K40001- | |
| 3 | 07145-00080 | SEAL,DUST (KIT) | K40001- | |
| 4 | 707-58-90940 | ROD,PISTON | K40001- | |
| 5 | 707-76-80480 | BUSHING | K40001- | |
| 6 | 20Y-70-23230 | SEAL,DUST (KIT) | K40001- | |
| 7 | 707-27-13921 | HEAD,CYLINDER | K40001- | |
| 8 | 07179-13104 | RING,SNAP | K40001- | |
| 9 | 195-63-94170 | SEAL,DUST (KIT) | K40001- | |
| 10 | 707-52-90680 | BUSHING | K40001- | |
| 11 | 707-51-90030 | PACKING,ROD (KIT) | K40001- | |
| 12 | 07000-15120 | O-RING (KIT) | K40001- | |
| 13 | 707-35-91320 | RING,BACK-UP (KIT) | K40001- | |
| 14 | 707-51-90640 | RING,BUFFER (KIT) | K40001- | |
| 15 | 01010-81875 | BOLT | K40652- | |
| 01010-81670 | BOLT | K40001-K40651 | ||
| 16 | 707-41-11840 | WASHER | K40652- | |
| 01643-51645 | WASHER | K40001-K40651 | ||
| 17 | 707-36-13780 | PISTON | K40001- | |
| 18 | 707-44-13180 | RING,PISTON (KIT) | K40001- | |
| 19 | 707-39-13150 | RING,WEAR (KIT) | K40001- | |
| 20 | 707-44-13911 | RING | K40001- | |
| 21 | 707-35-90940 | RING,BACK-UP (KIT) | K40001- | |
| 22 | 07000-15080 | O-RING (KIT) | K40001- | |
| 23 | 01310-01216 | SCREW | K40001- | |
| 24 | 07020-00000 | FITTING,GREASE | K40001- | |
| 25 | 07020-00900 | FITTING,GREASE | K40001- | |
| 26 | 707-86-66721 | TUBE | K40652- | |
| 707-86-66350 | TUBE | K40001-K40651 | ||
| 27 | 01435-01055 | BOLT | K40001- | |
| 28 | 01435-01040 | BOLT | K40001- | |
| 29 | 07000-13030 | O-RING (KIT) | K40001- | |
| 30 | 707-88-22640 | BRACKET | K40001- | |
| 31 | 707-88-21331 | BAND | K40001- | |
| 32 | 01435-01030 | BOLT | K40001- | |
| 33 | 07283-32738 | CLIP | K40652- | |
| 07283-22738 | CLIP | K40001-K40651 | ||
| 34 | 01597-01009 | NUT | K40652- | |
| 01599-01011 | NUT | K40001-K40651 | ||
| 35 | 01643-31032 | WASHER | K40001- | |
| 36 | 707-88-33030 | HEAD | K40001- | |
| 37 | 07371-30640 | FLANGE | K40001- | |
| 38 | 07372-21035 | BOLT | K40001- | |
| 39 | 01643-51032 | WASHER | K40001- | |
| ==================== | ||||
| K | 707-99-47570 | SERVICE KIT | K40001- |
