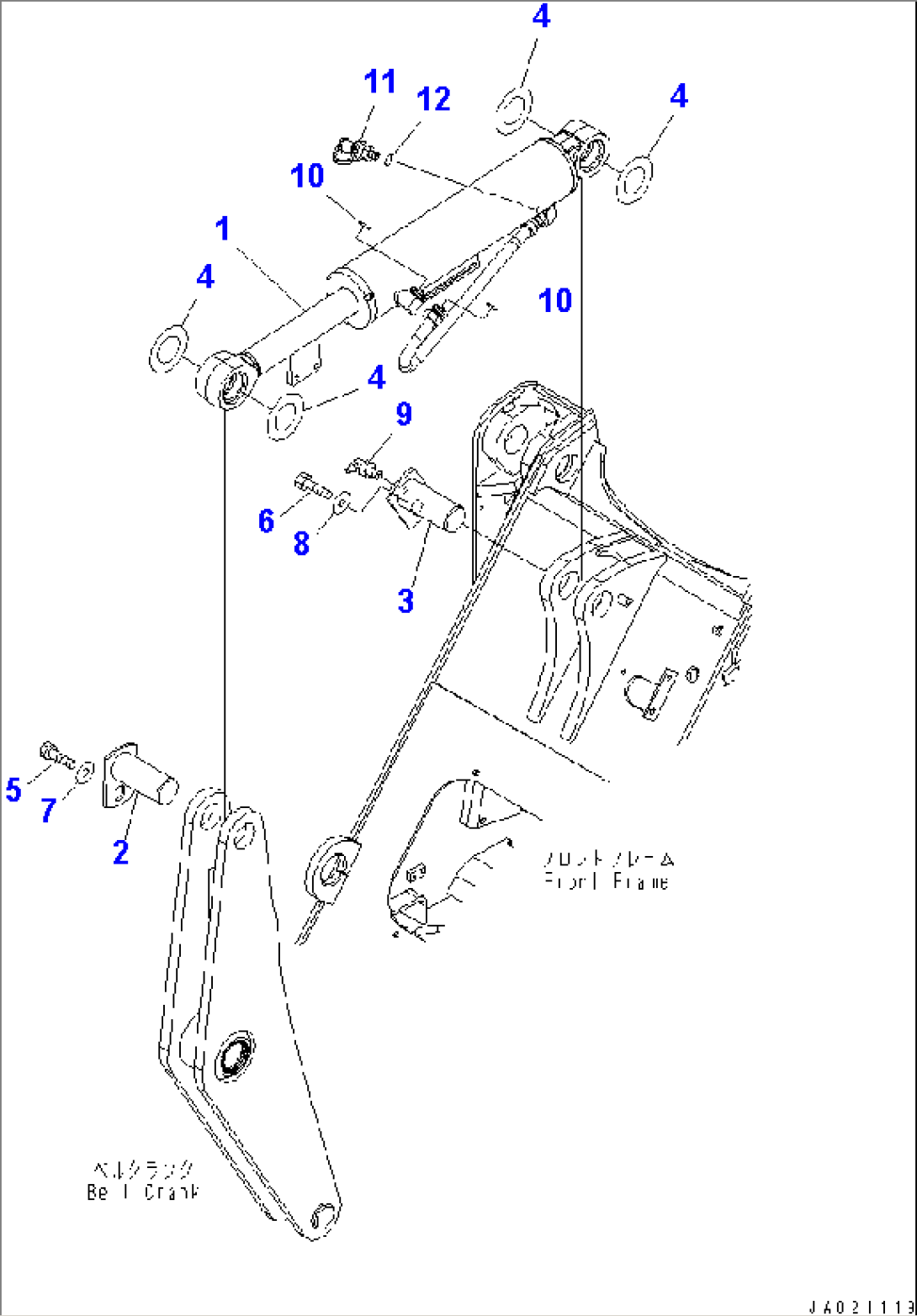

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (707-00-XU590) | CYLINDER GROUP | 69271- | |
| 1 | (707-00-XY030) | CYLINDER GROUP | 65001-69270 | |
| 2 | 418-70-11941 | PIN | 65001- | |
| 3 | 417-63-33230 | PIN | 65001- | |
| 4 | 418-70-11440 | SHIM, 3.0MM | 68045- | |
| 4 | 418-70-11440 | SHIM, 3.0MM | 65001-68044 | |
| 4 | 418-70-11430 | SHIM, 1.5MM | 68045- | |
| 4 | 418-70-11430 | SHIM, 1.5MM | 68045- | |
| 4 | 418-70-11430 | SHIM, 1.5MM | 65001-68044 | |
| 4 | 20Y-70-11430 | SPACER, 0.8MM | 68045- | |
| 5 | 01010-81625 | BOLT | 65001- | |
| 6 | 01010-81625 | BOLT | 65001- | |
| 7 | 421-70-11280 | WASHER | 65001- | |
| 8 | 421-70-11280 | WASHER | 65001- | |
| 9 | 07020-00900 | FITTING | 65001- | |
| 10 | 02896-11018 | O-RING | 65001- | |
| 11 | 799-101-5220 | NIPPLE | 65001-69537 | |
| 12 | 07002-11023 | O-RING | 65001-69537 |
