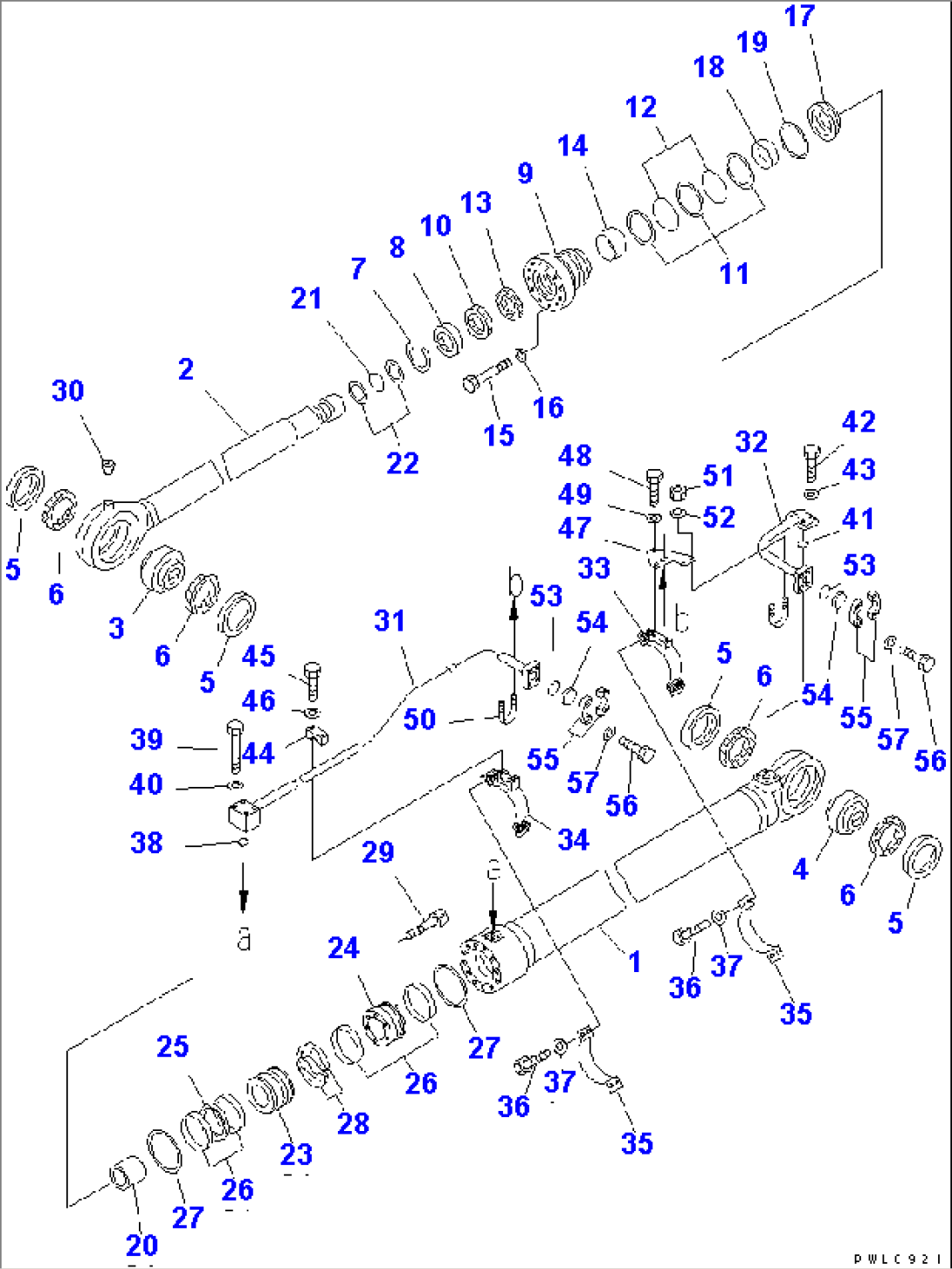

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\707-01-XZ680) | CYLINDER GROUP,L.H. (FINAL COATING) | 10013- | |
| G-1 | (\8\21T-63-X2350) | CYLINDER GROUP,L.H. | 10001-10012 | |
| G-2 | (\8\707-01-XZ690) | CYLINDER GROUP,R.H. (FINAL COATING) | 10013- | |
| G-2 | (\8\21T-63-X2360) | CYLINDER GROUP,R.H. | 10001-10012 | |
| ==================== | ||||
| 21T-63-02350 | CYLINDER ASS'Y | 10001- | ||
| 1 | 21T-63-72740 | CYLINDER | 10001- | |
| 2 | 21T-63-72720 | ROD,PISTON | 10001- | |
| 3 | 707-46-14010 | BUSHING | 10001- | |
| 4 | 21T-72-15850 | BUSHING | 10001- | |
| 5 | 21T-72-15860 | BUSHING | 10001- | |
| 6 | 21T-72-15870 | SEAL (KIT) | 10001- | |
| 7 | 07179-14160 | RING,SNAP | 10001- | |
| 8 | 198-63-93170 | SEAL,DUST (KIT) | 10001- | |
| 9 | 707-27-20630 | HEAD,CYLINDER | 10001- | |
| 10 | 707-51-14080 | PACKING,ROD (KIT) | 10001- | |
| 11 | 07001-05195 | RING,BACK-UP (KIT) | 10001- | |
| 12 | 07000-15195 | O-RING (KIT) | 10001- | |
| 13 | 707-51-14630 | RING,BUFFER (KIT) | 10001- | |
| 14 | 707-52-91150 | BUSHING | 10001- | |
| 15 | 01011-82705 | BOLT | 10001- | |
| 16 | 01643-32780 | WASHER | 10001- | |
| 17 | 707-71-31470 | COLLAR | 10001- | |
| 18 | 707-71-31580 | COLLAR | 10001- | |
| 19 | 707-71-11450 | RING | 10001- | |
| 20 | 707-71-51490 | PLUNGER | 10001- | |
| 21 | 07000-12115 | O-RING (KIT) | 10001- | |
| 22 | 707-35-52860 | RING,BACK-UP (KIT) | 10001- | |
| 23 | 707-36-20300 | PISTON | 10001- | |
| 24 | 707-36-20240 | PISTON | 10001- | |
| 25 | 707-44-20180 | RING,PISTON (KIT) | 10001- | |
| 26 | 707-39-20820 | RING,WEAR (KIT) | 10001- | |
| 27 | 707-44-20910 | RING | 10001- | |
| 28 | 707-40-20860 | SPACER | 10001- | |
| 29 | 01253-61400 | BOLT | 10001- | |
| 30 | 07043-00108 | PLUG | 10001- | |
| 31 | 21T-63-72770 | TUBE,L.H. | 10001- | |
| 21T-63-72870 | TUBE,R.H. | 10001- | ||
| 32 | 21T-62-88230 | TUBE,L.H. | 10001- | |
| 21T-62-88250 | TUBE,R.H. | 10001- | ||
| 33 | 707-88-87361 | BRACKET | 10002- | |
| 707-88-87360 | BRACKET | 10001-10001 | ||
| 34 | 707-88-87370 | BRACKET | 10001- | |
| 35 | 707-88-96110 | BAND | 10001- | |
| 36 | 01010-81240 | BOLT | 10001- | |
| 37 | 01643-31232 | WASHER | 10001- | |
| 38 | 07000-13038 | O-RING (KIT) | 10001- | |
| 39 | 01010-81280 | BOLT | 10001- | |
| 40 | 01643-31232 | WASHER | 10001- | |
| 41 | 07000-13048 | O-RING (KIT) | 10001- | |
| 42 | 01010-81450 | BOLT | 10001- | |
| 43 | 01643-31445 | WASHER | 10001- | |
| 44 | 176-61-41330 | CLAMP | 10001- | |
| 45 | 01010-81250 | BOLT | 10001- | |
| 46 | 01643-31232 | WASHER | 10001- | |
| 47 | 707-88-88480 | PLATE | 10001- | |
| 48 | 01010-81225 | BOLT | 10001- | |
| 49 | 01643-31232 | WASHER | 10001- | |
| 50 | 07283-24346 | CLIP | 10001- | |
| 51 | 01599-01011 | NUT | 10001- | |
| 52 | 01643-31032 | WASHER | 10001- | |
| 53 | 07000-13048 | O-RING,(FOR SHIPPING) | 10001- | |
| 54 | 07378-11410 | HEAD,(FOR SHIPPING) | 10001- | |
| 55 | 07371-51470 | FLANGE,(FOR SHIPPING) | 10001- | |
| 56 | 01010-81455 | BOLT,(FOR SHIPPING) | 10001- | |
| 57 | 01643-31445 | WASHER,(FOR SHIPPING) | 10001- | |
| ==================== | ||||
| 707-99-77130 | SERVICE KIT | 10001- |
