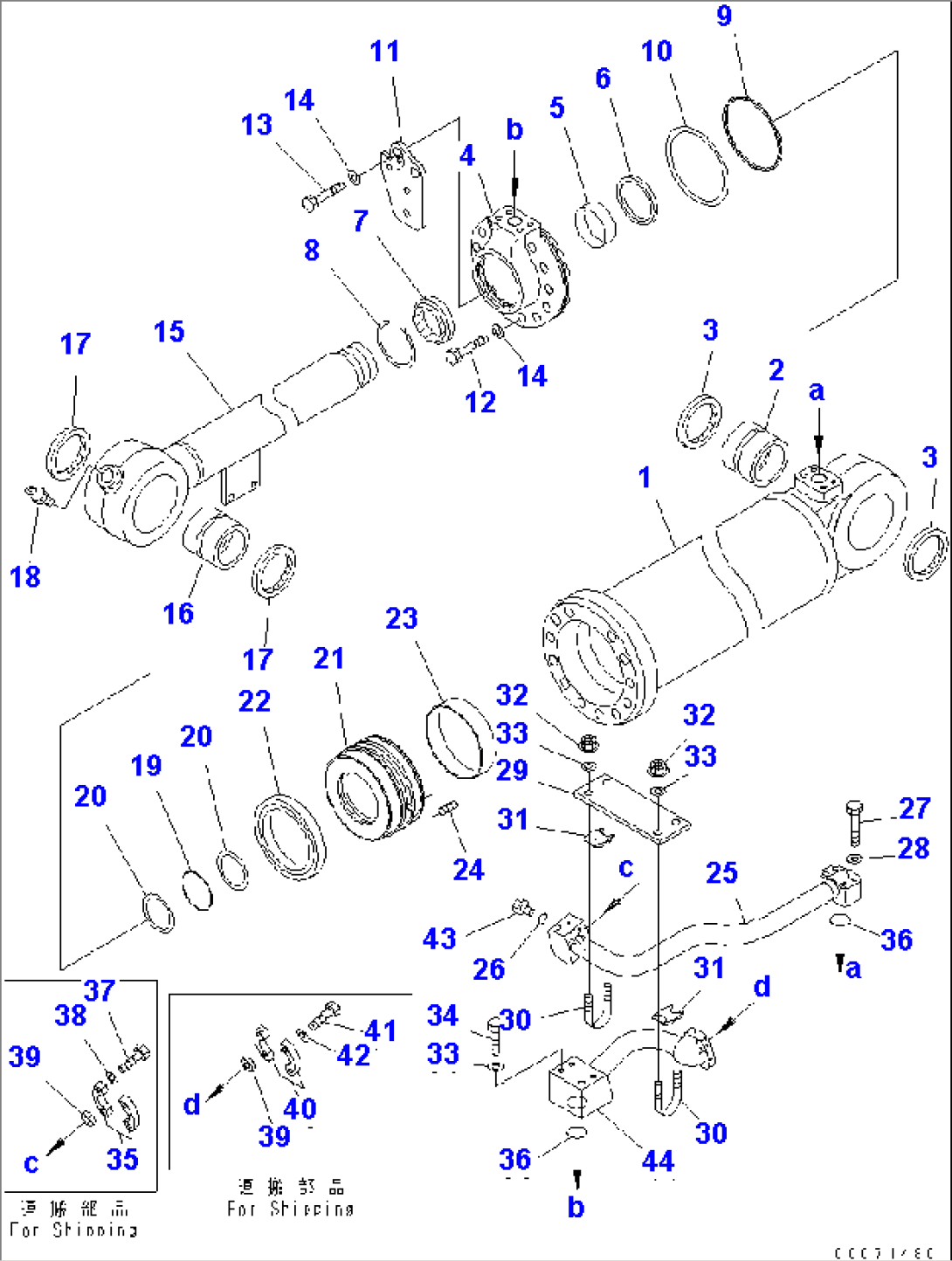

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-01-XM331) | CYLINDER ASSEMBLY,(FINAL COATING) | 70136-70342 | |
| 707-01-0AF71 | CYLINDER ASSEMBLY,DUMP | 70136-70342 | ||
| 1 | 707-13-15490 | CYLINDER | 70136-70342 | |
| 2 | 707-76-85070 | BUSHING | 70136-70342 | |
| 3 | 424-09-12320 | SEAL,DUST (KIT) | 70136-70342 | |
| 4 | 707-27-15590 | HEAD,CYLINDER | 70136-70342 | |
| 5 | 707-52-10910 | BUSHING | 70136-70342 | |
| 6 | 707-51-90030 | PACKING,ROD (KIT) | 70136-70342 | |
| 7 | 195-63-94170 | SEAL,DUST (KIT) | 70136-70342 | |
| 8 | 07179-13104 | RING,SNAP | 70136-70342 | |
| 9 | 07000-12145 | O-RING (KIT) | 70136-70342 | |
| 10 | 07146-02146 | RING,BACK-UP (KIT) | 70136-70342 | |
| 11 | 707-88-38141 | PLATE | 70136-70342 | |
| 12 | 01010-81660 | BOLT | 70136-70342 | |
| 13 | 01010-81670 | BOLT | 70136-70342 | |
| 14 | 01643-51645 | WASHER | 70136-70342 | |
| 15 | 707-58-90600 | ROD,PISTON | 70136-70342 | |
| 16 | 707-76-85070 | BUSHING | 70136-70342 | |
| 17 | 424-09-12320 | SEAL,DUST (KIT) | 70136-70342 | |
| 18 | 07020-00000 | FITTING,GREASE | 70136-70342 | |
| 19 | 07000-15090 | O-RING (KIT) | 70136-70342 | |
| 20 | 07001-05090 | RING,BACK-UP (KIT) | 70136-70342 | |
| 21 | 707-36-15560 | PISTON | 70136-70342 | |
| 22 | 707-44-15180 | RING,PISTON (KIT) | 70136-70342 | |
| 23 | 07156-01517 | RING,WEAR (KIT) | 70136-70342 | |
| 24 | 01310-01216 | SCREW | 70136-70342 | |
| 25 | 707-86-00090 | TUBE | 70136-70342 | |
| 26 | 07002-11023 | O-RING (KIT) | 70136-70342 | |
| 27 | 07372-21060 | BOLT | 70136-70342 | |
| 28 | 01643-51032 | WASHER | 70136-70342 | |
| 29 | 707-88-05791 | PLATE | 70136-70342 | |
| 30 | 07283-33450 | CLIP | 70136-70342 | |
| 31 | 07283-53444 | SEAT | 70136-70342 | |
| 32 | 01597-01009 | NUT | 70136-70342 | |
| 33 | 01643-31032 | WASHER | 70136-70342 | |
| 34 | 01010-81080 | BOLT | 70136-70342 | |
| 35 | 07371-31049 | FLANGE,SPLIT | 70136-70342 | |
| 36 | 07000-13035 | O-RING (KIT) | 70136-70342 | |
| 37 | 07372-21035 | BOLT | 70136-70342 | |
| 38 | 01643-51032 | WASHER | 70136-70342 | |
| 39 | 707-88-33040 | CAP | 70136-70342 | |
| 40 | 07371-31049 | FLANGE,SPLIT | 70136-70342 | |
| 41 | 07372-21035 | BOLT | 70136-70342 | |
| 42 | 01643-51032 | WASHER | 70136-70342 | |
| 43 | 07040-11007 | PLUG | 70136-70342 | |
| 44 | 707-86-00080 | TUBE | 70136-70342 | |
| SERVICE KIT | ||||
| K | 707-98-56640 | SERVICE KIT,DUMP CYLINDER | 70136-70342 |
