| Item | Part No. | Part Name | Qty | Serial No. |

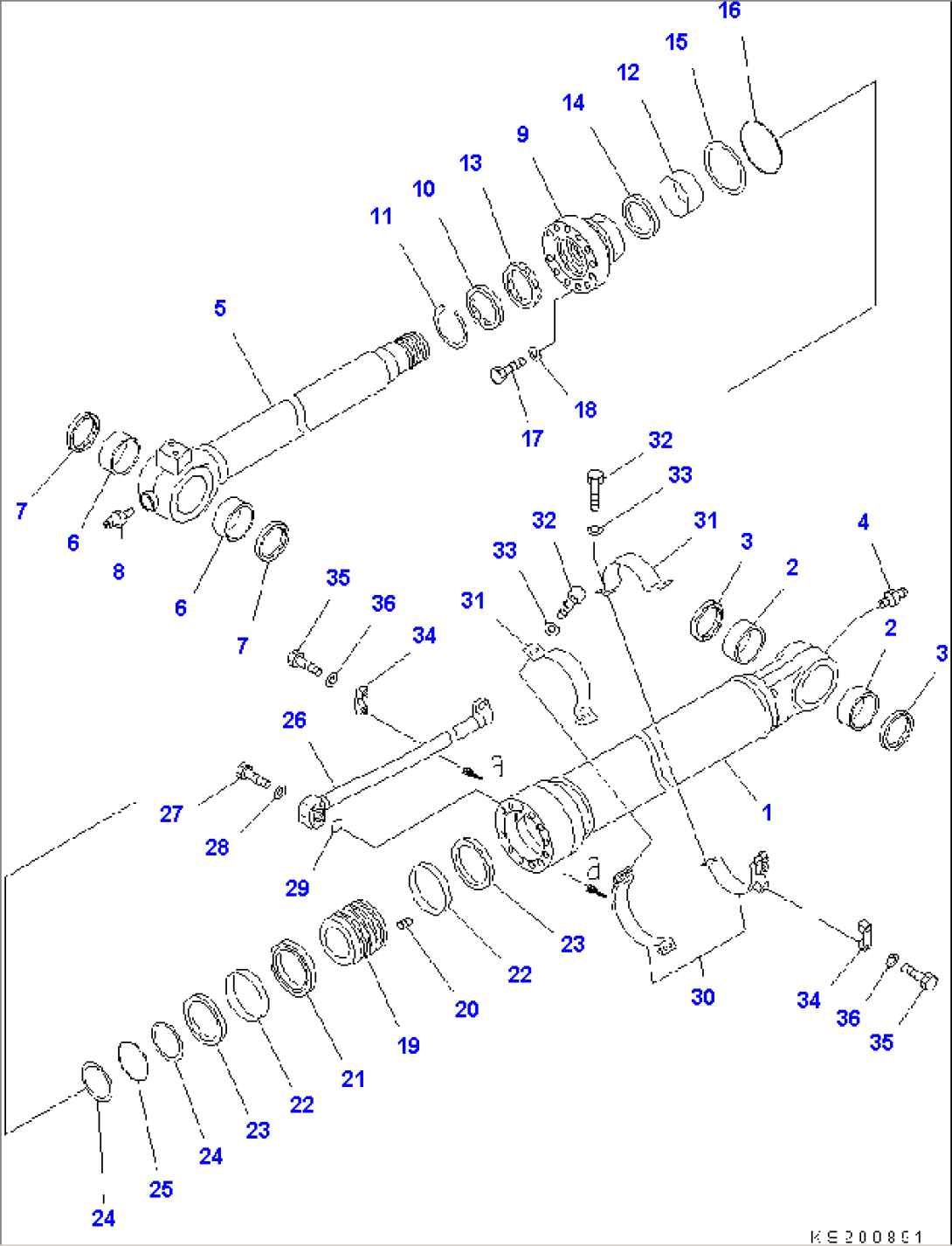

| G-1 | (\8\707-G1-X0530) | BUCKET CYLINDER GROUP | K50847- | |
| ==================== | ||||
| 707-E1-X0530 | CYLINDER ASSEMBLY | K50847- | ||
| 1 | 707-13-14450 | CYLINDER | K50847- | |
| 2 | 707-76-80330 | BUSHING | K50847- | |
| 3 | 07145-00080 | SEAL (KIT) | K50847- | |
| 4 | 07020-00000 | FITTING | K50847- | |
| 5 | 721-58-10200 | ROD | K50847- | |
| 6 | 707-76-80330 | BUSHING | K50847- | |
| 7 | 07145-00080 | SEAL (KIT) | K50847- | |
| 8 | 07020-00000 | FITTING | K50847- | |
| 9 | 707-27-14150 | HEAD | K50847- | |
| 10 | 707-56-10740 | SEAL (KIT) | K50847- | |
| 11 | 07179-13114 | RING | K50847- | |
| 12 | 707-52-90780 | BUSHING | K50847- | |
| 13 | 707-51-10030 | PACKING (KIT) | K50847- | |
| 14 | 707-51-10650 | RING (KIT) | K50847- | |
| 15 | 07000-05135 | RING (KIT) | K50847- | |
| 16 | 07000-15135 | O-RING (KIT) | K50847- | |
| 17 | 01011-81820 | BOLT | K50847- | |
| 18 | 707-41-11840 | WASHER | K50847- | |
| 19 | 707-36-14410 | PISTON | K50847- | |
| 20 | 01310-01220 | SCREW | K50847- | |
| 21 | 707-44-14150 | RING (KIT) | K50847- | |
| 22 | 707-39-14820 | RING (KIT) | K50847- | |
| 23 | 707-44-14910 | RING | K50847- | |
| 24 | 07001-05090 | RING (KIT) | K50847- | |
| 25 | 07000-15090 | O-RING (KIT) | K50847- | |
| 26 | 707-63-K1590 | TUBE | K50847- | |
| 27 | 07372-21060 | BOLT | K50847- | |
| 28 | 01643-51032 | WASHER | K50847- | |
| 29 | 07000-13035 | O-RING (KIT) | K50847- | |
| 30 | 707-88-87180 | BRACKET | K50847- | |
| 31 | 707-88-87170 | BAND | K50847- | |
| 32 | 07372-21240 | BOLT | K50847- | |
| 33 | 01643-51232 | WASHER | K50847- | |
| 34 | 707-88-10150 | CLAMP | K50847- | |
| 35 | 01010-81245 | BOLT | K50847- | |
| 36 | 01643-51232 | WASHER | K50847- | |
| ==================== | ||||
| 707-99-59040 | SERVICE KIT | K50847- |
