| Item | Part No. | Part Name | Qty | Serial No. |

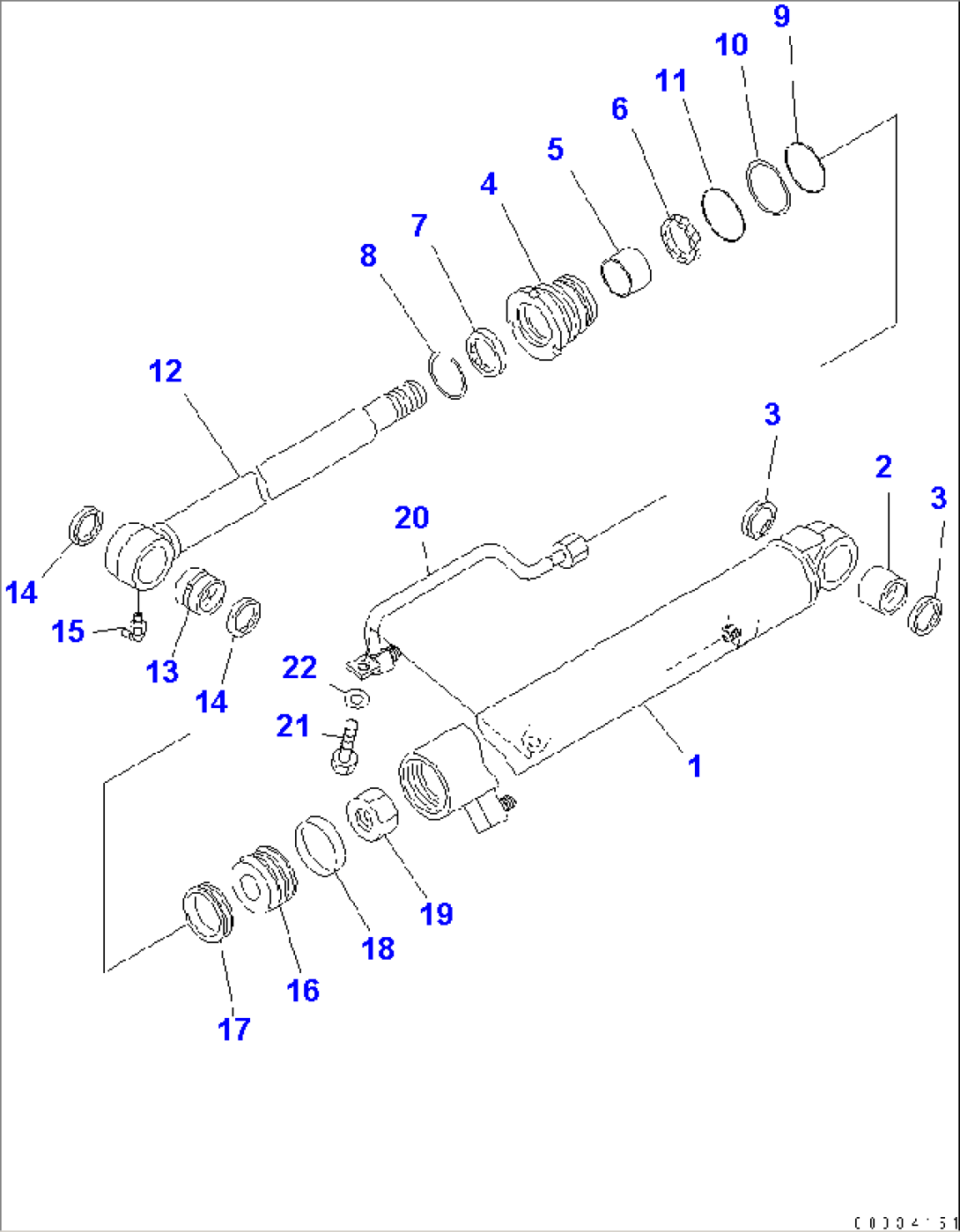

| G1 | (\8\707-00-55371) | CYLINDER GROUP | 12634- | |
| ==================== | ||||
| 20C-63-02432 | CYLINDER ASS'Y | 12634- | ||
| 1 | 20C-63-76441 | CYLINDER | 10001- | |
| 2 | 20P-70-51220 | BUSHING | 10001- | |
| 3 | 07145-00030 | SEAL,DUST (KIT) | 10001- | |
| 4 | 707-29-55820 | HEAD,CYLINDER | 12634- | |
| 5 | 07177-03525 | BUSHING | 12634- | |
| 6 | 707-51-35210 | PACKING,ROD (KIT) | 10001- | |
| 7 | 175-63-75190 | SEAL,DUST (KIT) | 10001- | |
| 8 | 07179-12047 | RING,SNAP | 10001- | |
| 9 | 07000-13050 | O-RING (KIT) | 10001- | |
| 10 | 07146-02051 | RING,BACK-UP (KIT) | 10001- | |
| 11 | 07000-12055 | O-RING (KIT) | 10001- | |
| 12 | 20C-63-76420 | ROD,PISTON | 10001- | |
| 13 | 07144-10303 | BUSHING | 10001- | |
| 14 | 07145-00030 | SEAL,DUST (KIT) | 10001- | |
| 15 | 07020-00900 | FITTING,GREASE | 10001- | |
| 16 | 707-36-55210 | PISTON | 10001- | |
| 17 | 707-44-55180 | RING,PISTON (KIT) | 10001- | |
| 18 | 707-39-55110 | RING,WEAR (KIT) | 10001- | |
| 19 | 01580-02419 | NUT | 10001- | |
| 20 | 20C-63-76481 | TUBE | 10001- | |
| 21 | 01010-81020 | BOLT | 10001- | |
| 22 | 01643-31032 | WASHER | 10001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| KIT | 707-98-12280 | SERVICE KIT,BUCKET CYLINDER | 10001- |
