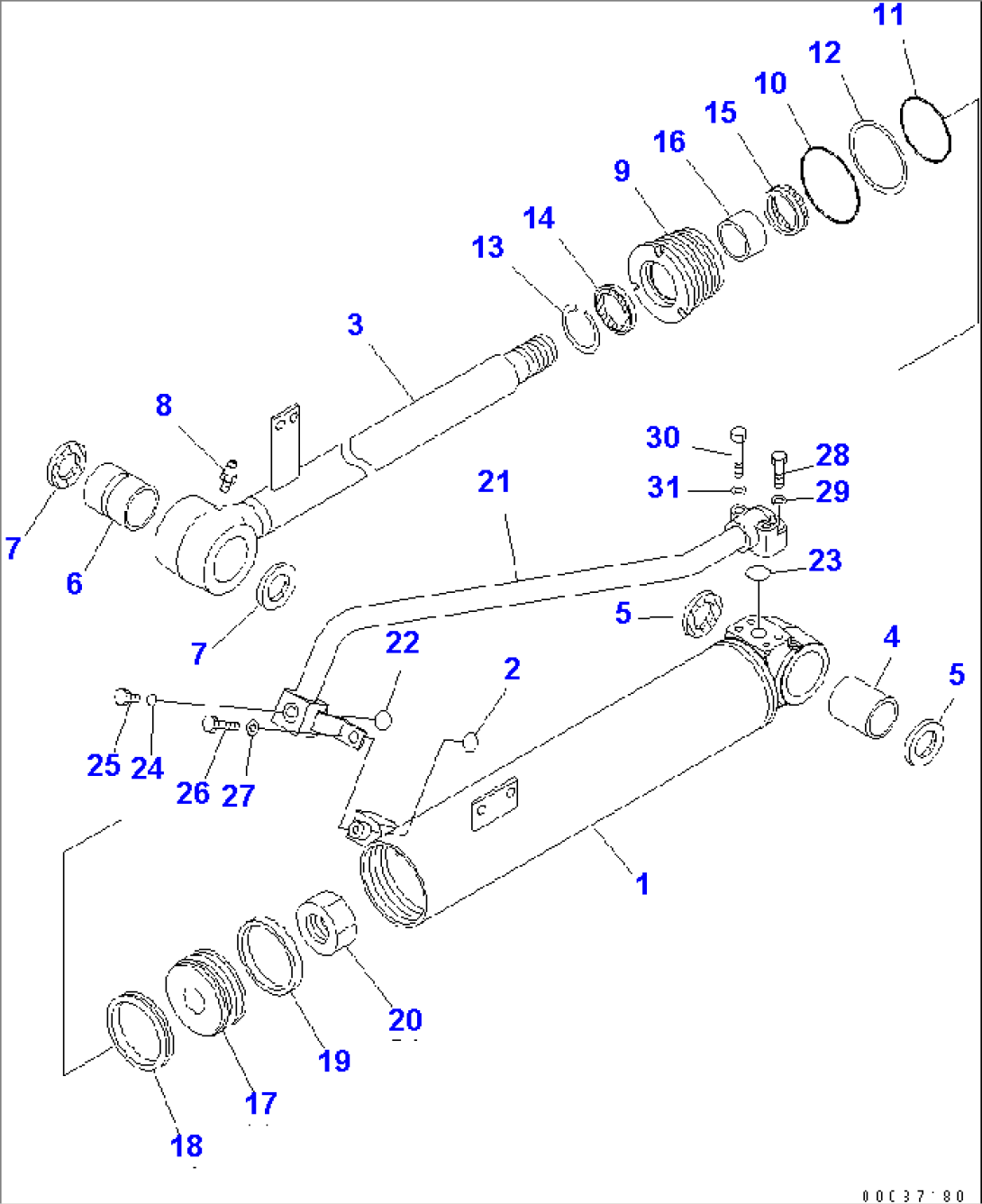

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-XU520) | CYLINDER GROUP,(FINAL COATING) | 75290- | |
| ==================== | ||||
| 707-00-0G100 | CYLINDER ASS'Y | 75290- | ||
| 1 | 707-11-11F20 | CYLINDER | 75290- | |
| 2 | 02896-11018 | O-RING (KIT) | 75290- | |
| 3 | 721-58-55351 | ROD,PISTON | 71058- | |
| 4 | 707-76-50910 | BUSHING | 65001- | |
| 5 | 416-09-11140 | SEAL,DUST (KIT) | 65001- | |
| 6 | 707-76-50371 | BUSHING | 65001- | |
| 7 | 416-09-11140 | SEAL,DUST (KIT) | 65001- | |
| 8 | 07020-00000 | FITTING,GREASE | 65001- | |
| 9 | 707-29-11730 | HEAD,CYLINDER | 65001- | |
| 10 | 07000-12110 | O-RING (KIT) | 65001- | |
| 11 | 07000-12105 | O-RING (KIT) | 65001- | |
| 12 | 07146-02106 | RING,BACK-UP (KIT) | 65001- | |
| 13 | 07179-12069 | RING,SNAP | 65001- | |
| 14 | 707-56-55740 | SEAL,DUST (KIT) | 75290- | |
| 15 | 707-51-55030 | PACKING,ROD (KIT) | 65001- | |
| 16 | 707-52-15310 | BUSHING | 75290- | |
| 17 | 707-36-11040 | PISTON | 65001- | |
| 18 | 707-44-11180 | RING,PISTON (KIT) | 65001- | |
| 19 | 07156-01112 | RING,WEAR (KIT) | 65001- | |
| 20 | 707-67-39010 | NUT | 65001- | |
| 21 | 707-86-67200 | TUBE | 75290- | |
| 22 | 02896-11018 | O-RING (KIT) | 75290- | |
| 23 | 07000-13030 | O-RING (KIT) | 75290- | |
| 24 | 07002-11023 | O-RING (KIT) | 75290- | |
| 25 | 07040-11007 | PLUG | 75290- | |
| 26 | 01010-81020 | BOLT | 75290- | |
| 27 | 01643-31032 | WASHER | 75290- | |
| 28 | 07372-21045 | BOLT | 75290- | |
| 29 | 01643-51032 | WASHER | 75290- | |
| 30 | 07372-21060 | BOLT | 75290- | |
| 31 | 01643-51032 | WASHER | 75290- | |
| ==================== | ||||
| SERVICE KIT | ||||
| KIT | 707-98-34730 | SERVICE KIT | 75290- |
