| Item | Part No. | Part Name | Qty | Serial No. |

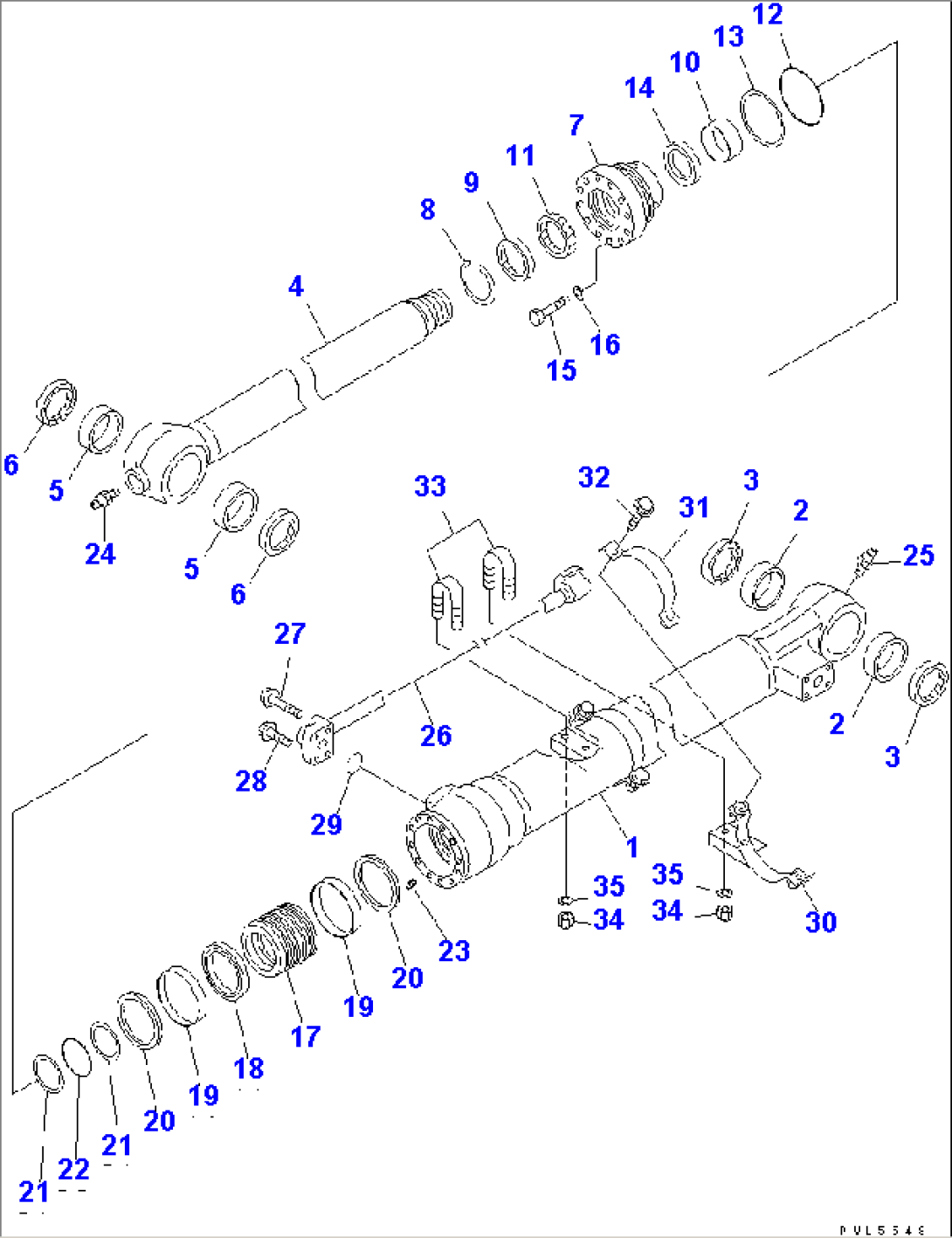

| G-1 | (\8\707-01-XZ850) | CYLINDER GROUP | 30001- | |
| ==================== | ||||
| 707-01-0A320 | CYLINDER ASS'Y | 30001- | ||
| 1 | 707-13-11560 | CYLINDER | 30001- | |
| 2 | 707-76-70690 | BUSHING | 30001- | |
| 3 | 07145-00070 | SEAL,DUST (KIT) | 30001- | |
| 4 | 707-58-80651 | ROD,PISTON | 30001- | |
| 5 | 707-76-70690 | BUSHING | 30001- | |
| 6 | 20Y-70-23220 | SEAL,DUST (KIT) | 30001- | |
| 7 | 707-27-11981 | HEAD,CYLINDER | 30001- | |
| 8 | 07179-13094 | RING,SNAP | 30001- | |
| 9 | 195-63-92190 | SEAL,DUST (KIT) | 30001- | |
| 10 | 707-52-90560 | BUSHING | 30001- | |
| 11 | 707-51-80030 | PACKING,ROD (KIT) | 30001- | |
| 12 | 07000-15105 | O-RING (KIT) | 30001- | |
| 13 | 707-35-91150 | RING,BACK-UP (KIT) | 30001- | |
| 14 | 707-51-80640 | RING,BUFFER (KIT) | 30001- | |
| 15 | 01010-81670 | BOLT | 30001- | |
| 16 | 01643-51645 | WASHER | 30001- | |
| 17 | 707-36-11851 | PISTON | 30001- | |
| 18 | 707-44-11280 | RING,PISTON (KIT) | 30001- | |
| 19 | 707-39-11530 | RING,WEAR (KIT) | 30001- | |
| 20 | 707-44-11920 | RING | 30001- | |
| 21 | 707-35-90360 | RING (KIT) | 30001- | |
| 22 | 07000-15070 | O-RING (KIT) | 30001- | |
| 23 | 01310-01216 | SCREW | 30001- | |
| 24 | 07020-00000 | FITTING,GREASE | 30001- | |
| 25 | 07020-00000 | FITTING,GREASE | 30001- | |
| 26 | 707-86-66280 | TUBE | 30001- | |
| 27 | 01435-01055 | BOLT | 30001- | |
| 28 | 01435-01040 | BOLT | 30001- | |
| 29 | 07000-13030 | O-RING (KIT) | 30001- | |
| 30 | 707-88-22570 | BRACKET | 30001- | |
| 31 | 707-88-21271 | BAND | 30001- | |
| 32 | 01435-01030 | BOLT | 30001- | |
| 33 | 07283-22738 | CLIP | 30001- | |
| 34 | 01599-01011 | NUT | 30001- | |
| 35 | 01643-31032 | WASHER | 30001- | |
| ==================== | ||||
| 707-99-45230 | SERVICE KIT | 30001- |
