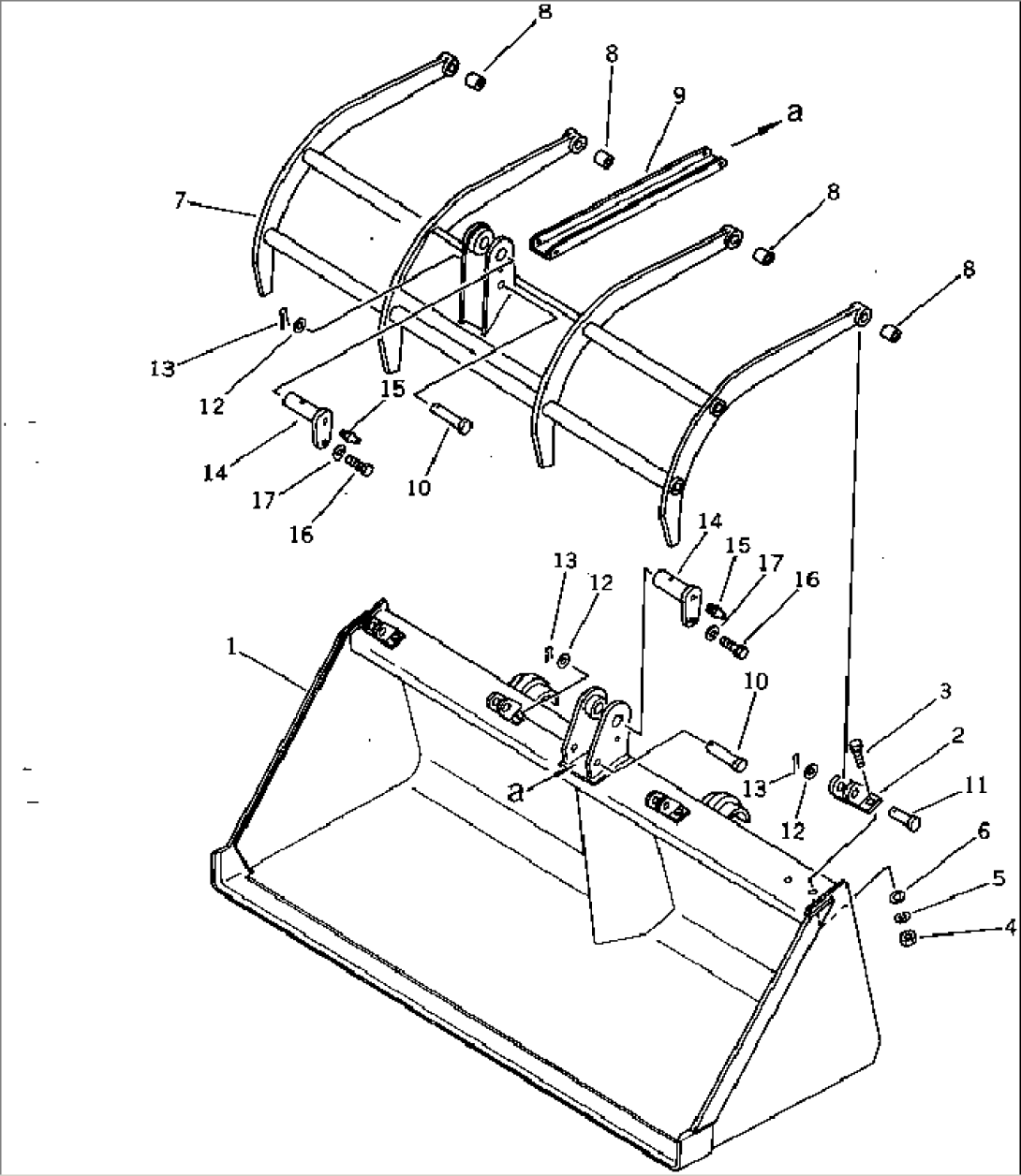

| Item | Part No. | Part Name | Qty | Serial No. |
| FF7819-24100 | BUCKET ASS'Y,GRAPPLE | 3001- | ||
| 1 | FF7819-24110 | BUCKET | 3001- | |
| \6\ | BUCKET | 3001- | ||
| \6\ | SEAT | 3001- | ||
| \6\ | HOOK | 3001- | ||
| 2 | FF7829-13140 | BRACKET | 3001- | |
| 3 | 01010-51230 | BOLT | 3001- | |
| 4 | 01580-11210 | NUT | 3001- | |
| 5 | 01602-21236 | WASHER | 3001- | |
| 6 | 01640-21223 | WASHER | 3001- | |
| 7 | FF7819-13120 | GRAPPLE | 3001- | |
| 8 | WB8710-46220 | BUSHING | 3001- | |
| 9 | FF7819-13190 | CHANNEL | 3001- | |
| 10 | FF7829-13150 | PIN | 3001- | |
| 11 | 04205-11650 | PIN | 3001- | |
| 12 | 01641-21626 | WASHER | 3001- | |
| 13 | 04050-14025 | PIN | 3001- | |
| 14 | FF7820-70320 | PIN | 3001- | |
| 15 | 07020-00000 | FITTING | 3001- | |
| 16 | 01010-50816 | BOLT | 3001- | |
| 17 | 01602-20825 | WASHER | 3001- |
