| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-856-1720 | LEVER | F61778- | |
| 2 | 37B-09-54009 | BUSHING | F61778- | |
| 3 | 21D-09-89140 | FITTING, GREASE | F61778- | |
| 4 | 37B-09-54006 | BUSHING | F61778- | |
| 5 | 37B-09-4C064 | SPACER | F61778- | |
| SEE FIG. 7425 |
Поиск по каталогу

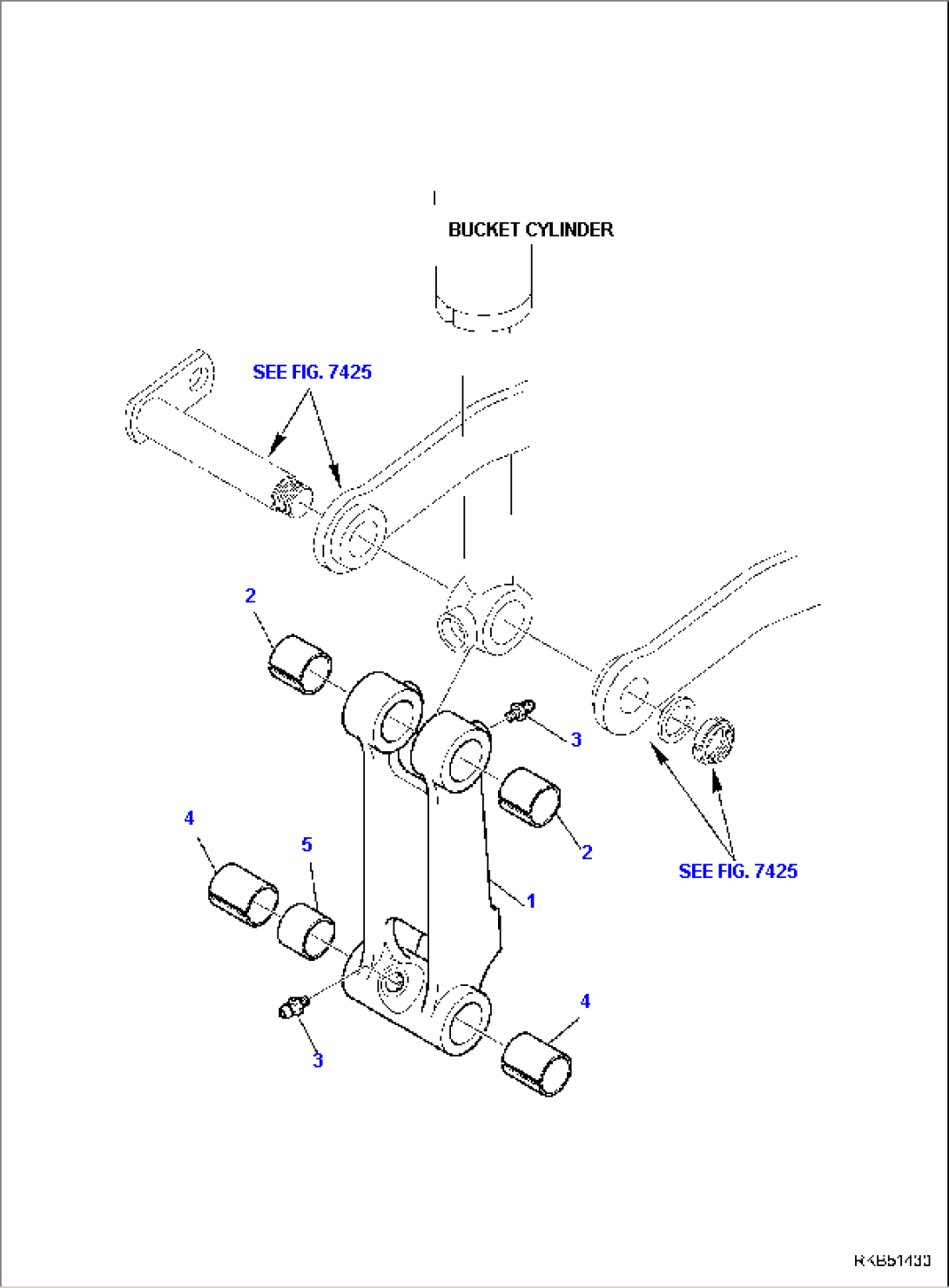

BUCKET LINK (2/2)
| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-856-1720 | LEVER | F61778- | |
| 2 | 37B-09-54009 | BUSHING | F61778- | |
| 3 | 21D-09-89140 | FITTING, GREASE | F61778- | |
| 4 | 37B-09-54006 | BUSHING | F61778- | |
| 5 | 37B-09-4C064 | SPACER | F61778- | |
| SEE FIG. 7425 |
