| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-856-3530NK | LINK, (R.H.) | F61569- | |
| 2 | 42N-856-3540NK | LINK, (L.H.) | F61569- | |
| 3 | 42N-856-1760 | PIN | F61569- | |
| 4 | 37A-09-3Y037 | WASHER | F61569- | |
| 5 | 37A-09-3W505 | NUT | F61569- |
- Главная
- Каталог запчастей
- Экскаваторы погрузчики
- Wb93r 5e0 s/n f61569 up
- Work equipment
- Bucket link (with telescopic arm) (1/2)
Поиск по каталогу

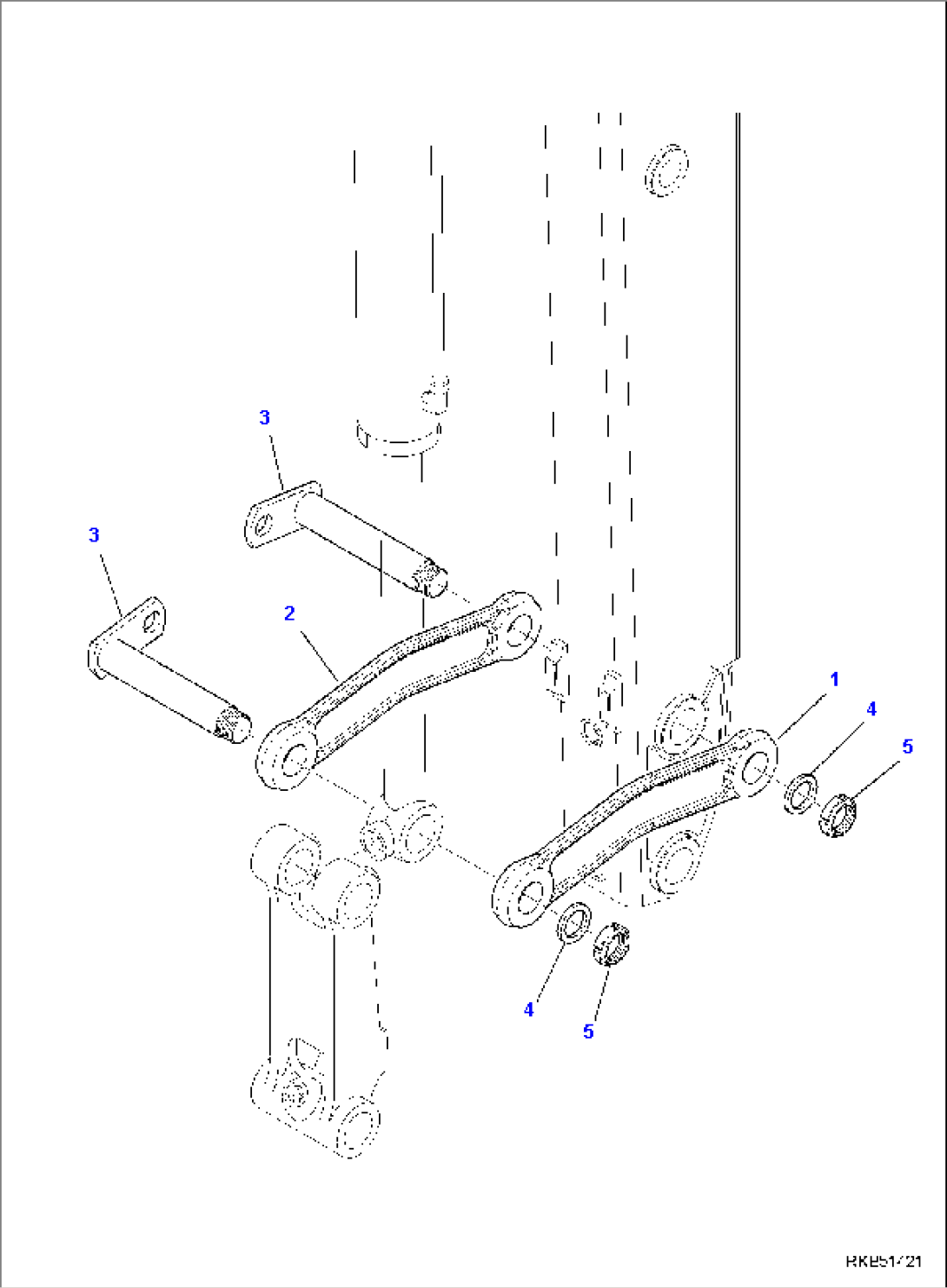

BUCKET LINK (WITH TELESCOPIC ARM) (1/2)
