| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-856-2850 | LEVER | F20003- | |
| 2 | 42N-856-2860 | LEVER | F20003- | |
| 3 | 42N-856-1760 | PIN | F20003- | |
| 4 | 37A-09-3Y037 | WASHER | F20003- | |
| 5 | 37A-09-3W505 | NUT | F20003- | |
| SEE FIG. 7430 |
- Главная
- Каталог запчастей
- Экскаваторы погрузчики
- Wb93s 5e0 s/n f20003 up
- Work equipment
- Bucket link (with telescopic arm) (1/2)
Поиск по каталогу

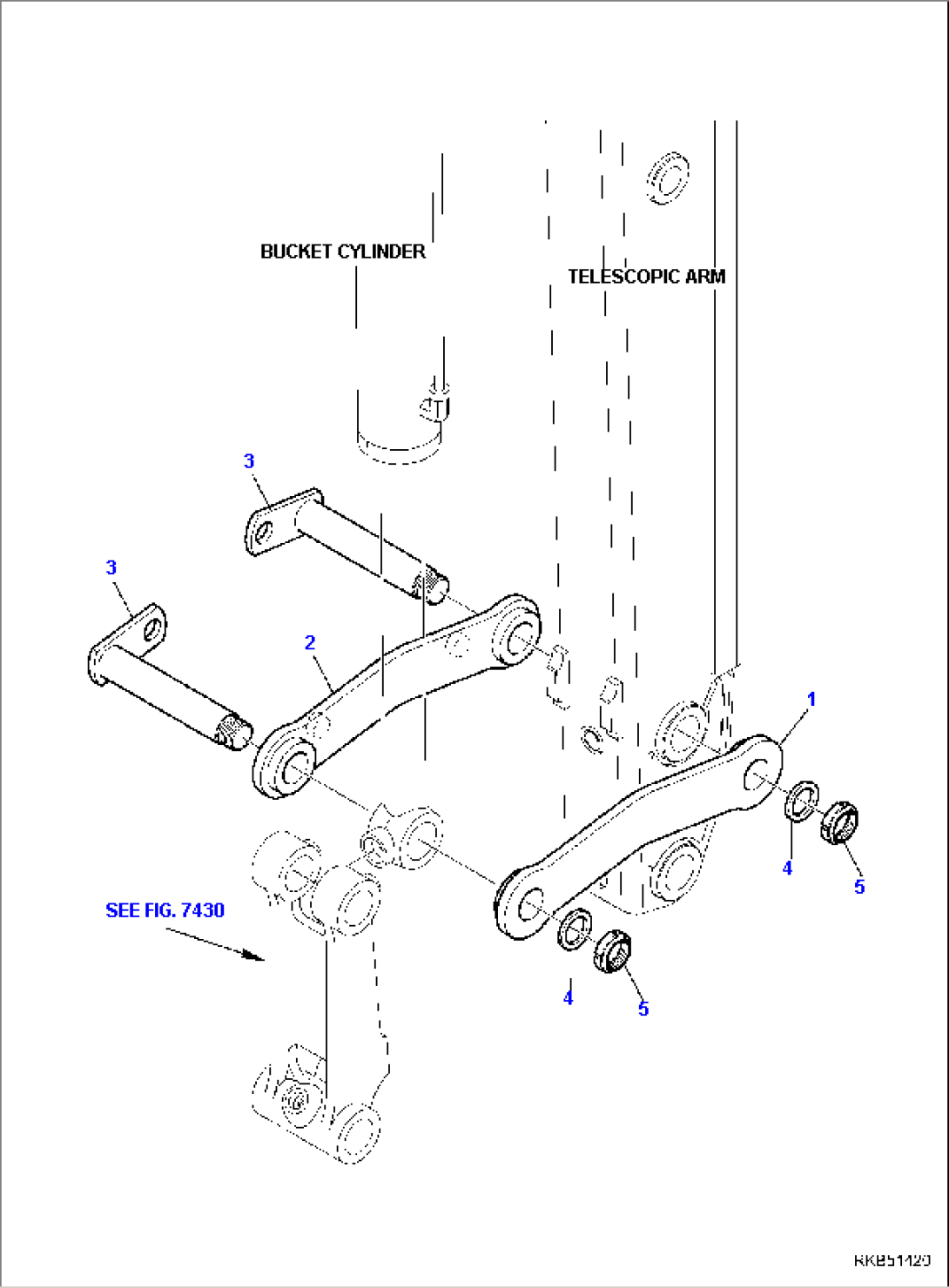

BUCKET LINK (WITH TELESCOPIC ARM) (1/2)
