| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-70-24440 | PIN,(H) | 16328- | |
| 2 | 01010-81080 | BOLT | 16328- | |
| 3 | 01580-31008 | NUT | 16328- | |
| 4 | 20U-70-24910 | PIPE,(KN¤Y¤H) | 16328- | |
| 5 | 20U-70-24460 | PIN,(H) | 16328- | |
| 6 | 20U-70-24890 | PIN,RING | 16328- | |
| 7 | 20U-70-24850 | GUARD | 16328- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc50uu 2 s/n 8001 up
- Work equipment
- Bucket pin (multiple change) (h type bucket) (for khy coupler)(#16328 )
Поиск по каталогу

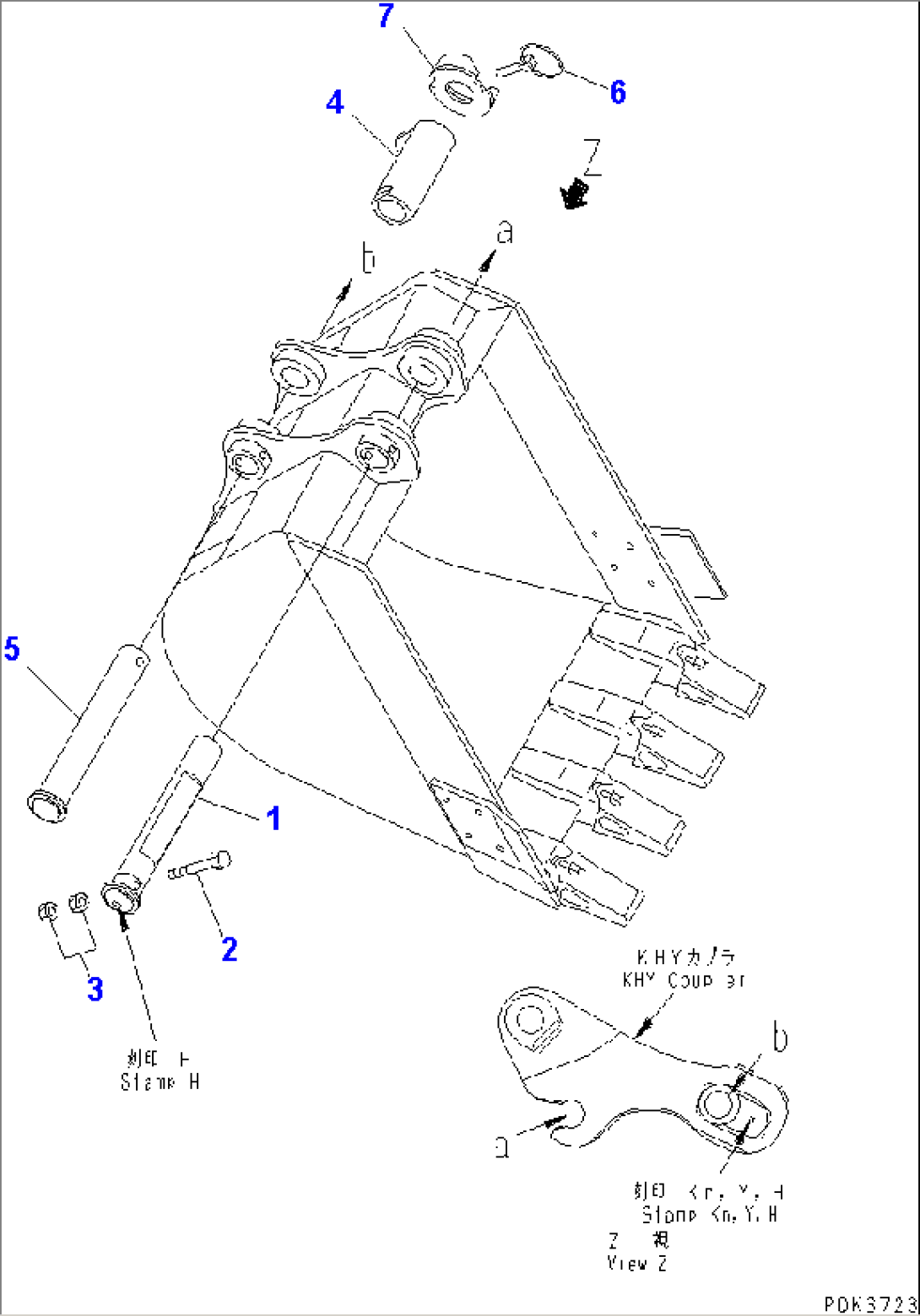

BUCKET PIN (MULTIPLE CHANGE) (H TYPE BUCKET) (FOR KHY COUPLER)(#16328-)
