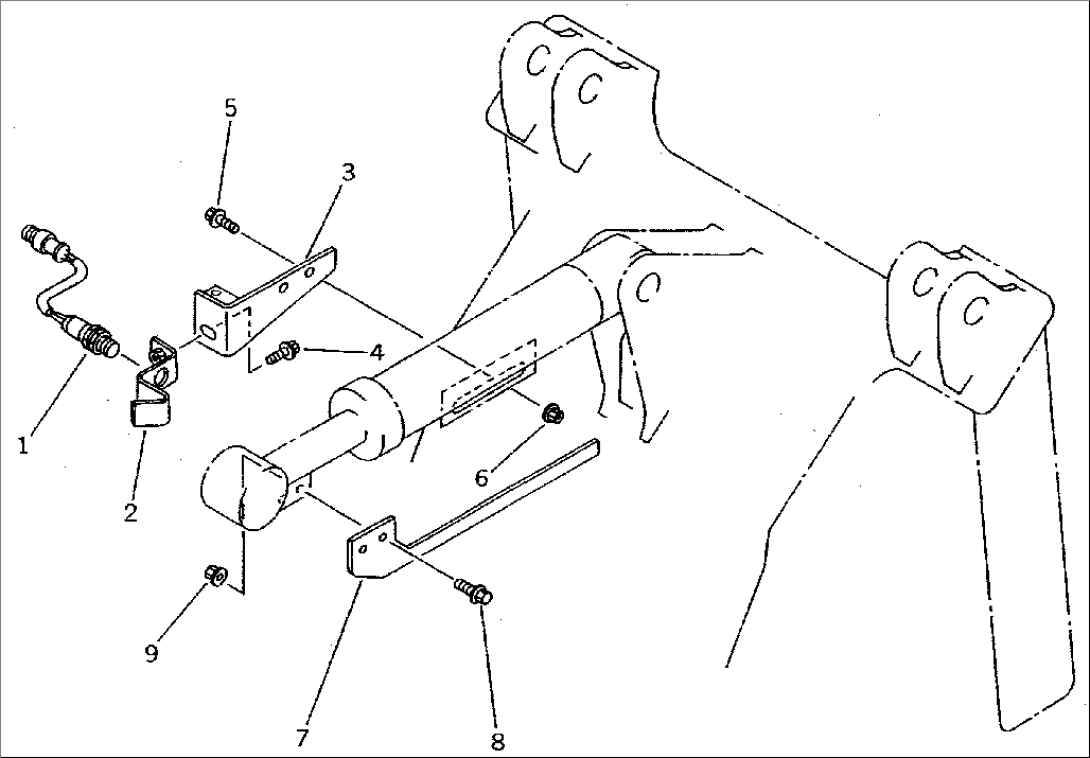

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-11166 | SWITCH,BUCKET POSITIONER | 12902- | |
| 1 | \0\421-06-11165 | SWITCH,BUCKET POSITIONER | 12001-12901 | |
| 2 | 417-43-19151 | SUPPORT | 12001- | |
| 3 | 415-V94-1110 | BRACKET | 12001- | |
| 4 | 01435-01220 | BOLT | 12001- | |
| 5 | 01435-01225 | BOLT | 12001- | |
| 6 | 01584-01210 | NUT | 12001- | |
| 7 | 417-43-19131 | BAR | 12001- | |
| 7 | 415-883-1210 | BAR,(FOR LUMBER FORK) | 12001- | |
| 7 | 415-883-1210 | BAR,(FOR DUMPING FORK) | 12001- | |
| 8 | 01435-01230 | BOLT | 12001- | |
| 9 | 01584-01210 | NUT | 12001- |
