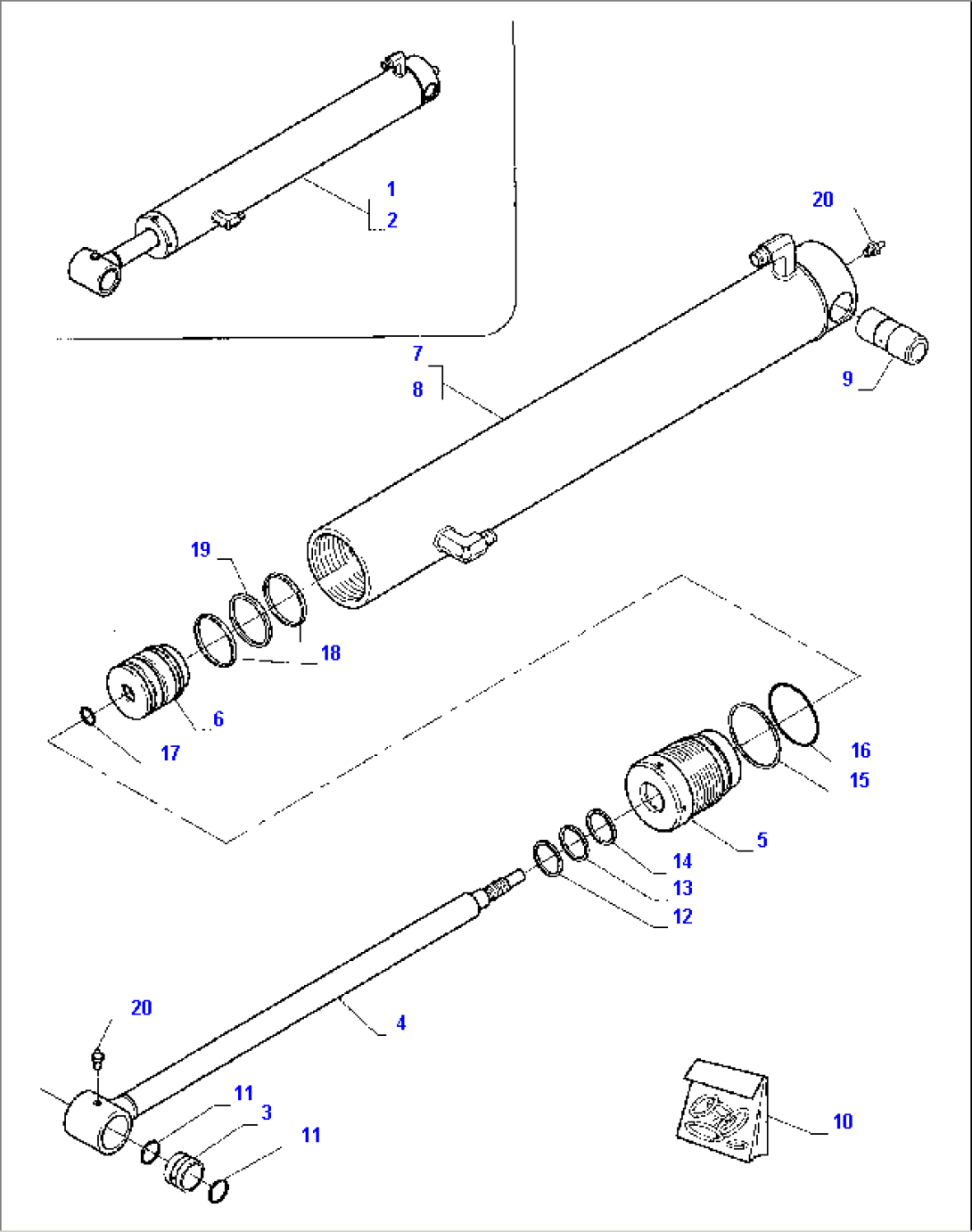

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 395013014 | DUMP CYLINDER, R.H. | F10001- | |
| 2 | 395013013 | DUMP CYLINDER, L.H. | F10001- | |
| 3 | 390601049 | BUSHING | F10001- | |
| 4 | 395180016 | PISTON ROD | F10001- | |
| 5 | 395300016 | CYLINDER HEAD | F10001- | |
| 6 | 395270016 | PISTON | F10001- | |
| 7 | 395052013 | R.H. CYLINDER | F10001- | |
| 8 | 395054013 | L.H. CYLINDER | F10001- | |
| 9 | 390601052 | BUSHING | F10001- | |
| 10 | 878000452 | KIT, GASKET | F10001- | |
| 11 | \6\ | GASKET | F10001- | |
| 12 | \6\ | GASKET | F10001- | |
| 13 | \6\ | GASKET | F10001- | |
| 14 | \6\ | GASKET | F10001- | |
| 15 | \6\ | RING, WEAR | F10001- | |
| 16 | \6\ | O-RING | F10001- | |
| 17 | \6\ | O-RING | F10001- | |
| 18 | \6\ | PACKING ROD | F10001- | |
| 19 | \6\ | GASKET | F10001- | |
| 20 | 860010007 | FITTING | F10001- |
