| Item | Part No. | Part Name | Qty | Serial No. |

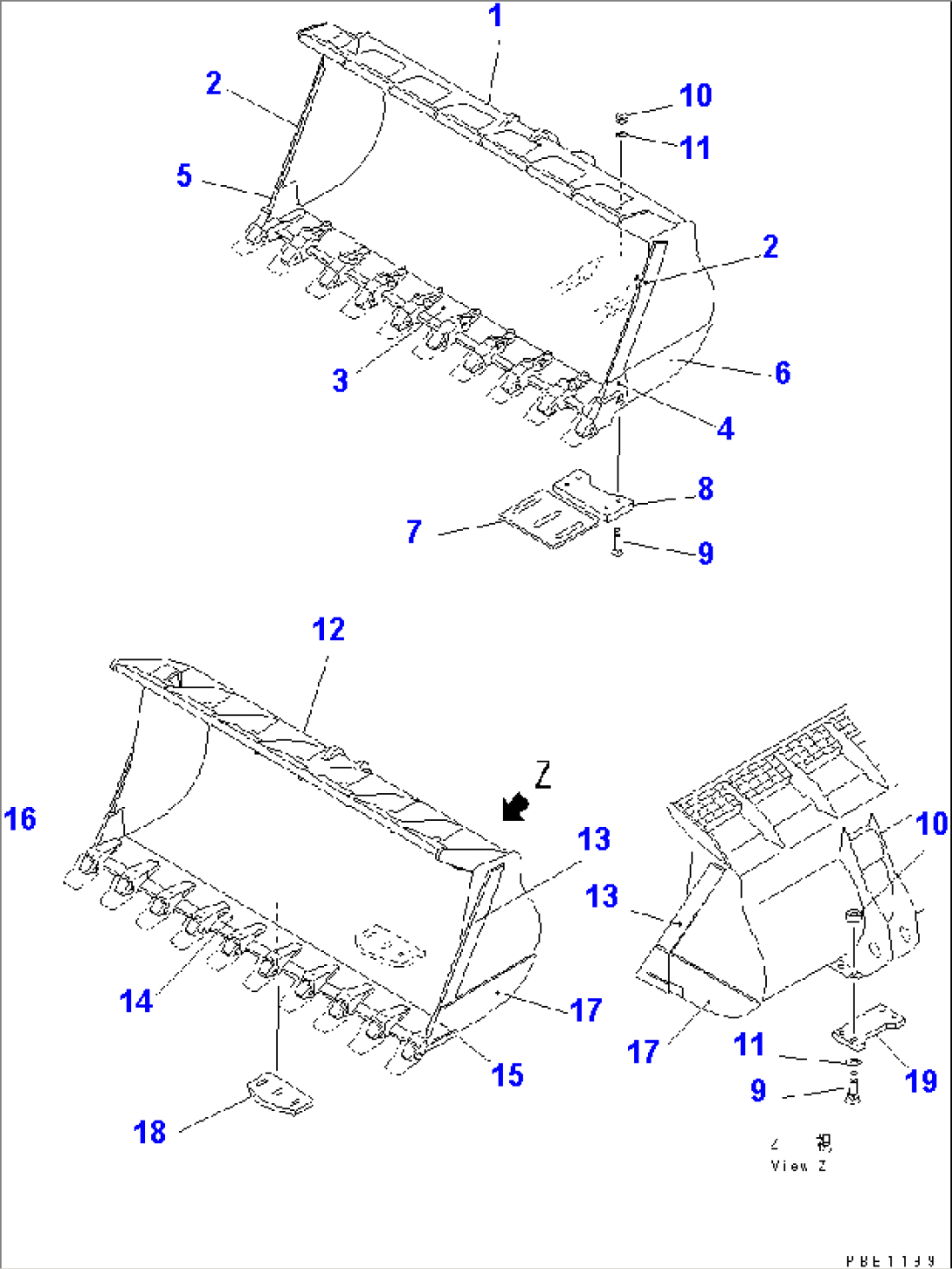

| EXCAVATING BUCKET{(WITH BOLT ON TYPE TOOTH)} | ||||
| 5.4M3 BUCKET | ||||
| 1 | 426-V67-1111 | BUCKET ASS'Y | 10865- | |
| 2 | 426-806-1131 | PLATE (WELDED) | 10865- | |
| 3 | 426-V67-1120 | EDGE (WELDED) | 10865- | |
| 426-V67-1130 | PLATE (WELDED) | 10865- | ||
| 4 | 426-70-12450 | CORNER,L.H. (WELDED) | 10865- | |
| 5 | 426-70-12460 | CORNER,R.H. (WELDED) | 10865- | |
| 6 | 426-806-1180 | PLATE (WELDED) | 10865- | |
| 7 | 426-70-12190 | PLATE (WELDED) | 10865- | |
| 8 | 426-70-12141 | PLATE | 10865- | |
| 9 | 02090-11475 | BOLT | 10865- | |
| 10 | 02290-11422 | NUT | 10865- | |
| 11 | 01643-32460 | WASHER | 10865- | |
| EXCAVATING BUCKET{(W/ADAPTER WELDED TYPE TOOTH)} | ||||
| 5.4M3 BUCKET | ||||
| 12 | 426-807-1112 | BUCKET ASS'Y | 10865- | |
| 13 | 426-806-1131 | PLATE (WELDED) | 10865- | |
| 14 | 426-807-1120 | EDGE (WELDED) | 10865- | |
| 15 | 426-807-1151 | PLATE,L.H. (WELDED) | 10865- | |
| 16 | 426-807-1161 | PLATE,R.H. (WELDED) | 10865- | |
| 17 | 426-807-1180 | PLATE (WELDED) | 10865- | |
| 18 | 426-70-12192 | PLATE (WELDED) | 10865- | |
| 19 | 426-70-12142 | PLATE | 10865- |
