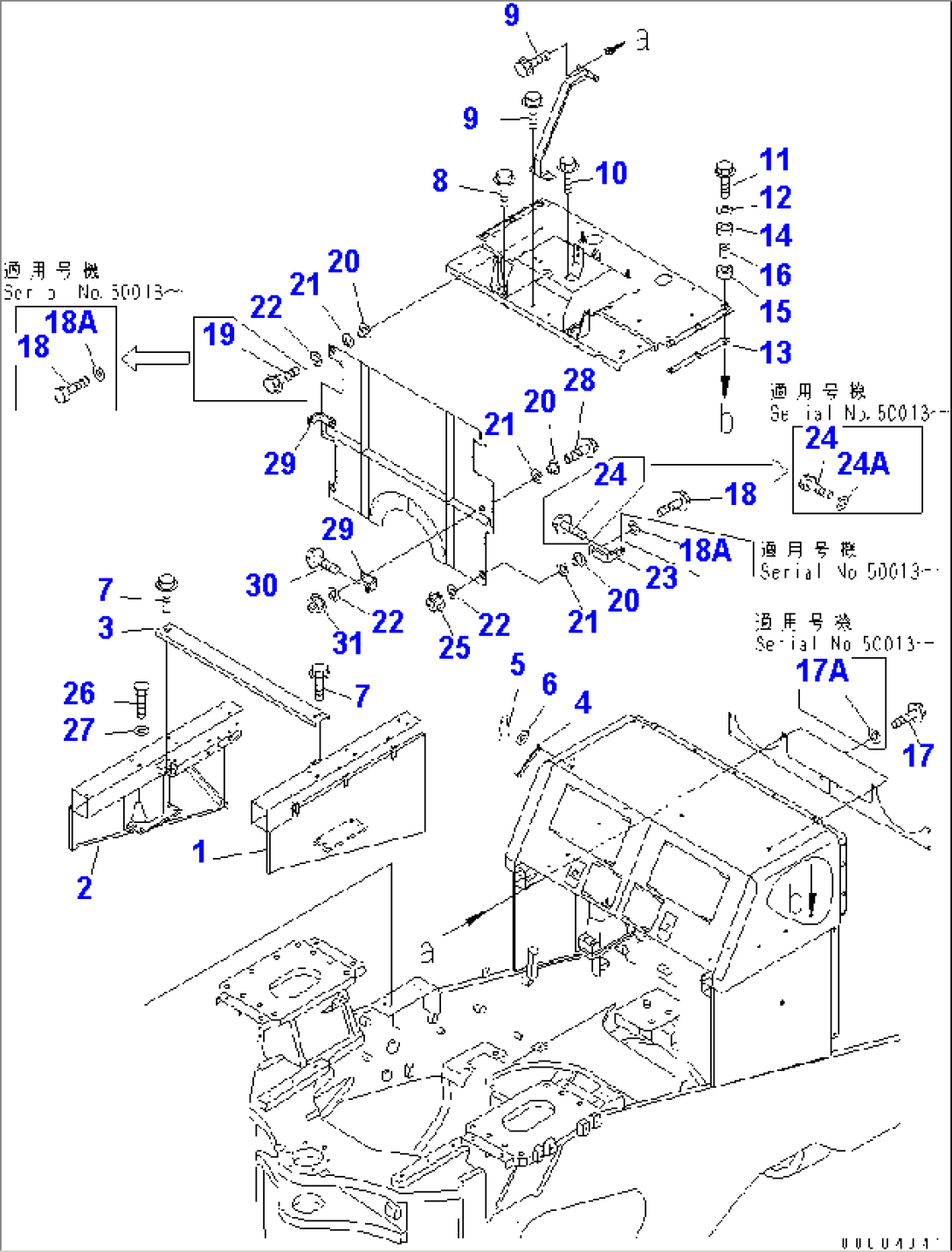

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-54-21432 | COVER | 50013-50022 | |
| 427-54-21431 | COVER,L.H. | 50001-50012 | ||
| 2 | 427-54-21442 | COVER,R.H. | 50001-50022 | |
| 3 | 427-54-21421 | PLATE | 50001-50022 | |
| 4 | 428-54-21420 | BAR | 50001-@ | |
| 5 | 04052-10833 | PIN | 50001-@ | |
| 6 | 01641-20812 | WASHER | 50001-50022 | |
| 7 | 01435-01225 | BOLT | 50001-50022 | |
| 8 | 01435-01225 | BOLT | 50001-50022 | |
| 9 | 01435-01225 | BOLT | 50001-50022 | |
| 10 | 01435-00816 | BOLT | 50001-50022 | |
| 11 | 01435-01250 | BOLT | 50001-@ | |
| 12 | 419-43-17920 | WASHER | 50001-@ | |
| 13 | 427-54-21710 | CUSHION | 50001-@ | |
| 14 | 427-54-21720 | CUSHION | 50001-@ | |
| 15 | 427-54-21730 | CUSHION | 50001-@ | |
| 16 | 427-54-21740 | SPACER | 50001-@ | |
| 17 | 01010-81230 | BOLT | 50013-@ | |
| 01435-01225 | BOLT | 50001-50012 | ||
| 17A | 01643-31232 | WASHER | 50013-@ | |
| 18 | 01010-81230 | BOLT | 50013-@ | |
| 01435-01245 | BOLT | 50001-50012 | ||
| 18A | 01643-31232 | WASHER | 50013-@ | |
| 19 | 01435-01235 | BOLT | 50001-50022 | |
| 20 | 427-54-11860 | SPACER | 50001-@ | |
| 21 | 415-46-11380 | CUSHION | 50001-@ | |
| 22 | 01640-22232 | WASHER | 50001-@ | |
| 23 | 427-54-21411 | PLATE | 50001- | |
| 24 | 01010-81230 | BOLT | 50013-@ | |
| 01435-01230 | BOLT | 50001-50012 | ||
| 24A | 01643-31232 | WASHER | 50013-@ | |
| 25 | 01584-01210 | NUT | 50001- | |
| 26 | 01010-81645 | BOLT | 50001- | |
| 27 | 01643-31645 | WASHER | 50001- | |
| 28 | 01435-01240 | BOLT | 50001- | |
| 29 | 427-54-21670 | BRACKET | 50001- | |
| 30 | 01435-01230 | BOLT | 50001- | |
| 31 | 01584-01210 | NUT | 50001- |
