| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07030-00252 | BREATHER | 50001- | |
| 2 | 22T-49-12330 | BLOCK | 50001- | |
| 3 | 01435-01016 | BOLT | 50001- | |
| 4 | 07261-20915 | HOSE | 52001- | |
| 5 | 07281-00197 | CLAMP | 50001- | |
| 6 | 04434-51610 | CLIP | 52001- | |
| 7 | 01435-01016 | BOLT | 52001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Guard
- Bulkhead (breather and piping)(#52001 )
Поиск по каталогу

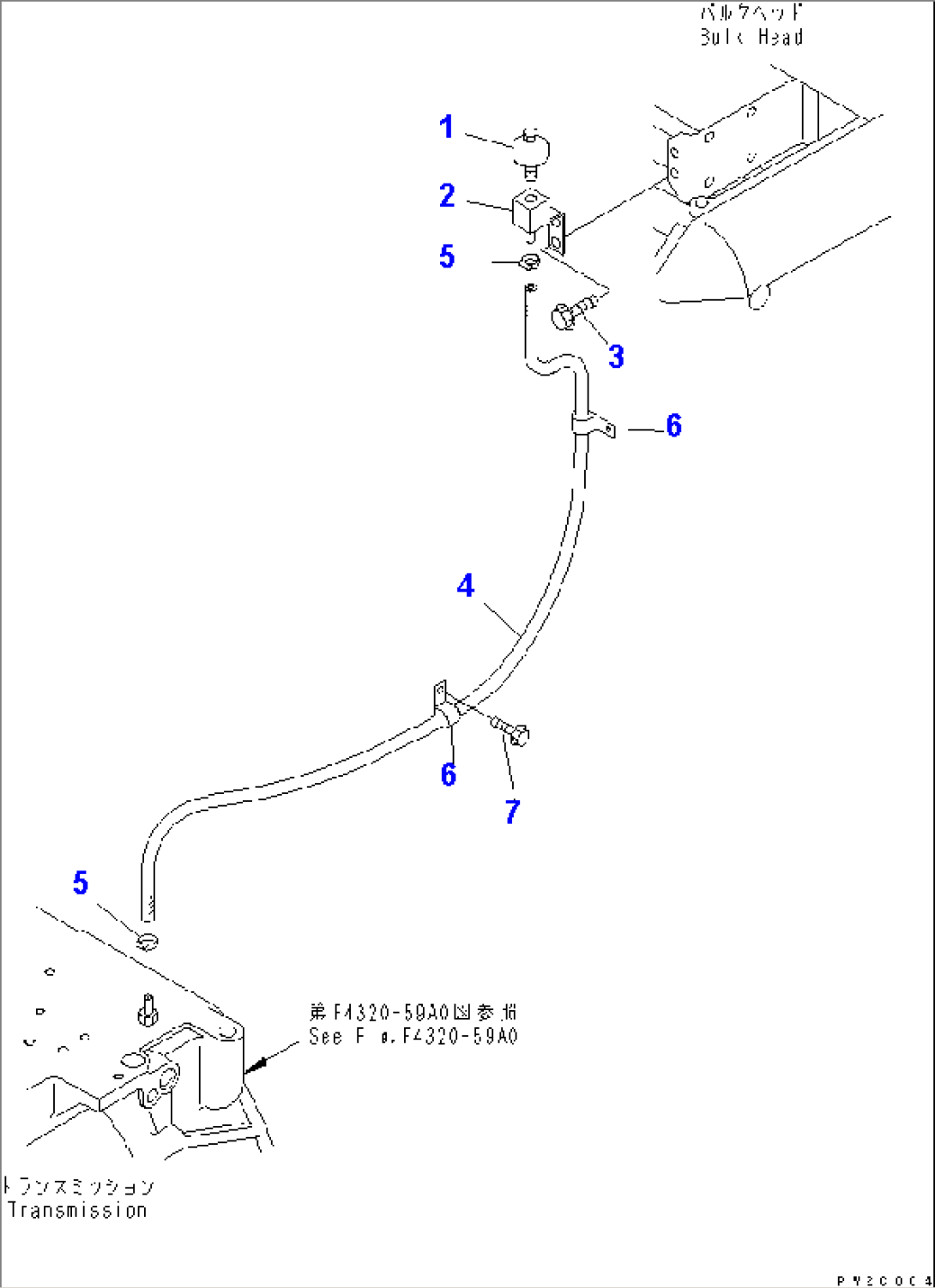

BULKHEAD (BREATHER AND PIPING)(#52001-)
