| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-06-22930 | WIRING HARNESS | 63001- | |
| 08020-10000 | DIODE | 63001- | ||
| 2 | 08036-01014 | CLIP | 63001- | |
| 3 | 01435-01016 | BOLT | 63001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa350 3 h s/n 63001 up
- Guard
- Bulkhead (bulkhead harness)
Поиск по каталогу

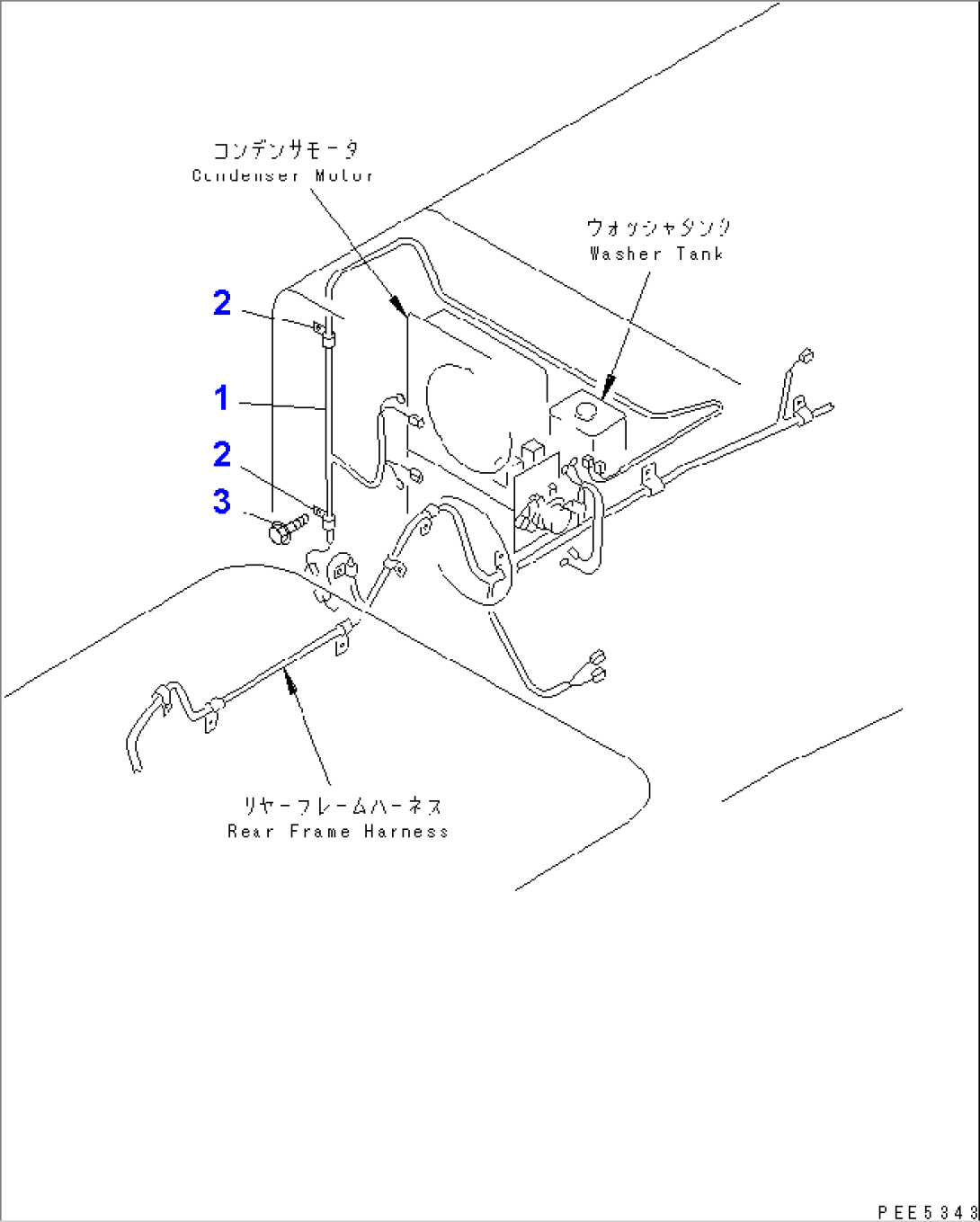

BULKHEAD (BULKHEAD HARNESS)
