| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-Z84-3640 | COVER,L.H. | 51075- | |
| 2 | 428-Z84-3650 | COVER,R.H. | 51075- | |
| 3 | 01010-81230 | BOLT | 51075- | |
| 4 | 01643-31232 | WASHER | 51075- | |
| 5 | 09415-02512 | CAP | 51075- | |
| 6 | 01010-81635 | BOLT | 51075- | |
| 7 | 01643-31645 | WASHER | 51075- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa700 3 s/n 50001 up (tbg spec.)
- Guard
- Bulkhead (bulkhead mounting cover)(#51075 )
Поиск по каталогу

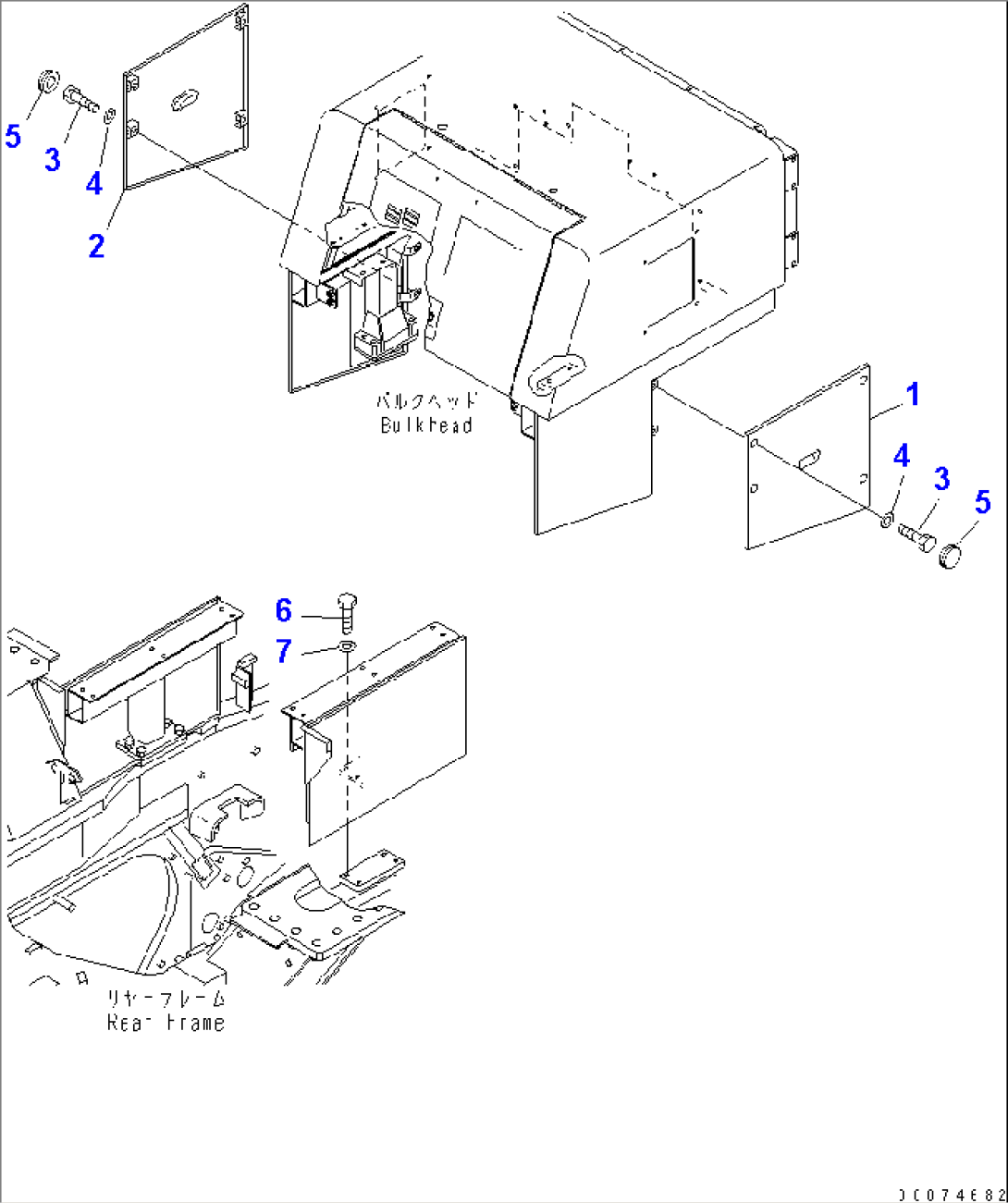

BULKHEAD (BULKHEAD MOUNTING COVER)(#51075-)
