| Item | Part No. | Part Name | Qty | Serial No. |
| (633 276 C91) | BULLDOZER STRUTS | |||

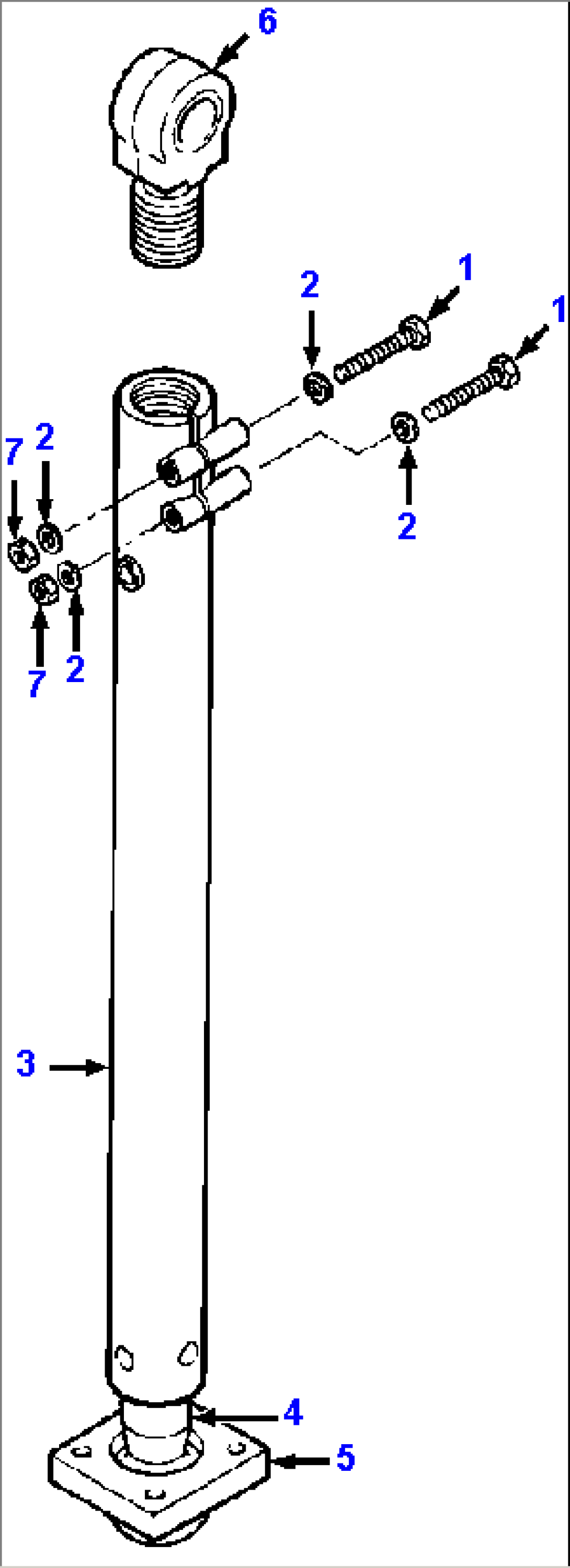

| (717 772 C91) | STRUT ASSY, DIAGONAL | |||
| 1 | 24 896 R1 | BOLT, MOUNTING - 3/4NCx5 | ||
| 2 | 25 538 R1 | WASHER, FLAT - 3/4 | ||
| 717 773 C91 | BODY ASSY, DIAGONAL STRUT | |||
| 3 | (NSS) | BODY, STRUT | ||
| 4 | 605 631 C2 | BALL, STRUT | ||
| 5 | 656 321 C1 | CAP, STRUT BALL | ||
| 6 | 717 775 C1 | EYE BOLT | ||
| 7 | 9413 983 | NUT, LOCK - 3/4NC | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
