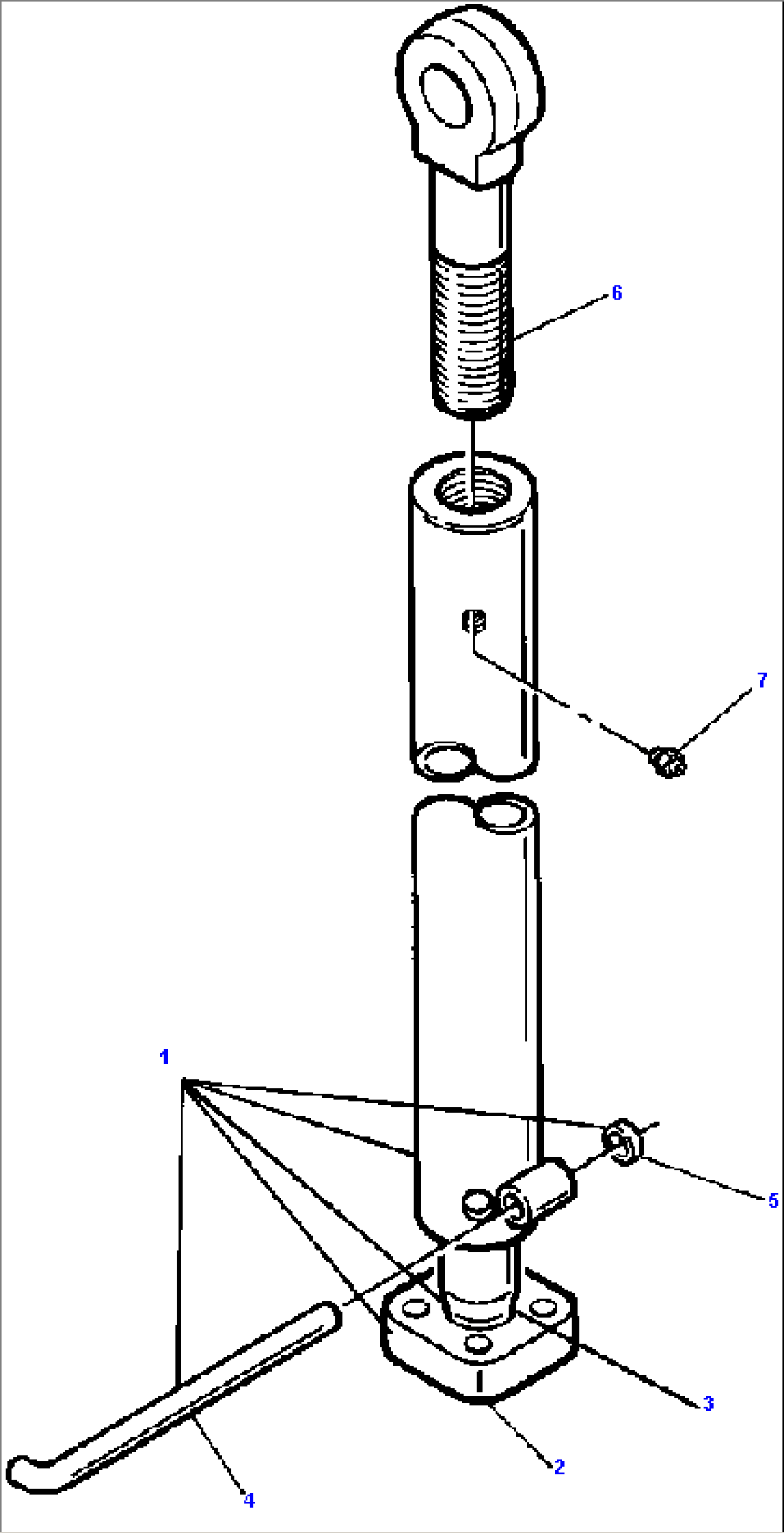

| Item | Part No. | Part Name | Qty | Serial No. |
| (NS) | STRUT ASSEMBLY, UPPER | |||
| 1 | 628 850 C1 | BODY ASSEMBLY, UPPER STRUT | ||
| 2 | 656 321 C1 | CAP, STRUT BALL | ||
| 3 | 605 631 C2 | BALL, STRUT | ||
| 4 | 315 177 R1 | PIN, LOCK | ||
| 5 | M73 125 | COLLAR, LOCK PIN | ||
| 6 | 628 853 C1 | EYE BOLT, STRUT | ||
| 7 | 109 461 | FITTING, LUBRICATION | ||
| F1 - QUANTITY TWO FOR MACHINES WITHOUT BLADE TILT; QUANTITY ONE FOR | ||||
| MACHINES WITH BLADE TILT |
