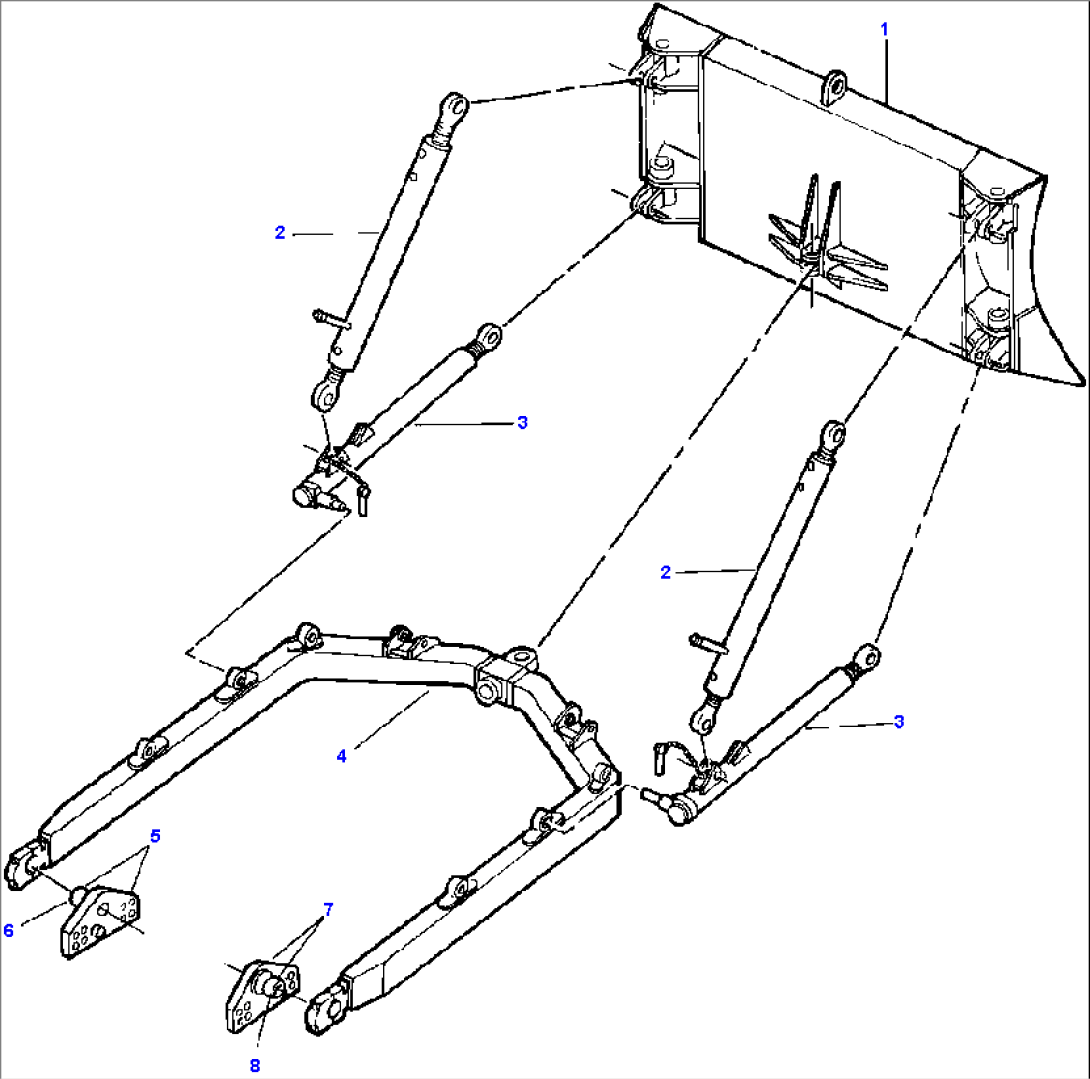

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BLADE, BULLGRADER (SEE PG 17-024) | |||
| 2 | STRUT, UPPER (SEE PG 17-040) | |||
| 3 | STRUT, LOWER (SEE PG 17-036) | |||
| 4 | FRAME, C (SEE PG 17-042) | |||
| 5 | 628 843 C2 | TRUNNION ASSEMBLY, C FRAME - LH | ||
| 25 894 R1 | BOLT, MOUNTING | |||
| 25 540 R1 | WASHER, FLAT | |||
| 6 | 628 845 C2 | BALL, TRUNNION | ||
| 7 | 628 844 C2 | TRUNNION ASSEMBLY, C FRAME - RH | ||
| 25 894 R1 | BOLT, MOUNTING | |||
| 25 540 R1 | WASHER, FLAT | |||
| 8 | 628 845 C2 | BALL, TRUNNION | ||
| F1 - FOR MACHINES WITHOUT BLADE TILT | ||||
| F2 - FOR MACHINES WITH BLADE TILT | ||||
