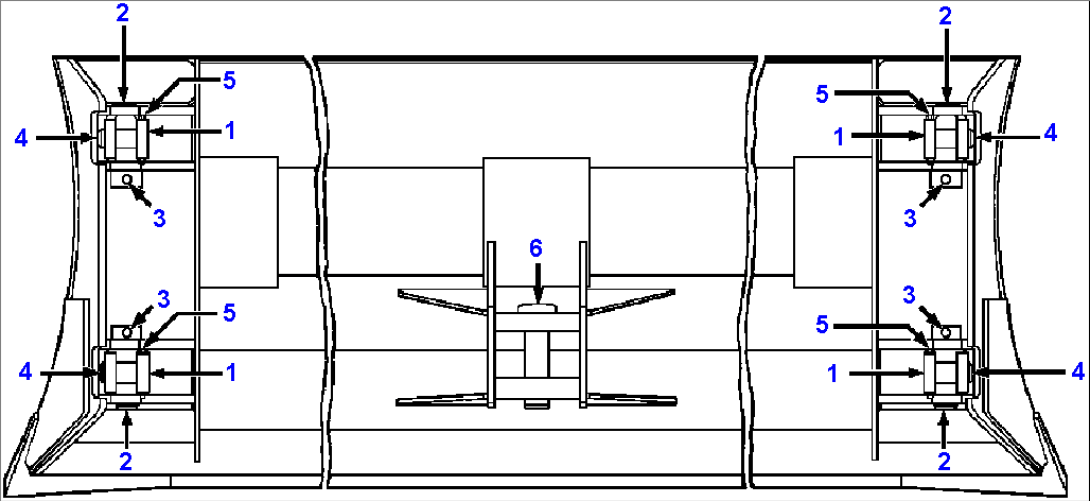

| Item | Part No. | Part Name | Qty | Serial No. |
| 633 274 C91 | PACKAGE, GRADER BLADE PINS | |||
| 1 | 317 490 R1 | SWIVEL, STRUT MOUNTING | ||
| 2 | 317 491 R1 | PIN, SWIVEL TO BLADE | ||
| 3 | 25 511 R1 | BOLT, MOUNTING - 5/8NCx4-1/4 | ||
| 9412 231 | NUT, LOCK - 5/8NC | |||
| 4 | 319 041 R1 | PIN, SWIVEL TO STRUTS | ||
| 5 | 25 293 R1 | BOLT, MOUNTING - 1/2NCx5-1/2 | ||
| 9412 230 | NUT, LOCK - 1/2NC | |||
| 6 | 600 670 C2 | PIN, BLADE TO SWIVEL | ||
| 600 669 C1 | PIN, HEADED | |||
| 137 185 | PIN, COTTER |
