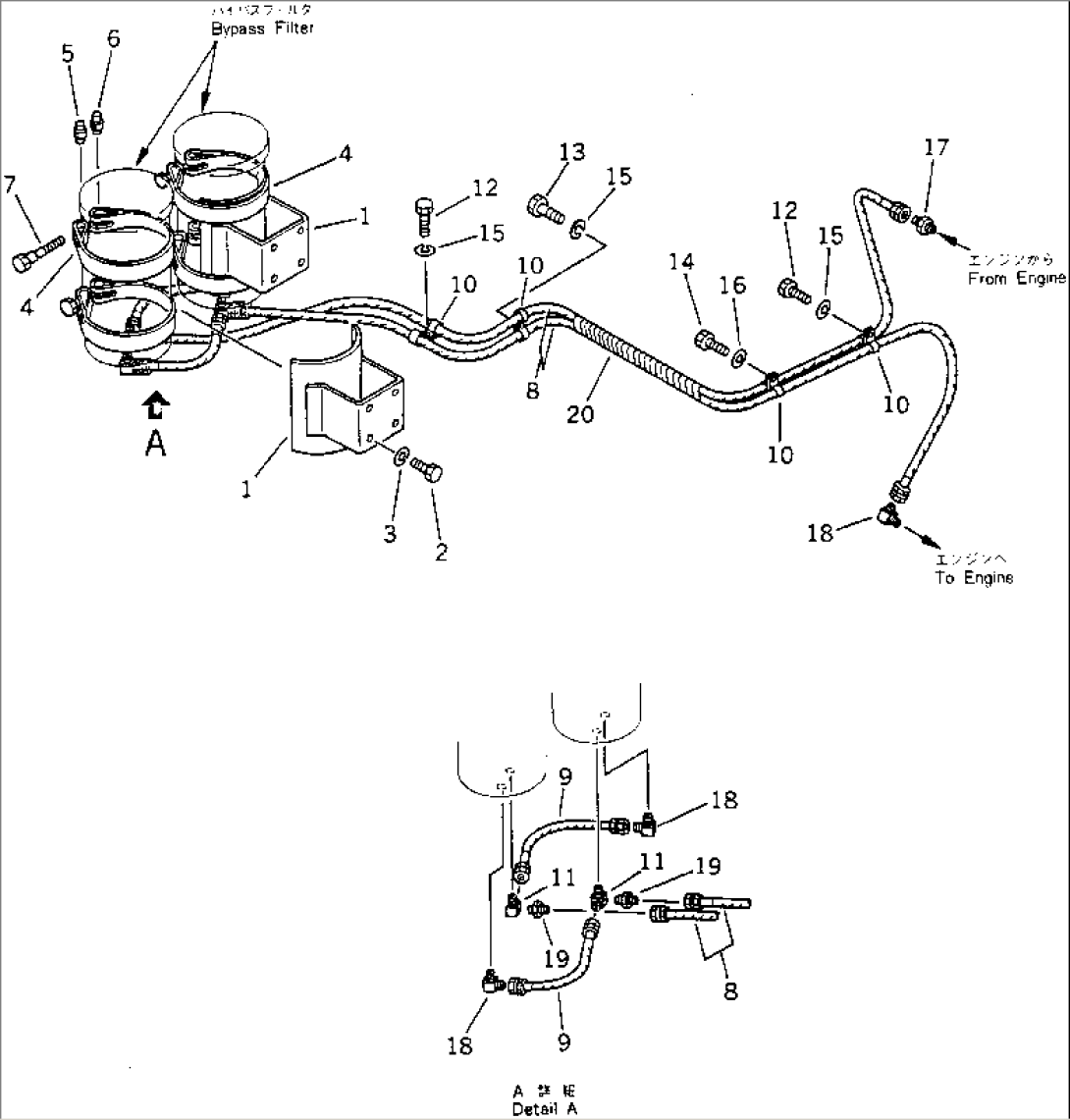

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-01-29121 | BRACKET | 1002- | |
| 2 | 01010-51225 | BOLT | 1002- | |
| 3 | 01602-21236 | WASHER | 1002- | |
| 4 | 6691-21-6540 | BAND | 1002- | |
| 5 | 6691-21-6550 | PIN | 1002- | |
| 6 | 6691-21-6560 | PIN¤ WITH THREAD | 1002- | |
| 7 | 6643-11-4641 | BOLT | 1002- | |
| 8 | 07102-20426 | HOSE | 1002- | |
| 9 | 07102-21403 | HOSE | 1002- | |
| 10 | 08036-02514 | CLIP | 1002- | |
| 11 | 561-01-38120 | ELBOW | 1002- | |
| 12 | 01010-51016 | BOLT | 1002- | |
| 13 | 02010-70613 | BOLT | 1002- | |
| 14 | 02010-70716 | BOLT | 1002- | |
| 15 | 01602-21030 | WASHER | 1002- | |
| 16 | 01602-31236 | WASHER | 1002- | |
| 17 | 561-01-38140 | NIPPLE | 1002- | |
| 18 | 561-01-38130 | ELBOW | 1002- | |
| 19 | 07238-00422 | CONNECTOR | 1002- | |
| 20 | 565-04-11420 | TUBE | 1002- |
