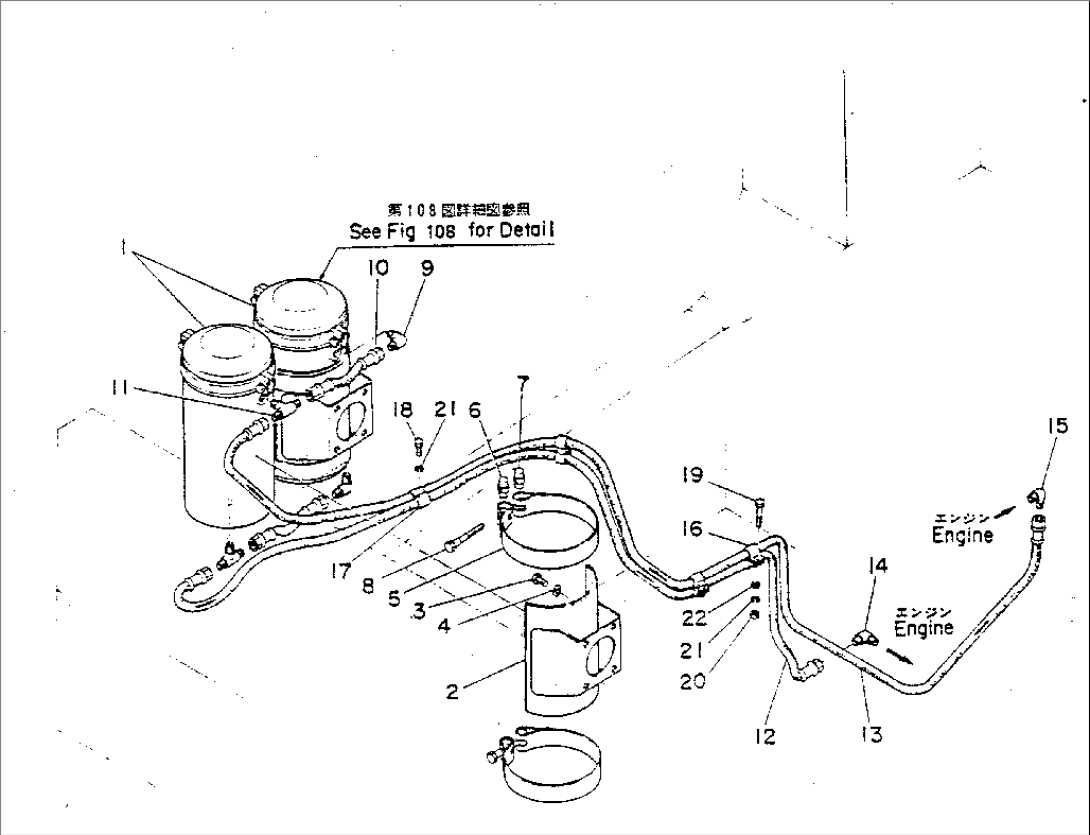

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (6610-51-5010) | BYPASS FILTER A. | 1002-1054 | |
| 2 | 568-01-29120 | BRACKET | 1002-1054 | |
| 3 | 01010-51220 | BOLT | 1002-1054 | |
| 4 | 01602-21236 | WASHER | 1002-1054 | |
| 5 | 6691-21-6540 | BAND | 1002-1054 | |
| 6 | 6691-21-6550 | PIN | 1002-1054 | |
| 7 | 6691-21-6560 | PIN, WITH THREAD | 1002-1054 | |
| 8 | 6643-11-4641 | BOLT | 1002-1054 | |
| 9 | 02701-01406 | ELBOW | 1002-1054 | |
| 10 | 02750-04030 | HOSE | 1002-1054 | |
| 11 | 568-01-29210 | TEE | 1002-1054 | |
| 12 | 02750-04260 | HOSE | 1002-1054 | |
| 13 | 02750-04360 | HOSE | 1002-1054 | |
| 14 | 02700-01408 | ELBOW | 1002-1054 | |
| 15 | 02701-01412 | ELBOW | 1002-1054 | |
| 16 | 08036-01814 | CLIP | 1002-1054 | |
| 17 | 08036-02514 | CLIP | 1002-1054 | |
| 18 | 01010-51016 | BOLT | 1002-1054 | |
| 19 | 01010-51050 | BOLT | 1002-1054 | |
| 20 | 01580-11008 | NUT | 1002-1054 | |
| 21 | 01602-21030 | WASHER | 1002-1054 | |
| 22 | 01640-21016 | WASHER | 1002-1054 |
