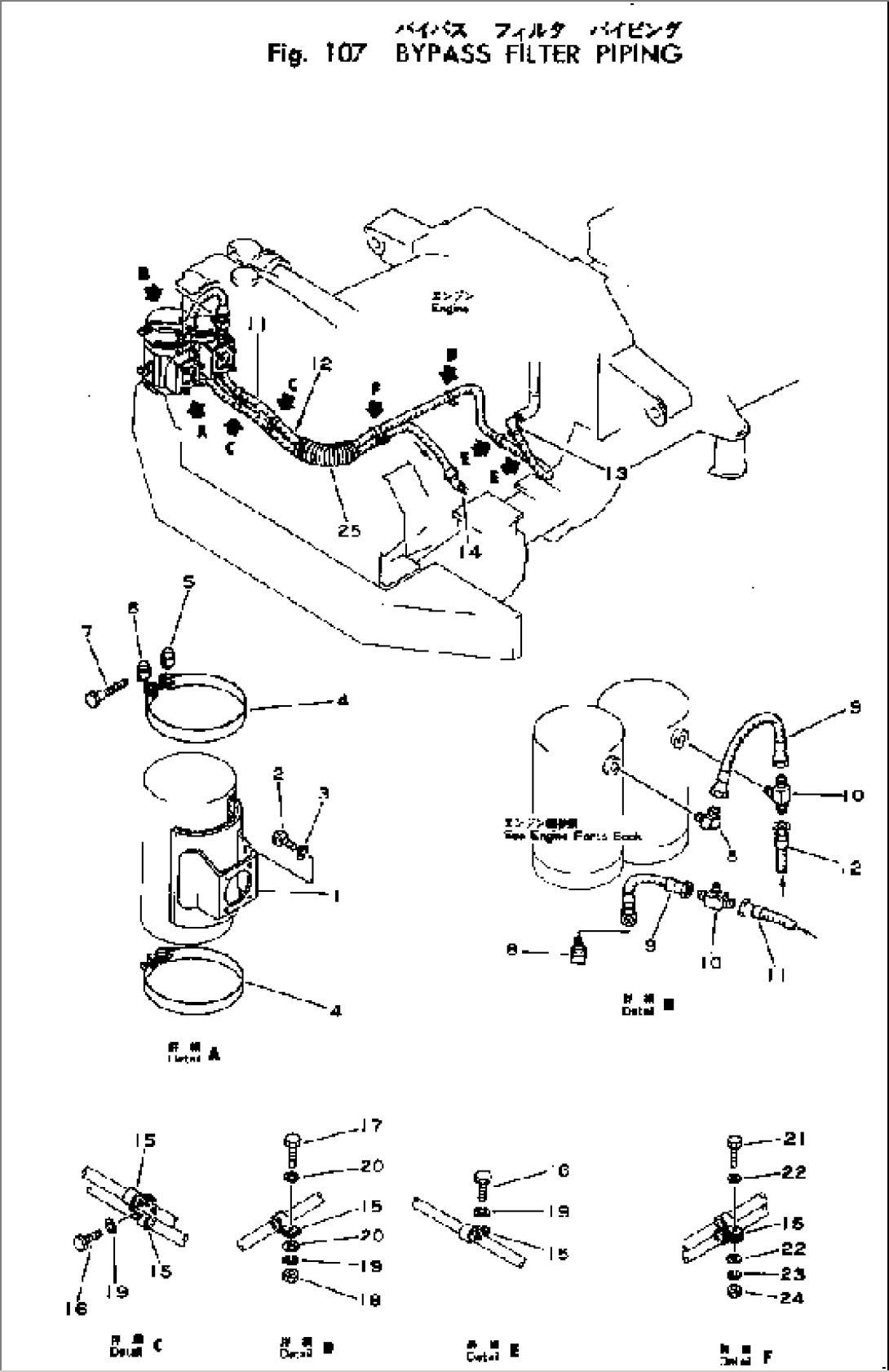

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-01-29121 | BRACKET | 1069- | |
| 568-01-29120 | BRACKET | 1002-1068 | ||
| 2 | 01010-51225 | BOLT | 1002- | |
| 3 | 01602-21236 | WASHER | 1002- | |
| 4 | 6691-21-6540 | BAND | 1002- | |
| 5 | 6691-21-6550 | PIN | 1002- | |
| 6 | 6691-21-6560 | PIN¤ WITH THREAD | 1002- | |
| 7 | 6643-11-4641 | BOLT | 1002- | |
| 8 | 484-98-16120 | ELBOW | 1002- | |
| 9 | 07102-20403 | HOSE | 1002- | |
| 10 | 569-01-18120 | TEE | 1002- | |
| 11 | 07102-20415 | HOSE | 1002- | |
| 12 | 07102-20433 | HOSE | 1002- | |
| 13 | 6691-51-9941 | ELBOW | 1002- | |
| 14 | 569-01-18110 | ELBOW | 1002- | |
| 15 | 08036-02514 | CLIP | 1002- | |
| 16 | 01010-51016 | BOLT | 1002- | |
| 17 | 01010-51050 | BOLT | 1002- | |
| 18 | 01580-11008 | NUT | 1002- | |
| 19 | 01602-21030 | WASHER | 1002- | |
| 20 | 01643-31032 | WASHER | 1002- | |
| 21 | 01010-51265 | BOLT | 1002- | |
| 22 | 01643-31232 | WASHER | 1002- | |
| 23 | 01602-21236 | WASHER | 1002- | |
| 24 | 01580-11210 | NUT | 1002- | |
| 25 | 565-04-11420 | TUBE | 1002- |
