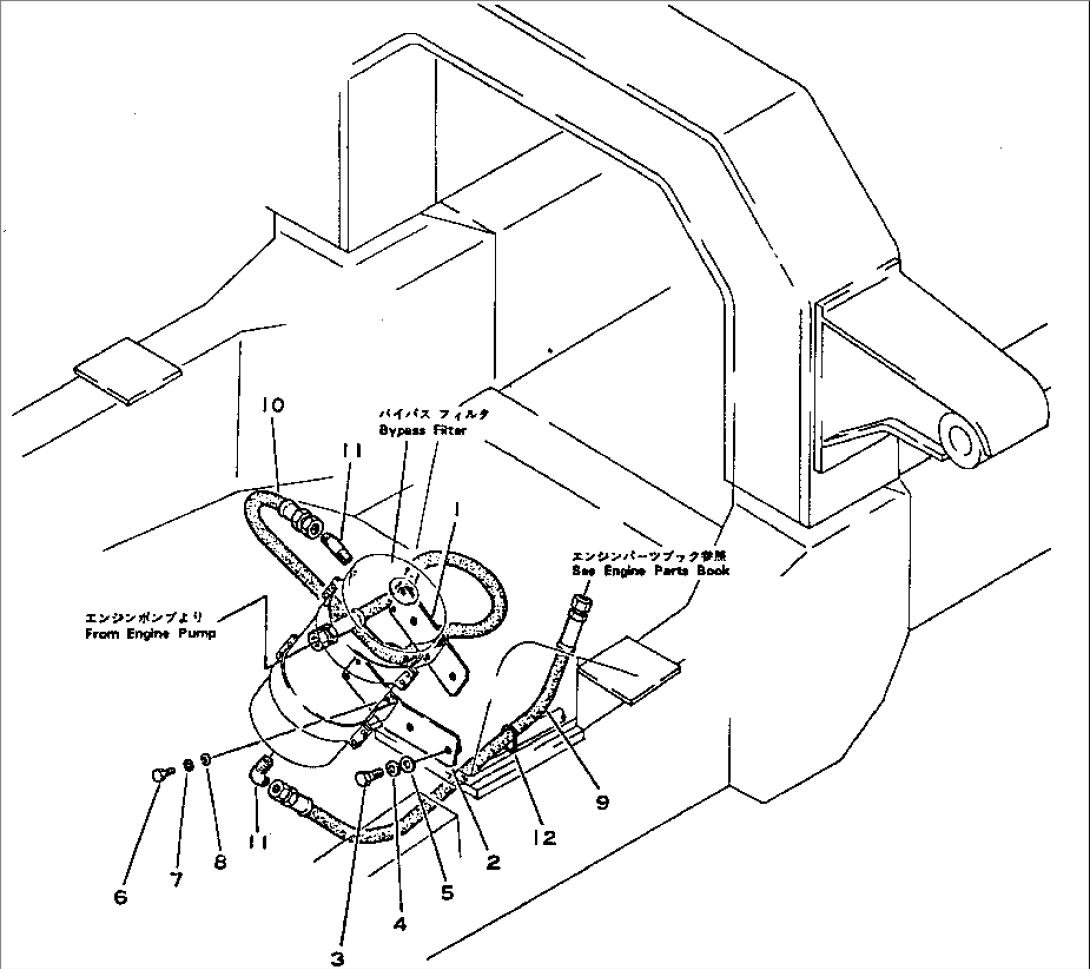

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-01-16230 | PLATE | 1005-1409 | |
| 2 | 566-01-16240 | PLATE | 1005-1409 | |
| 3 | 01010-31225 | BOLT | 1005-1409 | |
| 4 | 01602-01236 | WASHER | 1005-1409 | |
| 5 | 01641-01223 | WASHER | 1005-1409 | |
| 6 | 01010-30825 | BOLT | 1005-1409 | |
| 7 | 01602-00825 | WASHER | 1005-1409 | |
| 8 | 01641-00812 | WASHER | 1005-1409 | |
| 9 | 07100-20413 | HOSE | 1005-1409 | |
| 10 | 07100-20411 | HOSE | 1005-1409 | |
| 11 | 6691-51-9951 | ELBOW | 1005-1409 | |
| 12 | 281-06-16760 | BAND | 1005-1409 |
