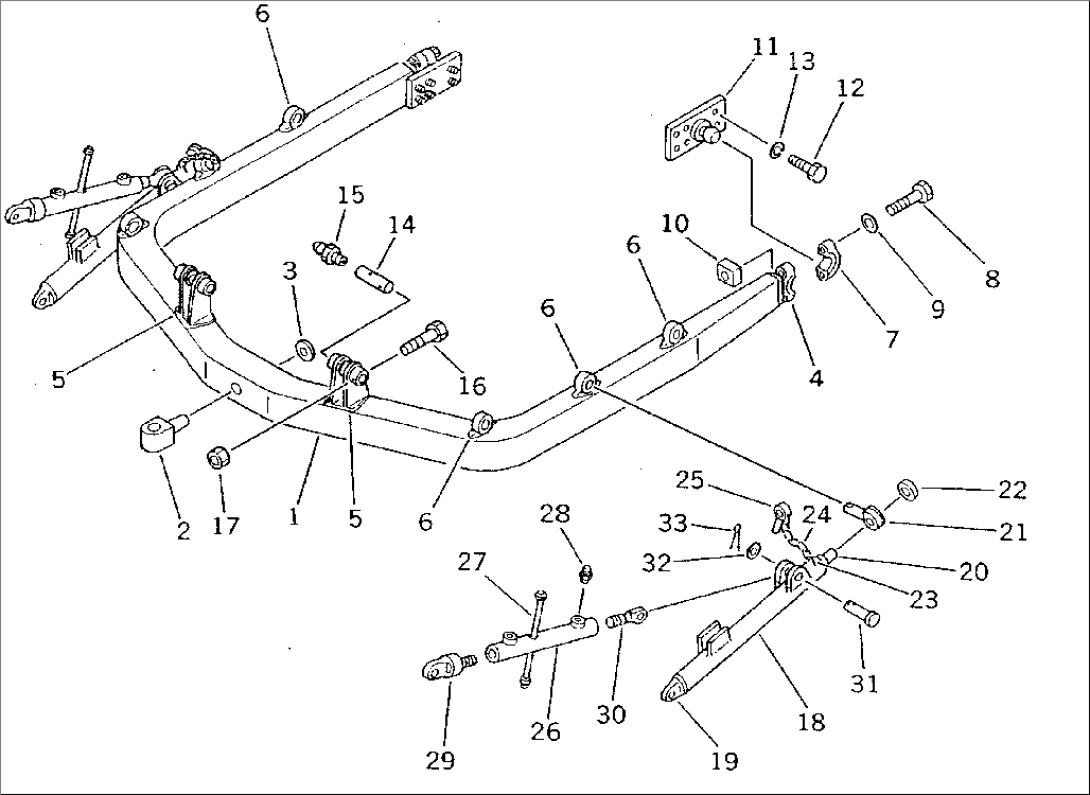

| Item | Part No. | Part Name | Qty | Serial No. |
| 104-Y40-2100 | C-FRAME ASS'Y | 75001- | ||
| 1 | \6\ | C-FRAME | 75001- | |
| 2 | 101-71-12140 | PIN (WELDED) | 75001- | |
| 3 | 101-71-12150 | COLLAR (WELDED) | 75001- | |
| 4 | \6\ | BEARING,(WELDED) (KIT) | 75001- | |
| 5 | 104-Y40-2120 | BRACKET,L.H. (WELDED) | 75001- | |
| 104-Y40-2130 | BRACKET,R.H. (WELDED) | 75001- | ||
| 6 | 101-71-12120 | BRACKET,L.H. (WELDED) | 75001- | |
| 101-71-12130 | BRACKET,R.H. (WELDED) | 75001- | ||
| 7 | 100-93-21170 | CAP (KIT) | 75001- | |
| 8 | 01011-52015 | BOLT (KIT) | 75001- | |
| 9 | 01643-32060 | WASHER (KIT) | 75001- | |
| 10 | 101-904-1240 | NUT (KIT) | 75001- | |
| 11 | 104-Z40-3111 | TRUNNION | 75001- | |
| 12 | 01010-51445 | BOLT | 75001- | |
| 13 | 01602-21442 | WASHER,SPRING | 75001- | |
| 14 | 10G-71-22350 | SHAFT | 75001- | |
| 15 | 07020-00000 | FITTING,GREASE | 75001- | |
| 16 | 01010-50855 | BOLT | 75001- | |
| 17 | 01598-00809 | NUT | 75001- | |
| 18 | 101-71-12190 | ARM,ANGLE | 75001- | |
| 19 | 101-71-12420 | BOSS (WELDED) | 75001- | |
| 20 | 101-71-12220 | BOSS (WELDED) | 75001- | |
| 21 | 101-71-12210 | PIN | 75001- | |
| 22 | 101-71-12230 | COLLAR | 75001- | |
| 23 | 09245-50060 | HOOK (WELDED) | 75001- | |
| 24 | 09245-04815 | CHAIN | 75001- | |
| 25 | 101-71-12410 | PIN | 75001- | |
| 26 | 101-71-31171 | BRACE,TILT | 75001- | |
| 27 | 101-71-12250 | LEVER | 75001- | |
| 28 | 07020-00000 | FITTING,GREASE | 75001- | |
| 29 | 101-71-31151 | SCREW | 75001- | |
| 30 | 101-71-31160 | SCREW | 75001- | |
| 31 | 101-71-12260 | PIN | 75001- | |
| 32 | 01640-22845 | WASHER | 75001- | |
| 33 | 04050-06045 | PIN,COTTER | 75001- | |
| SERVICE KIT | ||||
| 101-71-00072 | PIVOT ASS'Y | 75001- | ||
| 4 | \6\ | BEARING | 75001- | |
| 7 | 100-93-21170 | CAP | 75001- | |
| 8 | 01011-52015 | BOLT | 75001- | |
| 9 | 01643-32060 | WASHER | 75001- | |
| 10 | 101-904-1240 | NUT | 75001- |
