| Item | Part No. | Part Name | Qty | Serial No. |

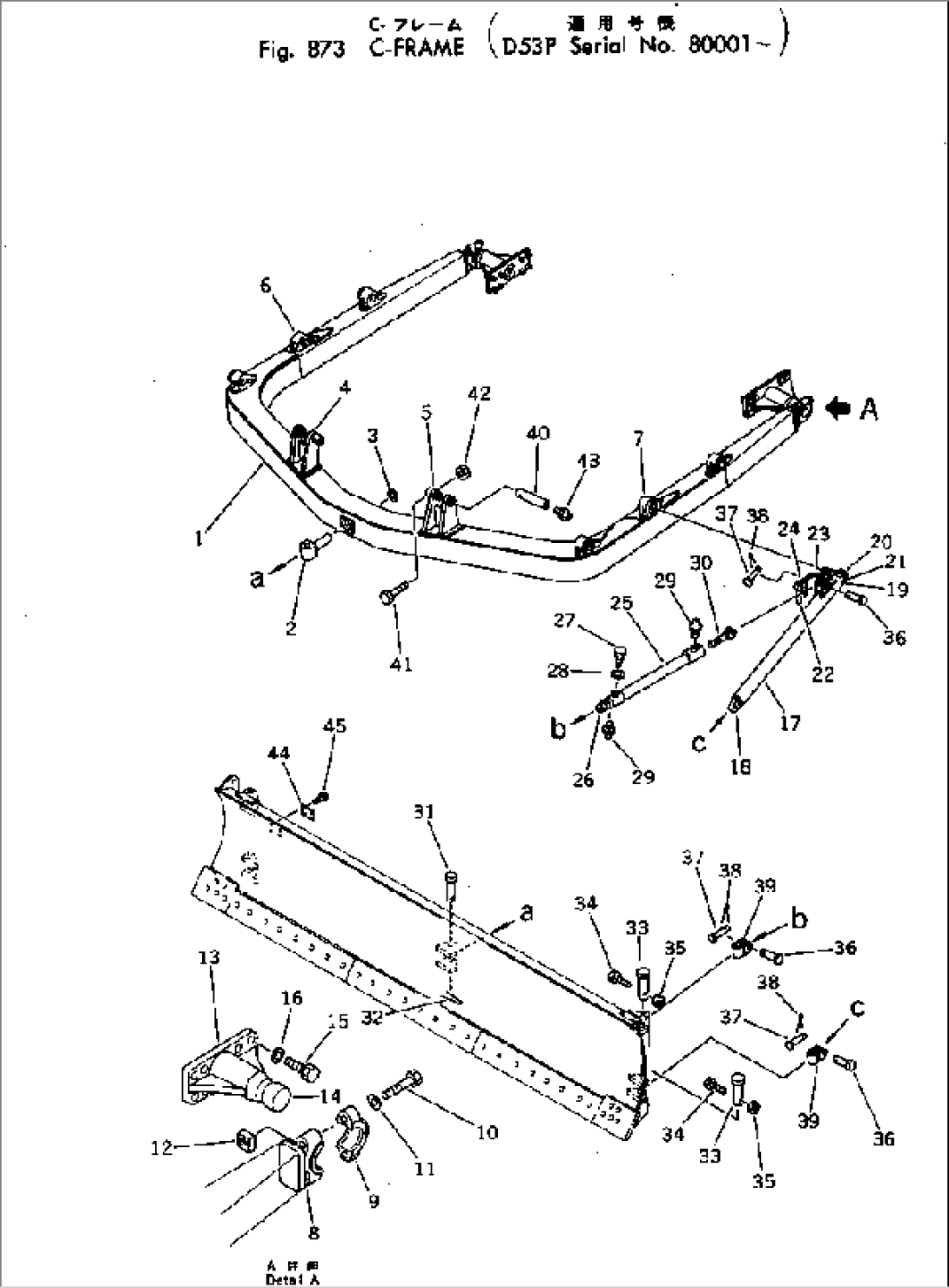

| 13F-Z26-0010 | FRAME ASS'Y | 80001- | ||
| 1 | \6\ | FRAME ASS'Y | 80001- | |
| 2 | 130-70-13125 | SHAFT | 80001- | |
| 3 | 130-70-13132 | COLLAR | 80001- | |
| 4 | 13F-Z26-1230 | BRACKET,R.H. (WELDED) | 80001- | |
| 5 | 13F-Z26-1220 | BRACKET,L.H. (WELDED) | 80001- | |
| 6 | 130-70-43220 | BRACKET,R.H. (WELDED) | 80001- | |
| 7 | 130-70-43210 | BRACKET,L.H. (WELDED) | 80001- | |
| 130-70-00072 | PIVOT ASS'Y | 80001- | ||
| 8 | \6\ | PIVOT (WELDED) | 80001- | |
| 9 | 130-70-13231 | CAP | 80001- | |
| 10 | 01011-82445 | BOLT | 80001- | |
| 11 | 01643-32460 | WASHER | 80001- | |
| 12 | 130-70-13241 | NUT | 80001- | |
| 13 | 13F-Z29-2220 | TRUNNION | 80001- | |
| 14 | 130-817-5830 | SHAFT (WELDED) | 80001- | |
| 15 | 01010-82045 | BOLT | 80001- | |
| 16 | 01643-32060 | WASHER | 80001- | |
| 17 | 130-70-62240 | ARM ASS'Y | 80001- | |
| 18 | 130-70-12150 | BOSS (WELDED) | 80001- | |
| 19 | 130-70-12160 | BOSS (WELDED) | 80001- | |
| 20 | 130-70-12170 | COLLAR (WELDED) | 80001- | |
| 21 | 130-70-12180 | PIN (WELDED) | 80001- | |
| 22 | 130-70-12190 | PIN | 80001- | |
| 23 | 09245-04830 | CHAIN | 80001- | |
| 24 | 09245-50060 | HOOK | 80001- | |
| 130-70-00311 | TILT BRACE ASS'Y | 81135- | ||
| 130-70-00310 | TILT BRACE ASS'Y | 80001-81134 | ||
| 25 | 130-70-62251 | BRACE | 81135- | |
| 25 | 130-70-62250 | BRACE | 80001-81134 | |
| 26 | 130-70-12250 | END | 80001- | |
| 27 | 130-70-52110 | SCREW | 80001- | |
| 28 | 01602-21442 | WASHER | 80001- | |
| 29 | 07020-00000 | FITTING | 80001- | |
| 30 | 124-70-21310 | SCREW | 81135- | |
| 30 | 130-70-12270 | SCREW | 80001-81134 | |
| 31 | 130-70-41120 | PIN | 80001- | |
| 32 | 04050-08070 | PIN | 80001- | |
| 33 | 130-70-62260 | PIN | 80001- | |
| 34 | 01010-81255 | BOLT | 80001- | |
| 35 | 01598-01214 | NUT | 80001- | |
| 36 | 130-70-12221 | PIN | 80001- | |
| 37 | 130-70-12231 | PIN | 80001- | |
| 38 | 04050-05030 | PIN | 80001- | |
| 39 | 130-70-12131 | JOINT | 80001- | |
| 40 | 130-817-5461 | SHAFT | 80001- | |
| 41 | 01010-81080 | BOLT | 80001- | |
| 42 | 01598-01011 | NUT | 80001- | |
| 43 | 07020-00000 | FITTING | 80001- | |
| 44 | 09601-00835 | PLATE, NAME,(LIMITED SUPPLY) | 80001- | |
| 45 | 04418-13060 | SCREW | 80001- |
