| Item | Part No. | Part Name | Qty | Serial No. |

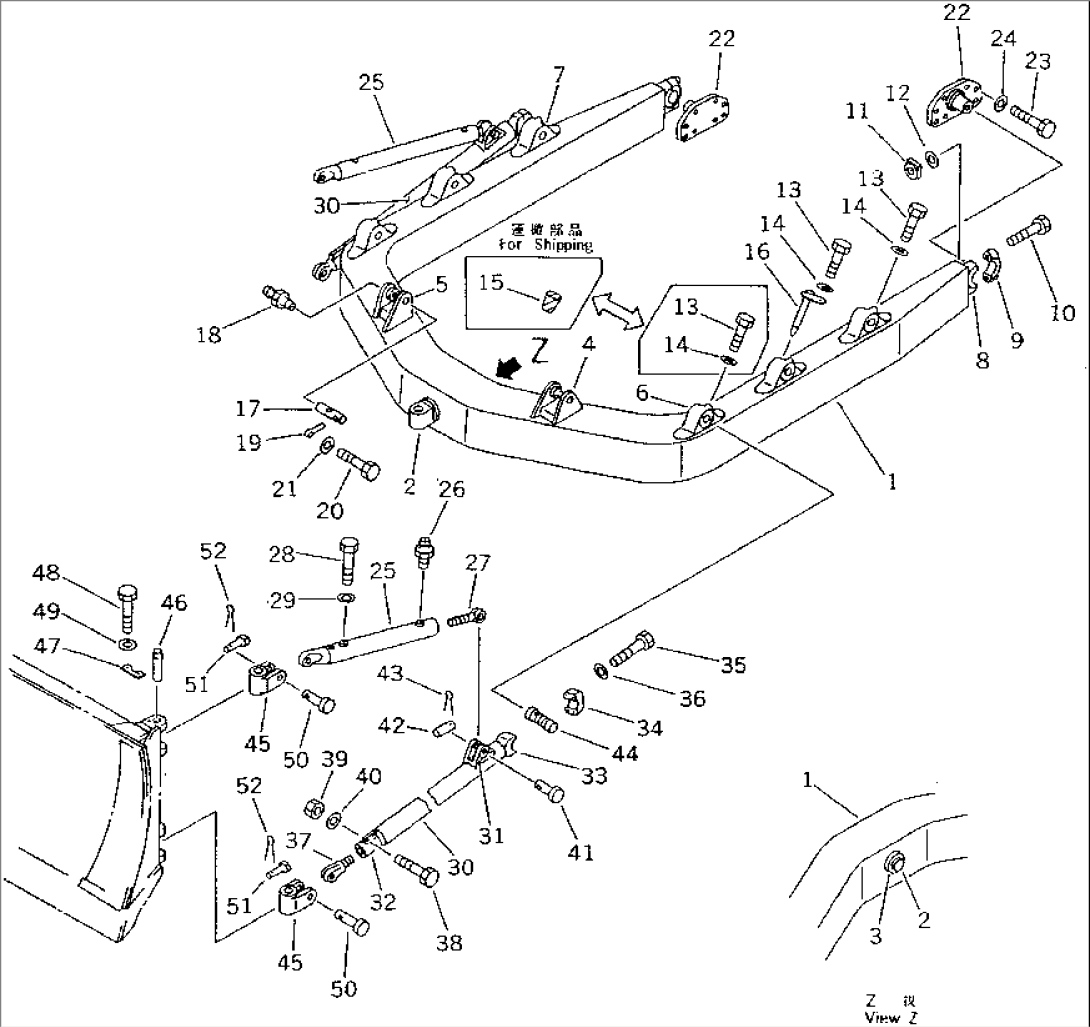

| G-1 | (\8\15A-70-X1400) | C-FRAME GROUP | 10301- | |
| ==================== | ||||
| 1 | 15A-70-11110 | C-FRAME | 10301- | |
| 2 | 175-70-13313 | JOINT | 10301- | |
| 3 | 150-70-23320 | COLLAR (WELDED) | 10301- | |
| 4 | 15A-70-11120 | BRACKET,L.H. (WELDED) | 10301- | |
| 5 | 15A-70-11130 | BRACKET,R.H. (WELDED) | 10301- | |
| 6 | 175-70-23124 | BRACKET,L.H. (WELDED) | 10301- | |
| 7 | 175-70-23114 | BRACKET,R.H. (WELDED) | 10301- | |
| 8 | (\7\175-70-23261) | BRACKET (WELDED) | 10301- | |
| 9 | (\7\175-71-11482) | CAP | 10301- | |
| 10 | 175-71-11491 | BOLT | 10301- | |
| 11 | 175-71-11520 | NUT | 10301- | |
| 12 | 01643-32260 | WASHER | 10301- | |
| 13 | 01010-51420 | BOLT | 10301- | |
| 14 | 205-06-62270 | WASHER | 10301- | |
| ==================== | ||||
| 15 | 07049-02025 | PLUG | 10301- | |
| G-2 | (\8\15A-70-X1300) | PIN AND SHAFT GROUP | 10301- | |
| ==================== | ||||
| 16 | 154-70-19181 | PIN | 10301- | |
| ==================== | ||||
| G-3 | (\8\15A-70-X1600) | PIN AND SHAFT GROUP | 10301- | |
| ==================== | ||||
| 17 | (\7\175-71-11351) | SHAFT | 10301- | |
| 18 | 07020-00000 | FITTING,GREASE | 10301- | |
| 19 | 195-71-11520 | PIN | 10301- | |
| 20 | 01010-51435 | BOLT | 10301- | |
| 21 | 01643-31445 | WASHER | 10301- | |
| ==================== | ||||
| G-4 | (\8\15A-70-X1500) | TRUNNION GROUP | 10301- | |
| ==================== | ||||
| 22 | 175-70-23133 | TRUNNION | 10301- | |
| 175-70-23293 | BALL,STUD (WELDED) | 10301- | ||
| 23 | 01010-52450 | BOLT | 10301- | |
| 24 | 01643-32460 | WASHER | 10301- | |
| ==================== | ||||
| G-5 | (\8\15A-70-X1200) | ARM AND BRACE GROUP | 10301- | |
| ==================== | ||||
| 175-70-00523 | BRACE ASS'Y | 10301- | ||
| 25 | (\7\175-70-22224) | BRACE | 10301- | |
| 26 | 07020-00000 | FITTING,GREASE | 10301- | |
| 27 | 175-70-22190 | SCREW | 10301- | |
| 28 | 175-70-12221 | SCREW,SET | 10301- | |
| 29 | 01643-31445 | WASHER | 10301- | |
| 175-70-00514 | ARM ASS'Y | 10301- | ||
| 30 | (\7\175-70-22215) | ARM | 10301- | |
| 31 | 175-70-22110 | BRACKET (WELDED) | 10301- | |
| 32 | 175-70-22130 | BOSS (WELDED) | 10301- | |
| 175-70-00593 | CAP ASS'Y | 10301- | ||
| 33 | (\7\175-70-22120) | BRACKET (WELDED) | 10301- | |
| 34 | (\7\175-70-22151) | CAP | 10301- | |
| 35 | 01010-52095 | BOLT | 10301- | |
| 36 | 01643-32060 | WASHER | 10301- | |
| 37 | 175-70-22160 | JOINT | 10301- | |
| 38 | 01010-51880 | BOLT | 10301- | |
| 39 | 01580-01815 | NUT | 10301- | |
| 40 | 01643-31845 | WASHER | 10301- | |
| 41 | 150-70-13411 | PIN | 10301- | |
| 42 | 170-70-12240 | PIN | 10301- | |
| 43 | 04050-14025 | PIN,COTTER | 10301- | |
| 44 | 175-70-22141 | SHAFT | 10301- | |
| 45 | 175-70-23180 | JOINT | 10301- | |
| 46 | 09255-02215 | PIN | 10301- | |
| 47 | 195-70-12510 | PLATE,LOCK | 10301- | |
| 48 | 01010-51435 | BOLT | 10301- | |
| 49 | 01643-31445 | WASHER | 10301- | |
| 50 | 150-70-13411 | PIN | 10301- | |
| 51 | 170-70-12240 | PIN | 10301- | |
| 52 | 04050-14025 | PIN,COTTER | 10301- | |
| ==================== |
