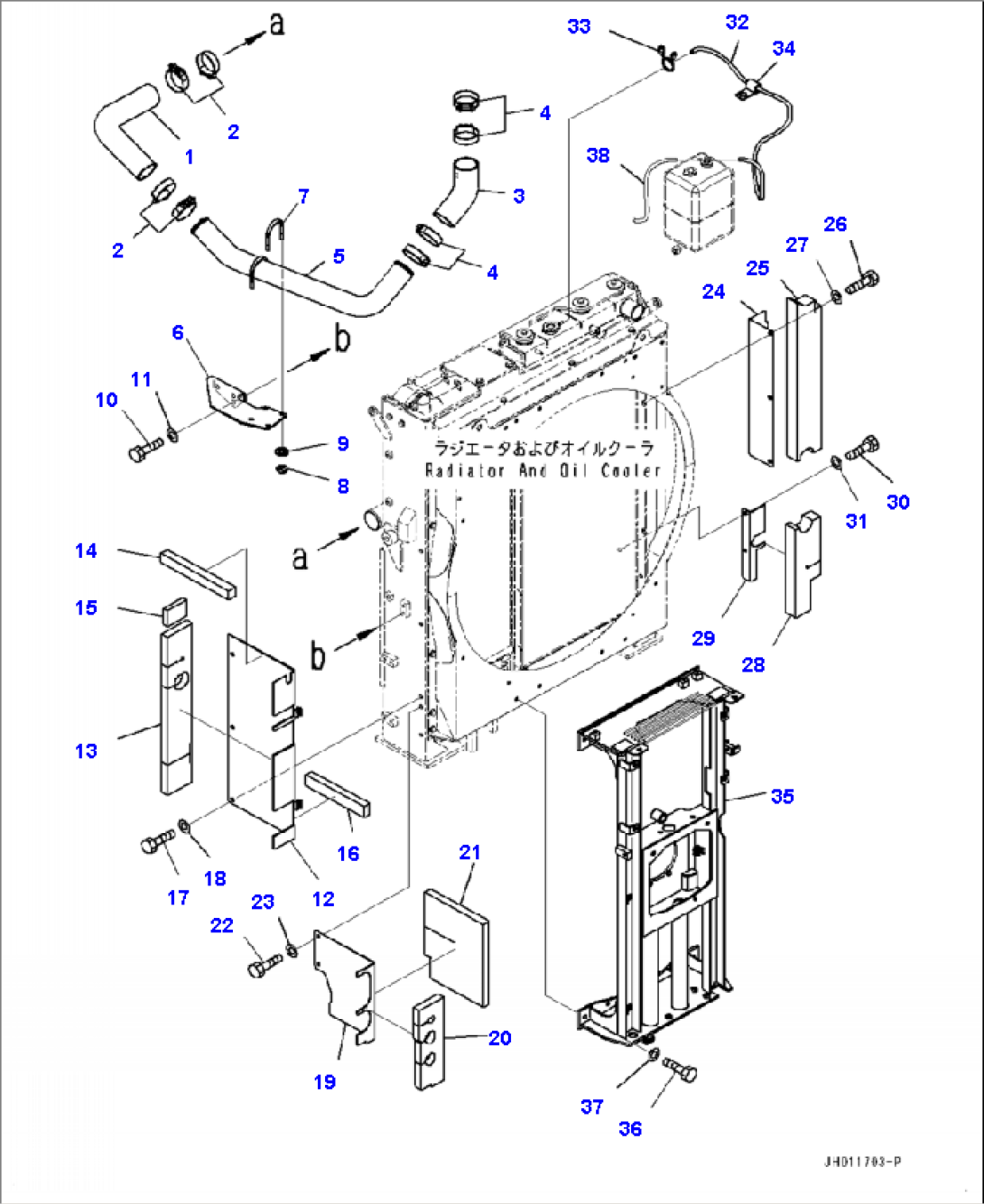

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-03-41441 | HOSE | ||
| 2 | 207-01-75340 | CLAMP | ||
| 3 | 208-03-41451 | HOSE | ||
| 4 | 207-01-75340 | CLAMP | ||
| 5 | 208-03-41470 | TUBE | ||
| 6 | 208-03-21490 | BRACKET | ||
| 7 | 07283-37663 | CLIP | ||
| 8 | 01597-01009 | NUT | ||
| 9 | 01643-31032 | WASHER | ||
| 10 | 01010-81230 | BOLT | ||
| 11 | 01643-31232 | WASHER | ||
| 12 | 208-03-21662 | COVER | ||
| 13 | 208-03-21691 | SEAL | ||
| 14 | 208-03-41671 | SEAL | ||
| 15 | 208-03-41681 | SEAL | ||
| 16 | 208-03-41710 | SEAL | ||
| 17 | 01010-81230 | BOLT | ||
| 18 | 01643-31232 | WASHER | ||
| 19 | 208-03-41721 | COVER | ||
| 20 | 208-03-41731 | SEAL | ||
| 21 | 208-03-41741 | SEAL | ||
| 22 | 01010-81230 | BOLT | ||
| 23 | 01643-31232 | WASHER | ||
| 24 | 208-03-41751 | COVER | ||
| 25 | 208-03-41761 | SEAL | ||
| 26 | 01010-81230 | BOLT | ||
| 27 | 01643-31232 | WASHER | ||
| 28 | 208-03-41770 | COVER | ||
| 29 | 208-03-41780 | SEAL | ||
| 30 | 01010-81230 | BOLT | ||
| 31 | 01643-31232 | WASHER | ||
| 32 | 20Y-03-42340 | HOSE | ||
| 33 | 206-03-43340 | CLIP | ||
| 34 | 04434-51212 | CLIP | ||
| 35 | 208-03-21510 | BRACKET | ||
| 36 | 01010-81240 | BOLT | ||
| 37 | 01643-31232 | WASHER | ||
| 38 | HOSE ASSEMBLY (SEE FIG. C0100-001014 ) |
