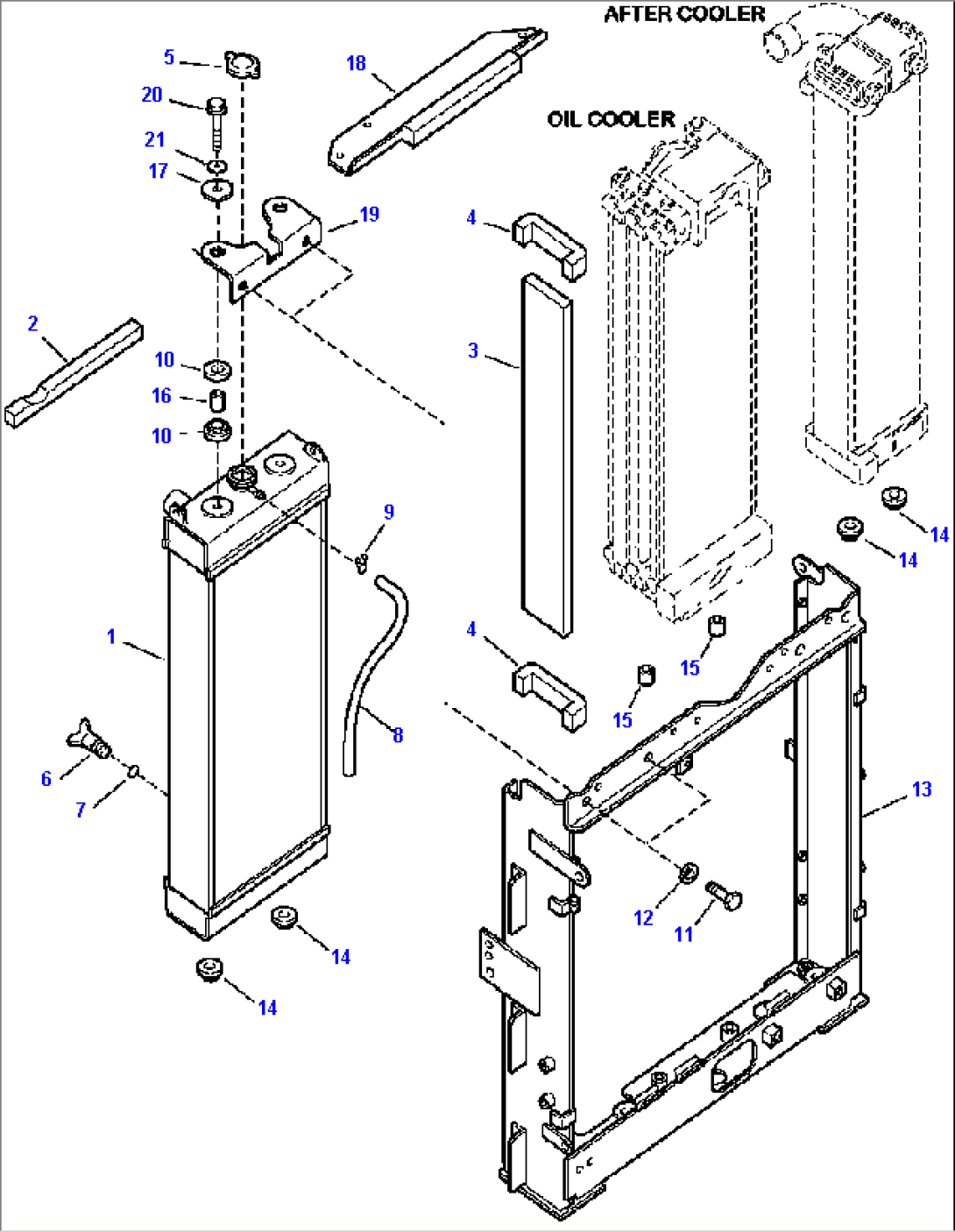

| Item | Part No. | Part Name | Qty | Serial No. |
| 20Y-03-A1311 | RADIATOR | |||
| 1 | 20Y-03-A1321 | RADIATOR CORE | ||
| 2 | 20Y-03-42650 | SHEET | ||
| 3 | 20Y-03-42270 | SHEET | ||
| 4 | 20Y-03-42160 | SHEET | ||
| 5 | 20Y-03-22110 | CAP | ||
| 6 | 205-03-62660 | PLUG | ||
| 7 | 07000-11007 | O-RING | ||
| 8 | 203-03-41410 | HOSE | ||
| 9 | 206-03-43340 | CLIP | ||
| 10 | 14X-03-51621 | CUSHION | ||
| 11 | 01010-81225 | BOLT | ||
| 12 | 01643-31232 | WASHER | ||
| 13 | 20Y-03-42511 | FRAME | ||
| 14 | 20Y-03-41580 | CUSHION | ||
| 15 | 20Y-03-41590 | CUSHION | ||
| 16 | 14X-03-51640 | SPACER | ||
| 17 | 14X-03-51770 | WASHER | ||
| 18 | 20Y-03-42180 | COVER | ||
| 19 | 20Y-03-42840 | BRACKET | ||
| 20 | 01010-81045 | BOLT | ||
| 21 | 01643-31032 | WASHER |
