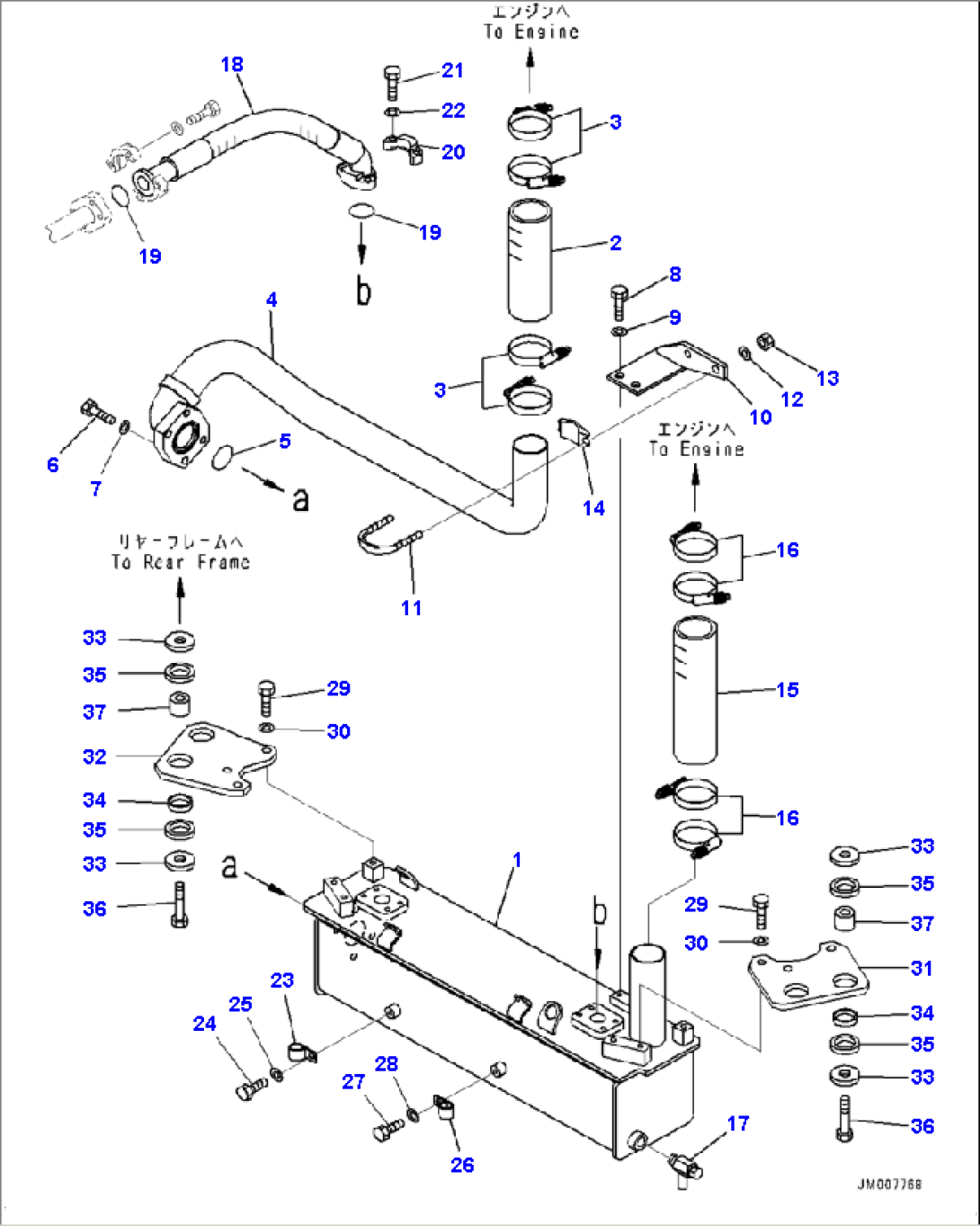

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-03-44110 | OIL COOLER | ||
| 2 | 07260-25822 | HOSE | ||
| 3 | 07299-00070 | CLAMP | ||
| 4 | 425-03-33741 | TUBE | ||
| 5 | 07000-12060 | O-RING | ||
| 6 | 01010-81240 | BOLT | ||
| 7 | 01643-31232 | WASHER | ||
| 8 | 01010-81025 | BOLT | ||
| 9 | 01643-31032 | WASHER | ||
| 10 | 425-03-33751 | BRACKET | ||
| 11 | 07283-36163 | CLIP | ||
| 12 | 01643-31032 | WASHER | ||
| 13 | 22P-70-12160 | NUT | ||
| 14 | 07283-56170 | SEAT, PIPE CLIP | ||
| 15 | 07260-25828 | HOSE | ||
| 16 | 07299-00070 | CLAMP | ||
| 17 | 07730-50004 | VALVE, DRAIN | ||
| 18 | 07278-012A6 | HOSE | ||
| 19 | 07000-A3038 | O-RING | ||
| 20 | 07371-31255 | FLANGE, SPLIT | ||
| 21 | 07372-21035 | BOLT | ||
| 22 | 01643-51032 | WASHER | ||
| 23 | 04434-51910 | CLIP | ||
| 24 | 01010-81016 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 04434-51910 | CLIP | ||
| 27 | 01010-81020 | BOLT | ||
| 28 | 01643-31032 | WASHER | ||
| 29 | 01010-81235 | BOLT | ||
| 30 | 01643-31232 | WASHER | ||
| 31 | 425-03-33721 | PLATE | ||
| 32 | 425-03-43770 | PLATE | ||
| 33 | 428-62-14610 | WASHER | ||
| 34 | 428-62-14590 | CUSHION | ||
| 35 | 428-62-14580 | CUSHION | ||
| 36 | 01010-81675 | BOLT | ||
| 37 | 428-62-14570 | SPACER |
