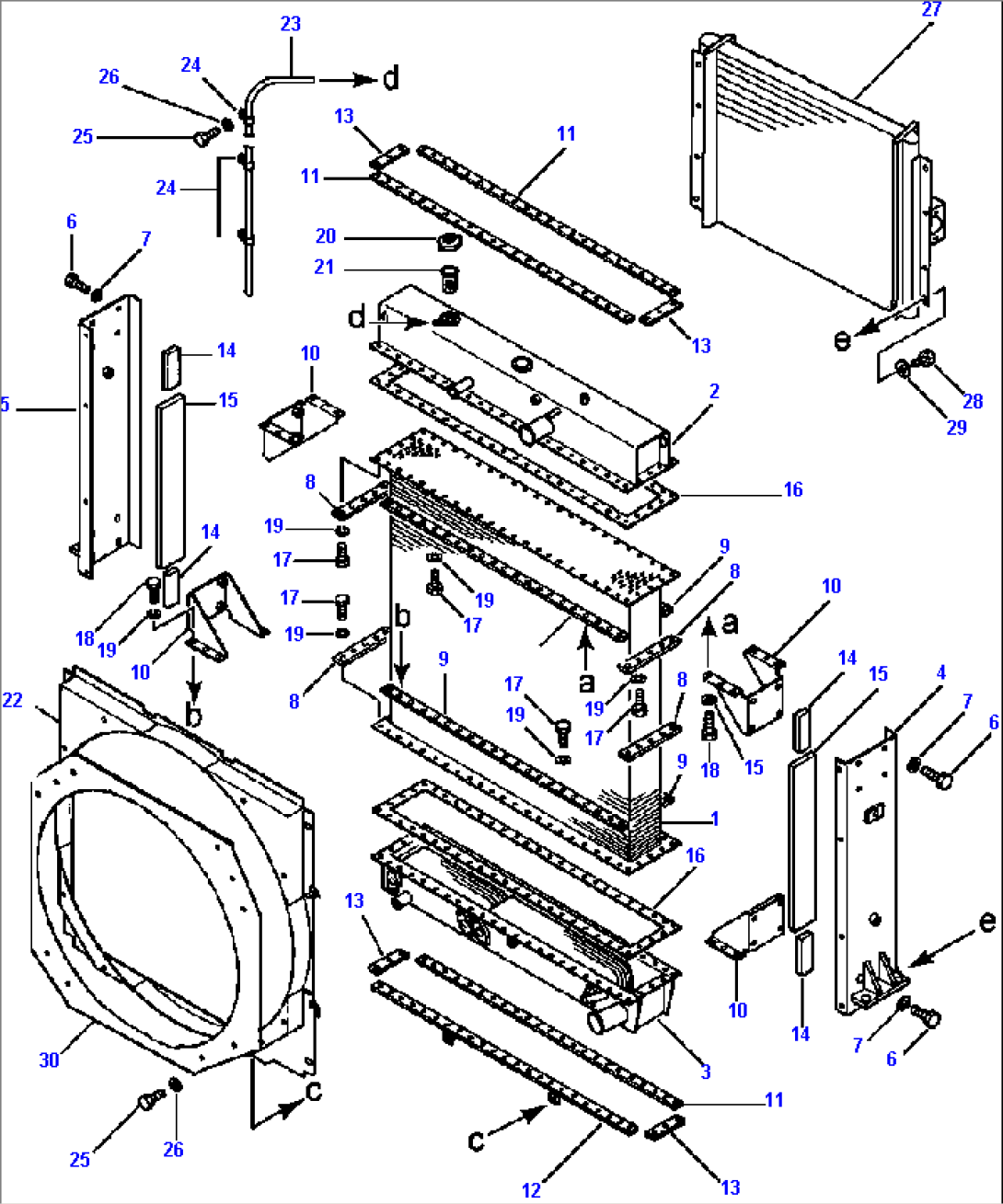

| Item | Part No. | Part Name | Qty | Serial No. |
| 425-03-21202 | RADIATOR ASSEMBLY | A70001 -- | ||
| 425-03-21510 | CORE ASSEMBLY | A70001 -- | ||
| 1 | 425-03-21510 | CORE | A70001 -- | |
| 2 | 425-03-21410 | TANK, UPPER | A70001 -- | |
| 3 | 425-03-21520 | TANK, LOWER (WITH OIL COOLER) | A70001 -- | |
| 4 | 425-03-21540 | SUPPORT, L.H. | A70001 -- | |
| 5 | 425-03-21530 | SUPPORT, R.H. | A70001 -- | |
| 6 | 01010-81225 | BOLT | A70001 -- | |
| 7 | 01643-31232 | WASHER, M12 | A70001 -- | |
| 8 | 425-03-11181 | PLATE | A70001 -- | |
| 9 | 425-03-11171 | PLATE | A70001 -- | |
| 10 | 425-03-21550 | BRACKET | A70001 -- | |
| 11 | 425-03-11340 | PLATE | A70001 -- | |
| 12 | 425-03-11290 | PLATE | A70001 -- | |
| 13 | 421-03-11260 | PLATE | A70001 -- | |
| 14 | 425-03-11350 | PACKING | A70001 -- | |
| 15 | 425-03-11360 | PACKING | A70001 -- | |
| 16 | 425-03-11192 | GASKET | A70001 -- | |
| 17 | 01010-81030 | BOLT | A70001 -- | |
| 18 | 01010-81035 | BOLT | A70001 -- | |
| 19 | 01602-21030 | WASHER, LOCK | A70001 -- | |
| 20 | 421-03-11461 | CAP, RADIATOR | A70001 -- | |
| 21 | 101-03-13160 | STRAINER | A70001 -- | |
| 22 | 425-03-21560 | SHROUD | A70001 -- | |
| 23 | 425-03-11370 | HOSE, OVERFLOW | A70001 -- | |
| 24 | 232-03-11210 | CLIP | A70001 -- | |
| 25 | 01010-81025 | BOLT | A70001 -- | |
| 26 | 01643-31032 | WASHER | A70001 -- | |
| 27 | 425-03-11410 | COOLER, OIL | A70001 -- | |
| 28 | 01010-81020 | BOLT | A70001 -- | |
| 29 | 01643-31032 | WASHER | A70001 -- | |
| 30 | 425-03-A2560 | PLATE | A70001 -- |
