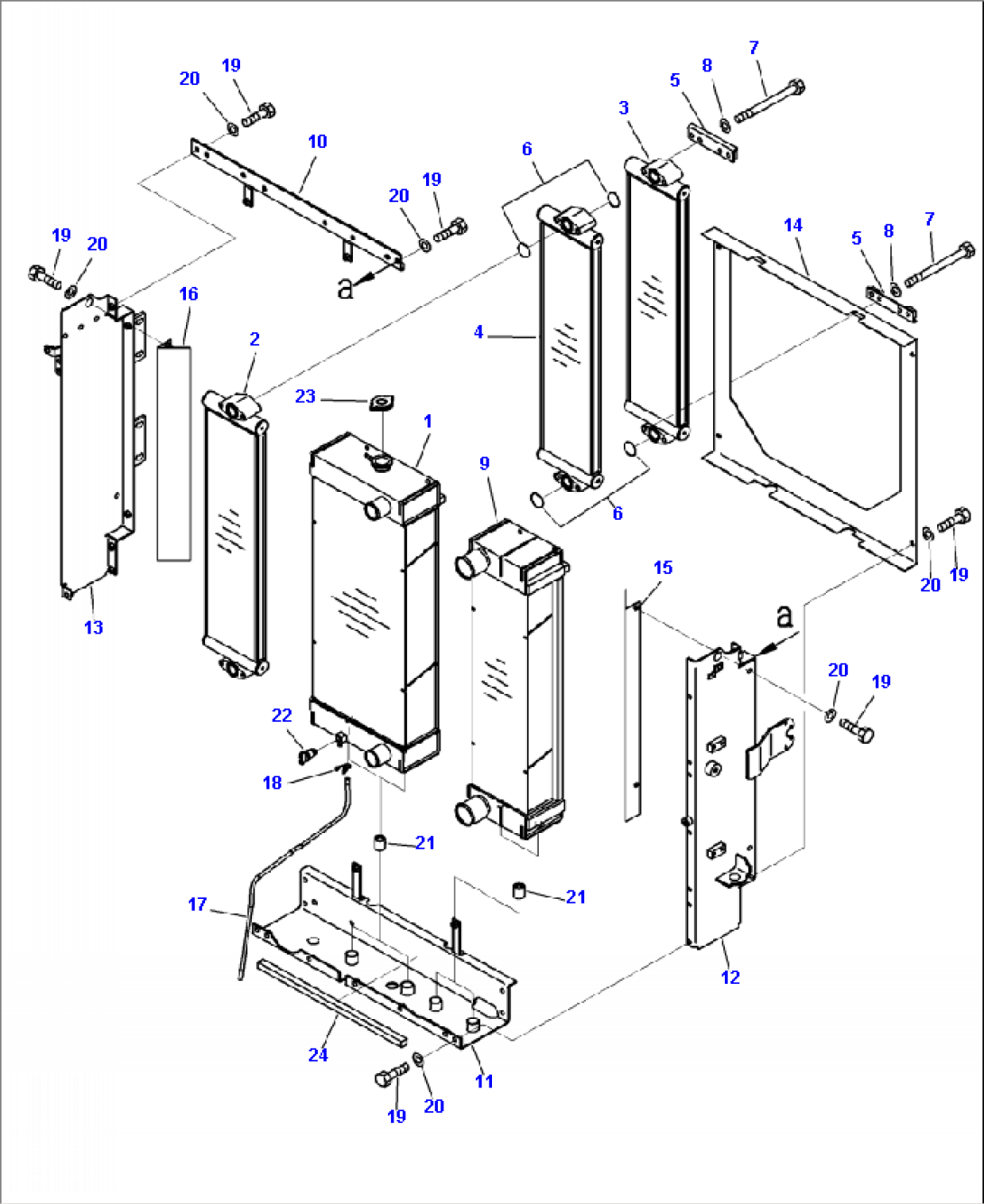

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-03-48102 | RADIATOR ASSEMBLY | A76001-- | ||
| 1 | 418-03-48151 | RADIATOR | A76001-- | |
| N/I | 418-03-48162 | OIL COOLER | A76001-- | |
| 2 | 418-03-48260 | OIL COOLER | A76001-- | |
| 3 | 418-03-48270 | OIL COOLER | A76001-- | |
| 4 | 418-03-48280 | OIL COOLER | A76001-- | |
| 5 | 419-03-31531 | PLATE | A76001-- | |
| 6 | 07000-13035 | RING | A76001-- | |
| 7 | 01011-81045 | BOLT | A76001-- | |
| 8 | 01643-31032 | WASHER | A76001-- | |
| 9 | 418-03-48171 | AFTERCOOLER | A76001-- | |
| 10 | 418-03-41410 | PLATE | A76001-- | |
| 11 | 418-03-48111 | FRAME | A76001-- | |
| 12 | 418-03-48132 | FRAME | A76001-- | |
| 13 | 418-03-48122 | FRAME | A76001-- | |
| 14 | 418-03-41450 | SHROUD | A76001-- | |
| 15 | 419-03-31460 | PLATE | A76001-- | |
| 16 | 419-03-31470 | PLATE | A76001-- | |
| 17 | 418-03-31570 | HOSE, 750 MM | A76001-- | |
| 18 | 20Y-03-11330 | CLIP | A76001-- | |
| 19 | 01010-81020 | BOLT | A76001-- | |
| 20 | 01643-31032 | WASHER | A76001-- | |
| 21 | 22B-03-12620 | CUSHION | A76001-- | |
| 22 | 205-03-62660 | PLUG | A76001-- | |
| N/I | 07000-11007 | O-RING | A76001-- | |
| 23 | 416-S14-2270 | CAP | A76001-- | |
| 24 | 418-03-41360 | RUBBER | A76001-- |
